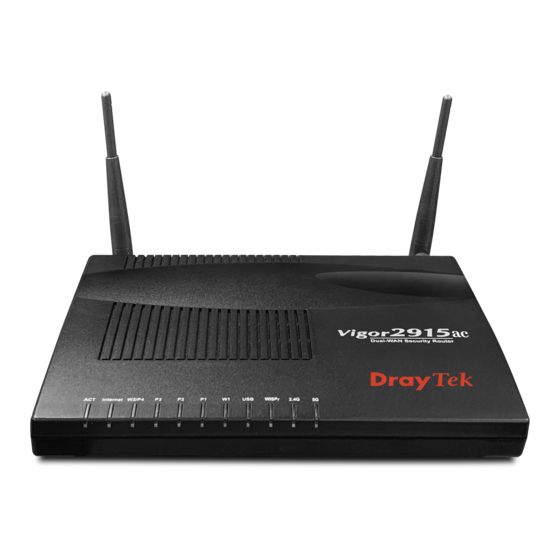

Draytek Vigor2915 Series Quick Start Manual
Dual-wan security router
Hide thumbs
Also See for Vigor2915 Series:
- Quick start manual (25 pages) ,
- Quick start manual (25 pages) ,
- Quick start manual (3 pages)
Related Manuals for Draytek Vigor2915 Series
Summary of Contents for Draytek Vigor2915 Series
- Page 1 Vigor2915 Series Dual-WAN Security Router Quick Start Guide (For Wired Model) Version:1.3 Firmware Version: V4.4.2.1 (For future update, please visit DrayTek web site) Date: December 25, 2023...
- Page 2 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
- Page 3 EU Declaration of Conformity Hereby, DrayTek Corporation declares that the equipment type Vigor2915 is in compliance with EU EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://fw.draytek.com.tw/Vigor2915/Document/CE/...
- Page 4 86.4% 85.4% 85.4% 84.7% 87.7% load 10% No-load power 0.07W 0.07W 0.07W 0.07W 0.07W 0.07W 0.10W 0.07W 0.10W 0.10W 0.08W 0.10W consumpt *The external power supply used for each product will be model dependent. For more update, please visit www.draytek.com.
-
Page 5: Table Of Contents
1. Package Content ....................1 2. Panel Explanation....................2 2.1 Vigor2915 ........................... 2 3. Hardware Installation ................... 4 3.1 Network Connection ........................4 3.2 Wall-Mounted Installation ......................5 4. Software Configuration ..................6 5. Customer Service ....................12 viii... -
Page 6: Package Content
Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor router Quick Start Guide RJ-45 Cat-5 Ethernet Cable The type of the power adapter depends on the country that the router will be installed. -
Page 7: Panel Explanation
Status Explanation Blinking The router is powered on and running normally. The router is powered off. Internet Internet connection is ready. Internet connection is not ready. Blinking The data is transmitting. W2/P4 The WAN/LAN port is connected. The WAN/LAN port is disconnected. Blinking The data is transmitting. - Page 8 Interface Description Connector for a power cord. ON/OFF Power Switch. Connector for a USB device (for 3G/4G USB Modem or printer or Environmental Thermometer). Connecter for local network devices or modem for accessing Internet. P1~P3 Connecters for local network devices. W2/P4 The function of this connector is adjustable and controlled by web user interface.
-
Page 9: Hardware Installation
This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router (taking Vigor2915 for example), you have to connect your devices correctly. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45). -
Page 10: Wall-Mounted Installation
Vigor router has keyhole type mounting slots on the underside. A template is provided on the Vigor router packaging box to enable you to space the screws correctly on the wall. Place the template on the wall and drill the holes according to the recommended instruction. -
Page 11: Software Configuration
To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly. - Page 12 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. Enter the login password on the field of New Password and retype it on the field of Confirm Password.
- Page 13 On the next page as shown below, please select the WAN interface that you use. Then click Next for next step. WAN1 (Ethernet) and WAN2 (Ethernet) will bring up different configuration page. Here we take WAN1 (Ethernet) as an example. After choosing WAN1, please specify physical type.
- Page 14 Click PPPoE as the Internet Access Type. Then click Next to continue. Please manually enter the Username/Password provided by your ISP. Click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.
- Page 15 Choose WAN1 as WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click DHCP as the Internet Access type. Simply click Next to continue.
- Page 16 After finished the settings above, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
-
Page 17: Customer Service
If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Be a Registered Owner Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com.
