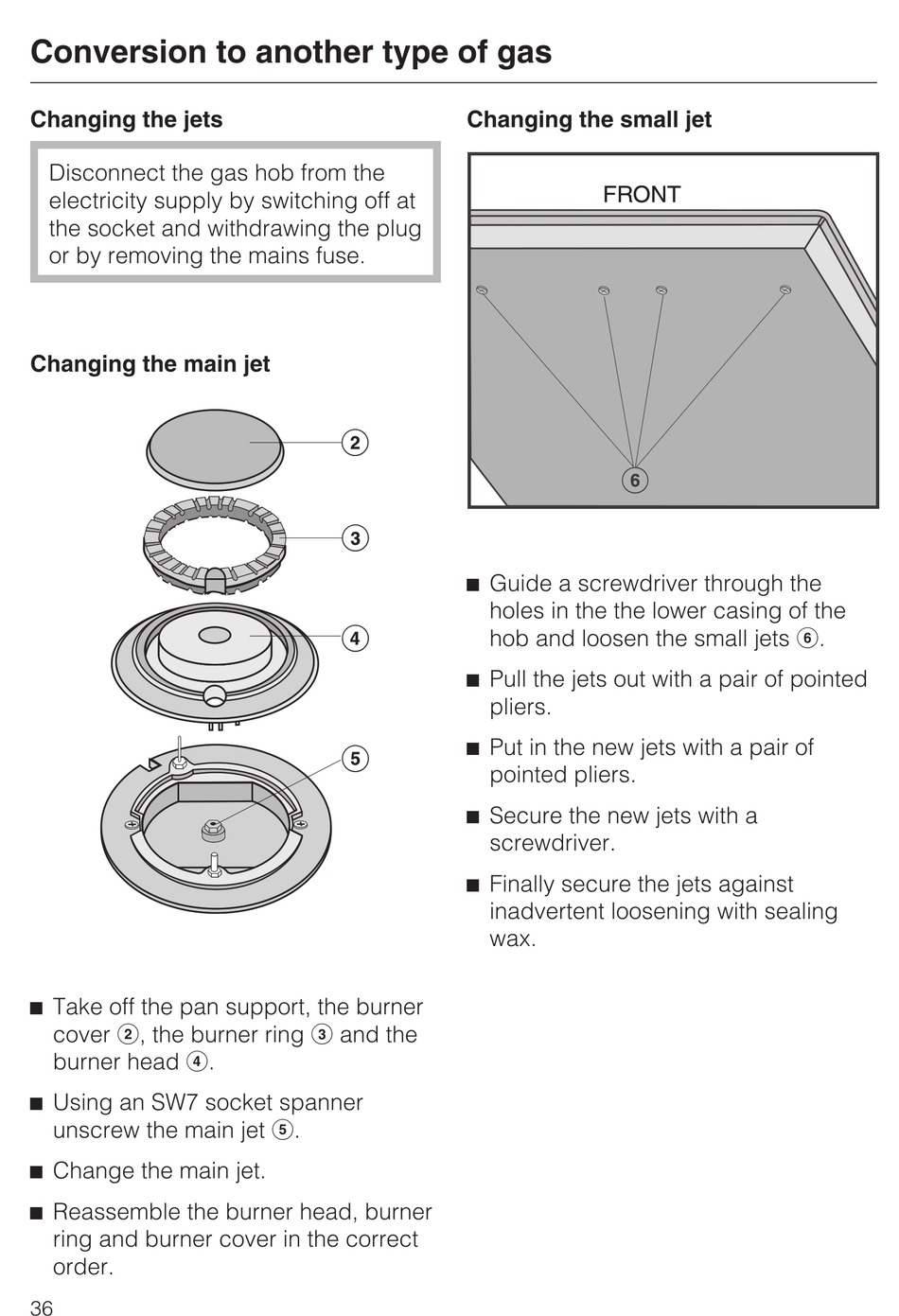

Conversion to another type of gas

Changing the jets

Disconnect the gas hob from the
electricity supply by switching off at
the socket and withdrawing the plug
or by removing the mains fuse.
Changing the main jet
^ Take off the pan support, the burner
cover b, the burner ring c and the
burner head d.
^ Using an SW7 socket spanner
unscrew the main jet e.
^ Change the main jet.
^ Reassemble the burner head, burner
ring and burner cover in the correct
order.
36
Changing the small jet
^ Guide a screwdriver through the
holes in the the lower casing of the
hob and loosen the small jets f.
^ Pull the jets out with a pair of pointed
pliers.
^ Put in the new jets with a pair of
pointed pliers.
^ Secure the new jets with a
screwdriver.
^ Finally secure the jets against
inadvertent loosening with sealing
wax.
