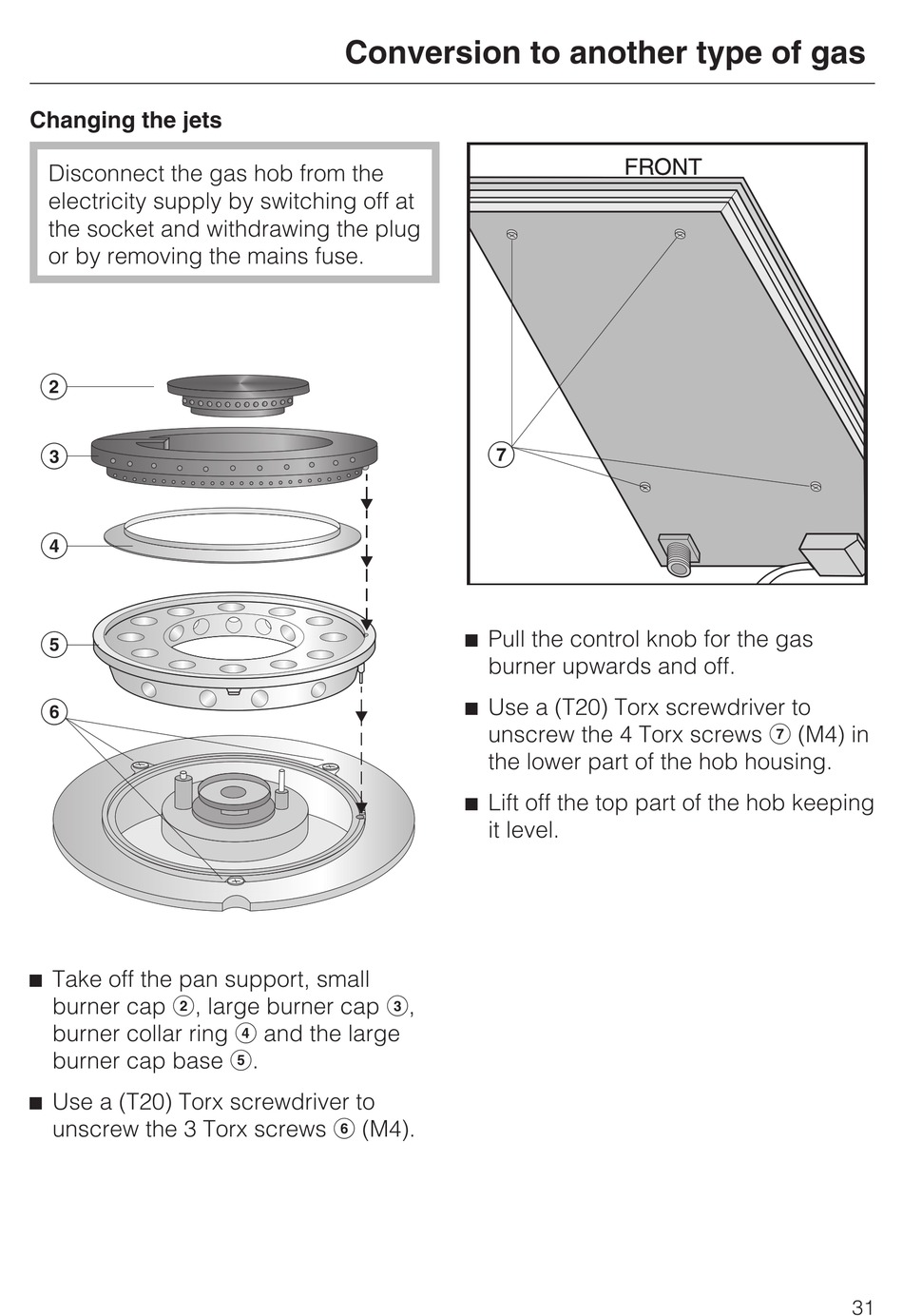

Changing the jets

Disconnect the gas hob from the
electricity supply by switching off at
the socket and withdrawing the plug
or by removing the mains fuse.
c
d
e
f
g
^ Take off the pan support, small
burner cap b, large burner cap c,
burner collar ring d and the large
burner cap base e.
^ Use a (T20) Torx screwdriver to
unscrew the 3 Torx screws f (M4).
Conversion to another type of gas
^ Pull the control knob for the gas
burner upwards and off.
^ Use a (T20) Torx screwdriver to
unscrew the 4 Torx screws g (M4) in
the lower part of the hob housing.
^ Lift off the top part of the hob keeping
it level.
31
