KM 404 / KM 405 / KM 406
a Connection with test nipple
specifically for GB
KM 414 / KM 417
1/2"-ISO 7-1 DIN 2999
28
b
a Connection with test nipple
specifically for GB
FRONT
FRONT
256

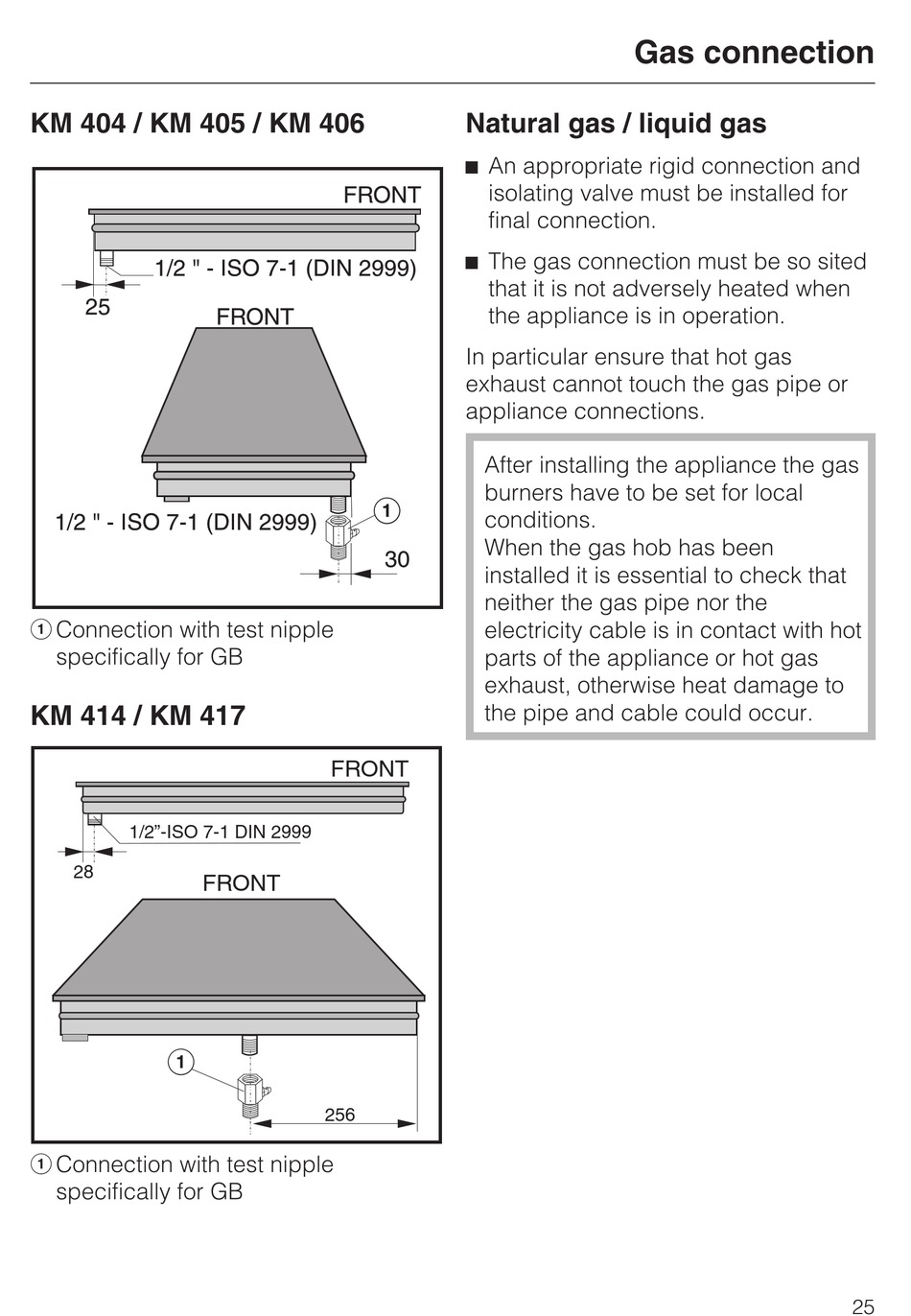

Gas connection

Natural gas / liquid gas

^ An appropriate rigid connection and
isolating valve must be installed for
final connection.
^ The gas connection must be so sited
that it is not adversely heated when
the appliance is in operation.
In particular ensure that hot gas
exhaust cannot touch the gas pipe or
appliance connections.
After installing the appliance the gas
burners have to be set for local
conditions.
When the gas hob has been
installed it is essential to check that
neither the gas pipe nor the
electricity cable is in contact with hot
parts of the appliance or hot gas
exhaust, otherwise heat damage to
the pipe and cable could occur.
25
