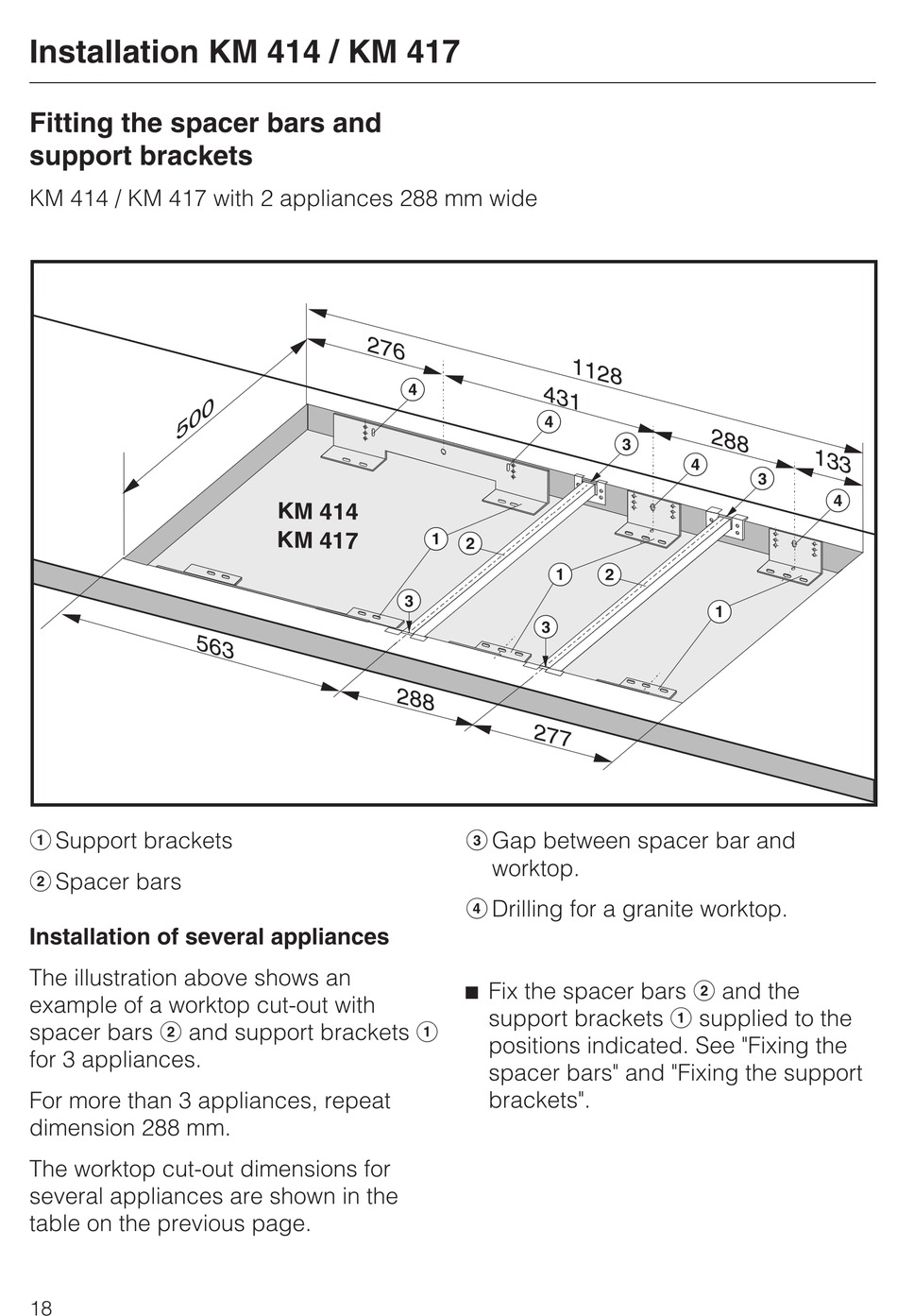

Installation KM 414 / KM 417

Fitting the spacer bars and
support brackets
KM 414 / KM 417 with 2 appliances 288 mm wide
5 0
5 6 3
a Support brackets
b Spacer bars
Installation of several appliances
The illustration above shows an
example of a worktop cut-out with
spacer bars b and support brackets a
for 3 appliances.
For more than 3 appliances, repeat
dimension 288 mm.
The worktop cut-out dimensions for
several appliances are shown in the
table on the previous page.
18
2 7 6
0
KM 41 4
KM 41 7
e
4 3 1
e
b
c
b
d
d
2 8 8
2 7 7
c Gap between spacer bar and
worktop.
d Drilling for a granite worktop.
^ Fix the spacer bars b and the
support brackets a supplied to the
positions indicated. See "Fixing the
spacer bars" and "Fixing the support
brackets".
1 1 2 8
2 8 8
d
e
c
b
1 3 3
d
e
