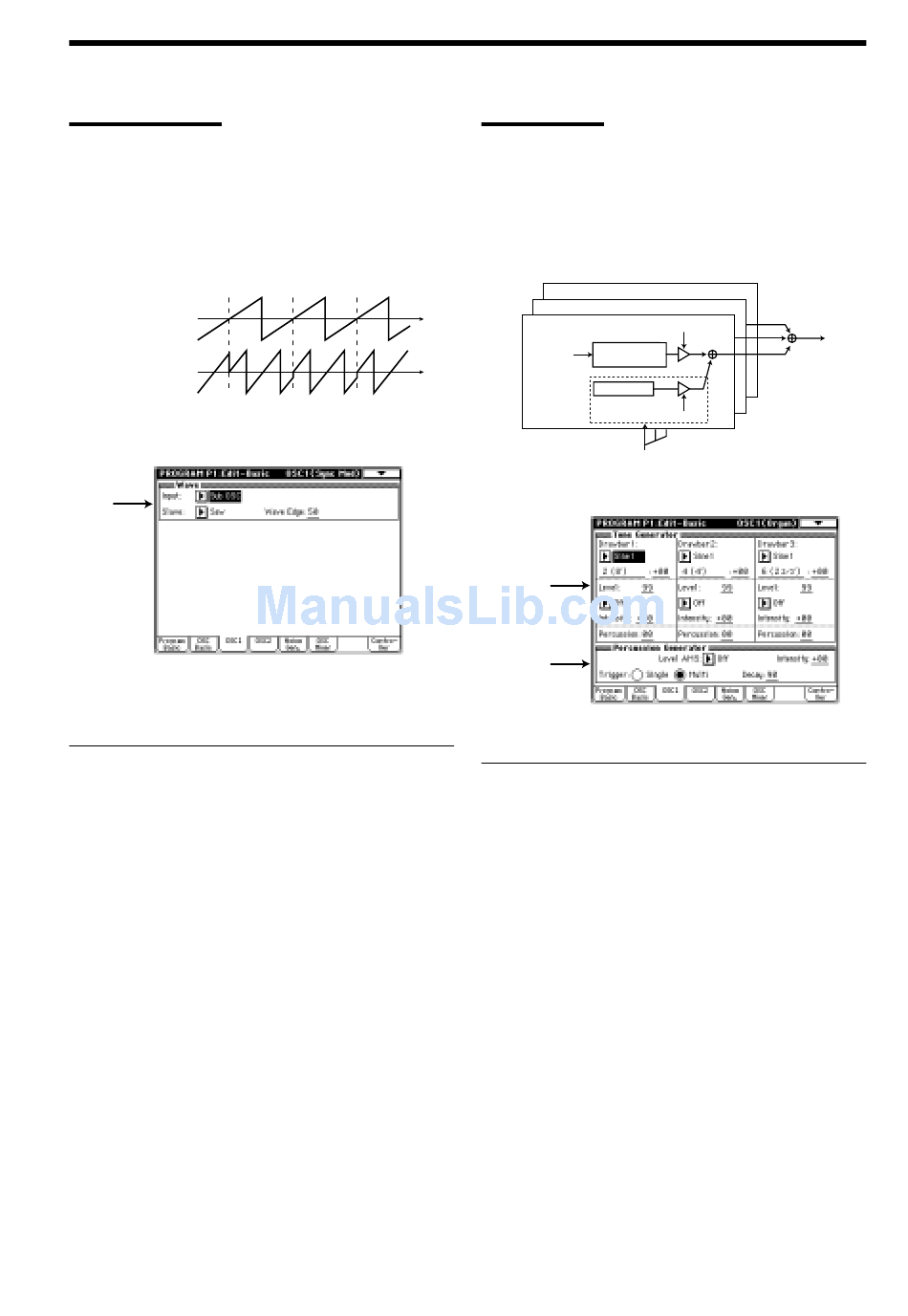

Sync Modulation
This uses the modulator as the master waveform and
the carrier as the slave waveform (which will be
synchronized to the master).
When the master waveform begins a new cycle (i.e.,
the instant that it passes the zero point going from
negative to positive), the phase of the slave waveform
is reset to 0, causing it to begin a new cycle.
Sync Modulation
Modulator Wave
(Master)
Carrier Wave
(Slave)
1–3a
1–3a: Wave
Input [OSC2(1), Sub OSC, Noise, Filter1, Filter2]
Specifies the master waveform (modulator).
Slave [Saw, Square, Triangle, Sine]
Specifies the slave waveform.
Wave Edge
Specifies the amount of high frequency harmonics for
the slave waveform. As this value is decreased, the
sound will have less high-frequency harmonics, and as
it approaches 0 the volume will also decrease.
Organ Model
This is an oscillator used to produce organ-type
sounds. The oscillator simulates three drawbars
similar to electric organs of the past.
You can specify the footage [Harmo] and waveform
setting for each drawbar, allowing a wide range of
sounds to be created.
Drawbar3
Drawbar2
Drawbar1
Harmonics
(Pitch)
1–3a
1–3b
1–3a: Tone Generator
Drawbar1:
Wave
Specifies the waveform for drawbar 1. Sine 1 contains
only the fundamental (i.e., a pure sine wave). Sine 2
[0...99]
and Sine 3 are waveforms which contain the first two
and the first three harmonics respectively.
Coarse (Harmonics Coarse)
Specifies the pitch of drawbar 1, relative to one octave
below the oscillator pitch.
Fine (Harmonics Coarse Fine)
Makes fine adjustments to the pitch of drawbar 1.
Level
Specifies the volume level of drawbar 1.
AMS (Alternate Modulation Source)
Selects a modulation source ( p.48 of this manual)
that will control the "Level" of drawbar 1.
Level
Wave
Sine1 or Sine2
/Sine3/Triangle
Precussion
Percussion Level
Precussion
Decay/Level Mod.
[Sine 1, Sine 2, Sine 3, Triangle]
[1(16')...16(1')]
[Off...MIDI:CC#83]
[–99...+99]
[0...99]
