Function Display - Icom IC-F110 Instruction Manual

t DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desred functons can be programmed ndependently by
your dealer.
y MICROPHONE CONNECTOR
Connect the suppled or optonal mcrophone.
NEVER connect non-specfied mcrophones. The pn
assgnments may be dfferent and the transcever may
be damaged.
D MICROPHONE
The suppled or optonal mcrophone has a PTT swtch and
a hanger hook.
• The followng functons are avalable when the mcrophone s on or
off hook:
- Automatc scan start when on hook.
- Automatc prorty channel selecton when off hook.
- Sets to 'Inaudble' condton (mute condton) when on hook.
- Sets to 'Audble' condton (unmute condton) when off hook.

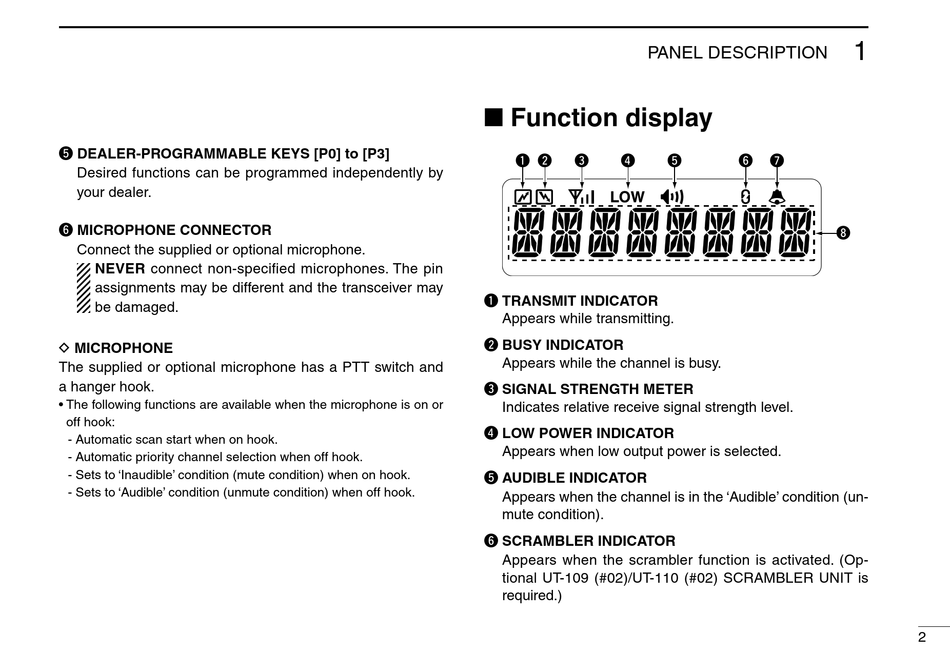

PANEL DESCRIPTION

■ Function display

q w e r
q TRANSMIT INDICATOR
Appears whle transmttng.
w BUSY INDICATOR
Appears whle the channel s busy.
e SIGNAL STRENGTH METER
Indcates relatve receve sgnal strength level.
r LOW POWER INDICATOR
Appears when low output power s selected.
t AUDIBLE INDICATOR
Appears when the channel s n the 'Audble' condton (un-
mute condton).
y SCRAMBLER INDICATOR
Appears when the scrambler functon s actvated. (Op-
tonal UT-109 (#02)/UT-110 (#02) SCRAMBLER UNIT s
requred.)
t y u
i
1
2
