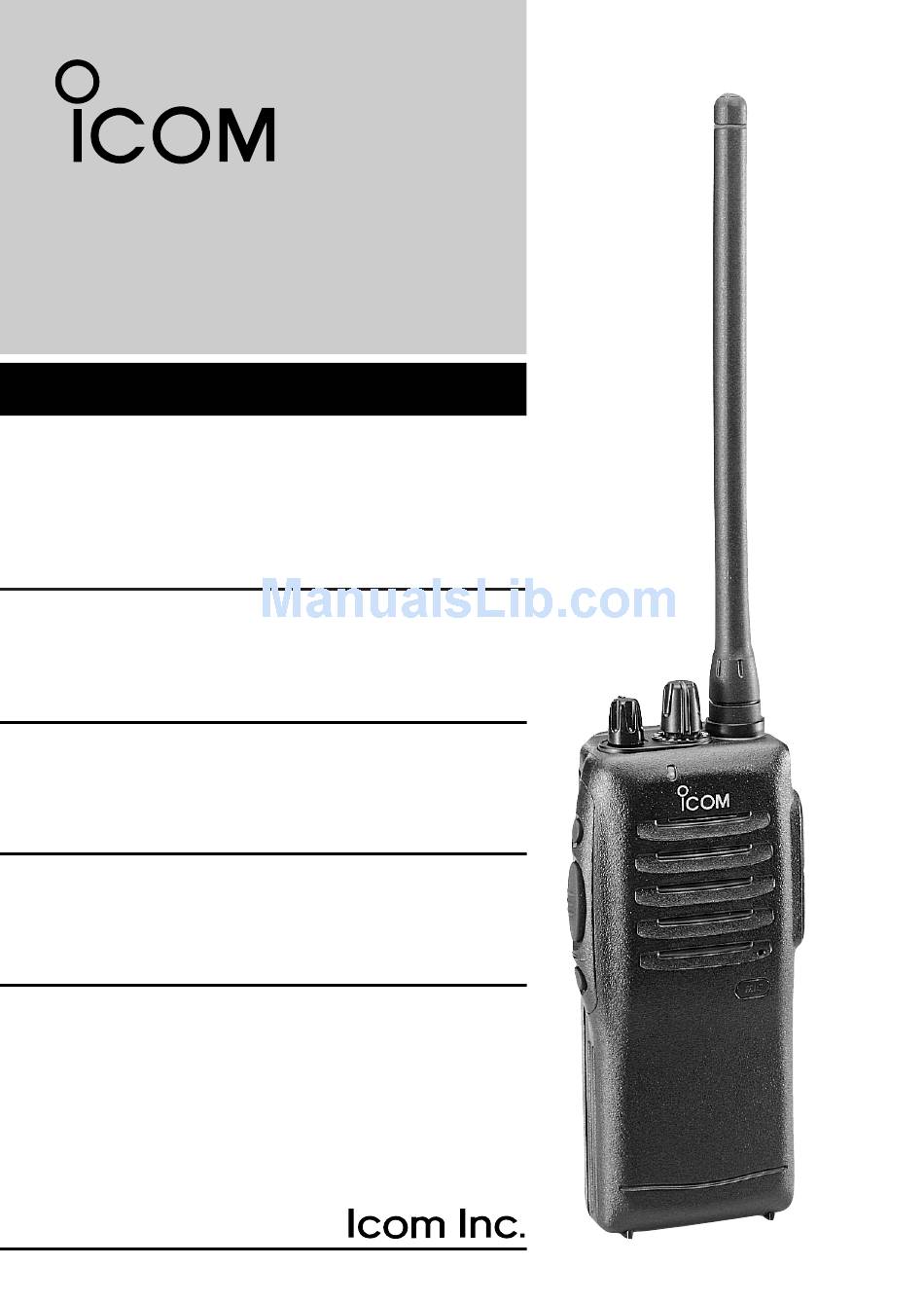

- Page 1 INSTRUCTION MANUAL VHF TRANSCEIVER iF11/S UHF TRANSCEIVER iF21/S This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.
-
Page 2: Safety Training Information
This radio has been tested and complies with the FCC RF expo- sure limits for “Occupational Use Only.” In addition, your Icom radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: •... - Page 3 • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clips, listed in p. 21, when attaching the radio to your belt, etc., to ensure FCC RF ex- posure compliance requirements are not exceeded.
-
Page 4: Foreword
The use of non-Icom battery packs/chargers may impair transceiver performance and invalidate the warranty. FCC caution: Changes or modifications to this transceiver, not expressly approved by Icom Inc., could void your authority to op- erate this transceiver under FCC regulations. -
Page 5: Table Of Contents
TABLE OF CONTENTS SAFETY TRAINING INFORMATION ………………………………… i–ii FOREWORD ……………………………………………………………… iii IMPORTANT ……………………………………………………………… iii TABLE OF CONTENTS ………………………………………………… iv 1 PANEL DESCRIPTION …………………………………………… 1–3 ‘ Switches, controls, keys and connectors ……………………… 1–2 ‘ LED indicator ………………………………………………………… 3 2 ACCESSORIES………………………………………………………… 4 3 BATTERY PACKS …………………………………………………... -
Page 6: Panel Description
PANEL DESCRIPTION ‘ ‘ Switches, controls, keys and connectors 2CH version 16CH version CH1↔CH2 CH1 to CH16 Speaker... - Page 7 VOLUME CONTROL [OFF/VOL] Turns power ON and adjusts the audio level. e DEALER-PROGRAMMABLE KEY [Upper] Can be programmed for one of several functions by your Icom dealer. r PTT SWITCH [PTT] Push and hold to transmit; release to receive.
-
Page 8: Led Indicator
PANEL DESCRIPTION ‘ ‘ LED indicator The TX/RX indicator LED indicates several more information as follows; (Ref.; R=Red, G=Green, O=Orange) • TX: Turns Red while transmitting a signal. • RX: Turns Green while receiving a signal. • Call LED (ON): When receiving a matched 2/5TONE. •... -
Page 9: Accessories
ACCESSORIES ‘ ‘ Accessory attachment D Supplied accessories The transceiver comes supplied with the following accessories. q Flexible antenna w Belt clip (w/screws) D Antenna The antenna screws onto the transceiver as illustrated right. D Belt clip Attach the belt clip to the transceiver as illustrated below. Use the supplied screws only. -
Page 10: Battery Packs
BATTERY PACKS ‘ ‘ Battery pack replacement Before replacing the battery pack, the volume control MUST be rotated fully counterclockwise, until a click is heard, to turn the power OFF. • Slide the battery release forward, then pull the battery pack upward with the transceiver facing away from you. -
Page 11: Battery Cautions
BATTERY PACKS ‘ ‘ Battery cautions • CAUTION! NEVER short the terminals of the battery pack (or charging terminals of the transceiver). Also, current may flow into nearby metal objects such as a necklace, so be careful when plac- ing battery packs (or the transceiver) in handbags, etc. Simply carrying with or placing near metal objects such as a neck- lace, etc. -
Page 12: Battery Charging
BATTERY PACKS ‘ ‘ Battery charging D Rapid charging with the BC-144N+AD-99N The optional BC-144N provides rapid charging of optional battery packs. The following are additionally required: • One AD-99N (depends on version.). • An AC adapter (may be supplied with the BC-144N depending on version). - Page 13 BATTERY PACKS D Rapid charging with the BC-144N+AD-99N Turn power OFF BP-209N, BP-210N or BP-222N is attached to the transceiver. AC adaptor BC-145A/E/V/UK Check orientation and the spacer com- bination as follows. Charging indicator D D Spacer combination. • Be sure to attach the spacer (Spacer B/C) to Check orientation the adapter (Spacer A)
- Page 14 BATTERY PACKS D Rapid charging with the BC-121N+AD-101 The optional BC-121N allows up to 6 battery packs to be charged simultaneously. The following are additionally required. • Six AD-101 • An AC adapter (may be supplied with the BC-121N depending on version).
-
Page 15: Charging Note
BATTERY PACKS ‘ ‘ Charging NOTE Prior to using the transceiver for the first time, the battery pack must be fully charged for optimum life and operation. • Recommended temperature range for charging: +10°C to +40°C (50°F to 140°F). • Use the supplied charger or optional charger (BC-119N/BC- 121N/BC-144N for rapid charging, BC-146 for regular charging) only. -
Page 16: Battery Case (Option)
BATTERY PACKS ‘ ‘ Battery case (Option) When using a BP-208N OPTIONAL BATTERY CASE attached to the transceiver, install 6 AA (LR6) size alkaline batteries as illus- trated below. NOTE: Output power is automatically reduced to 1 W to retain suffi- cient power in case of an emergency, etc. -
Page 17: 4 Programmable Functions
PROGRAMMABLE FUNCTIONS ‘ ‘ General In the following explanations, programmable function names are bracketed, the specific switch used to activate the function depends on programming. D D KEY LOCK FUNCTION1/2 This function locks access to all programmable switches (except the switch assigned for the lock function): Lock1: All Key Lock (except Lock key). - Page 18 PROGRAMMABLE FUNCTIONS D D SCAN FUNCTION The scan function allows you to search a pre-programmed group of channels for signals. Push the [Scan] switch to start/stop scan. • Scan pauses on a channel when receiving a signal. • “Lockout SCAN” (pre-programmed list SCAN) or “Priority SCAN” can be pre-programmed.
- Page 19 PROGRAMMABLE FUNCTIONS D D MONITOR AUDIBLE FUNCTION The monitor function allows you to open the transceiver’s squelch manually to check whether a channel is busy or not. The trans- ceiver has 2 conditions for receive standby: Audible condition: This condition mutes audio ONLY when no carrier is present.
- Page 20 PROGRAMMABLE FUNCTIONS D D DTMF TRANSMISSION This function allows you to send a pre-programmed DTMF code to control a repeater, open another transceiver’s squelch, etc. Automatic pre-programmed transmission: Push the [DTMF Autodial] switch to send a DTMF code. D D EMERGENCY FUNCTION The emergency function allows you to send your ID quickly and easily to your Base Station, etc.
-
Page 21: Programmable Functions
PROGRAMMABLE FUNCTIONS D D CODE SQUELCH This conveniently eliminates unwanted audio and is useful in group activities or security related activities where unwanted output can be a problem. The function is similar to a CTCSS tone squelch. In order to use the above functions, cloning is necessary via a PC using the optional CS-F11 cloning software. -
Page 22: Conventional Operation
CONVENTIONAL OPERATION ‘ ‘ Receiving and transmitting NOTE: Transmitting without an antenna may damage the trans- ceiver. See p. 4 for antenna attachment. Turn power ON as described on p. 2. Receiving: q Select a desired channel. w Listen for a transmission and adjust [VOL] to a comfortable lis- tening level. -
Page 23: Call Procedure
CONVENTIONAL OPERATION ‘ ‘ Call procedure When your system employs tone signalling (excluding CTCSS and DTCS), the call procedure may be necessary prior to voice trans- mission. The tone signalling employed may be a selective calling system which allows you to call specific station(s) only and prevent unwanted stations from contacting you. -
Page 24: Setting Squelch Level
CONVENTIONAL OPERATION ‘ ‘ Setting squelch level The squelch circuit mutes the received audio signal depending on the signal strength. q While pushing [PTT] and [Lower], turn the transceiver’s power on to enter the squelch adjustment mode. w Push [Upper] to increase the squelch level (tight squelch) or [Upper] [Lower] to decrease the squelch... -
Page 25: Cloning
CLONING ‘ ‘ Cloning Cloning allows you to quickly and easily transfer the programmed contents from one transceiver to another transceiver; or data from PC to a transceiver using the optional CS-F11 CLONING SOFT- WARE. D D Transceiver-to-transceiver cloning NOTE: ‘Transceiver-to-transceiver cloning’ is available be- tween the same models on 2CH model to 16CH model or the opposite case cannot be cloned. -
Page 26: Option
OPTION D D BATTERY PACKS/CASE • BP-208N/BP-209N/BP-210N/BP-211N/BP-222N BP-208N : Battery case for 6 AA (LR6) alkaline cells BP-209N : 7.2 V/1100 mAh Ni-Cd battery pack BP-210N : 7.2 V/1650 mAh Ni-MH battery pack BP-211N : 7.4 V/1800 mAh Li-Ion battery pack BP-222N : 7.2 V/600 mAh Ni-Cd battery pack D D RAPID CHARGERS •... -
Page 27: Option
OPTION • CS-F11 + OPC-478 CLONING SOFTWARE CLONING CABLE Allows you to clone the memory contents of an IC-F11/S, IC- F21/S by PC editing. • OPC-474 CLONING CABLE Cloning cable for transceiver to transceiver... - Page 28 MEMO...
- Page 29 MEMO...
- Page 30 MEMO...
- Page 31 MEMO...
- Page 32 IC-F11S/F21S series A-6021H-1EX-r Printed in Japan © 2001–2007 Icom Inc. 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan Printed on recycled paper with soy ink.
