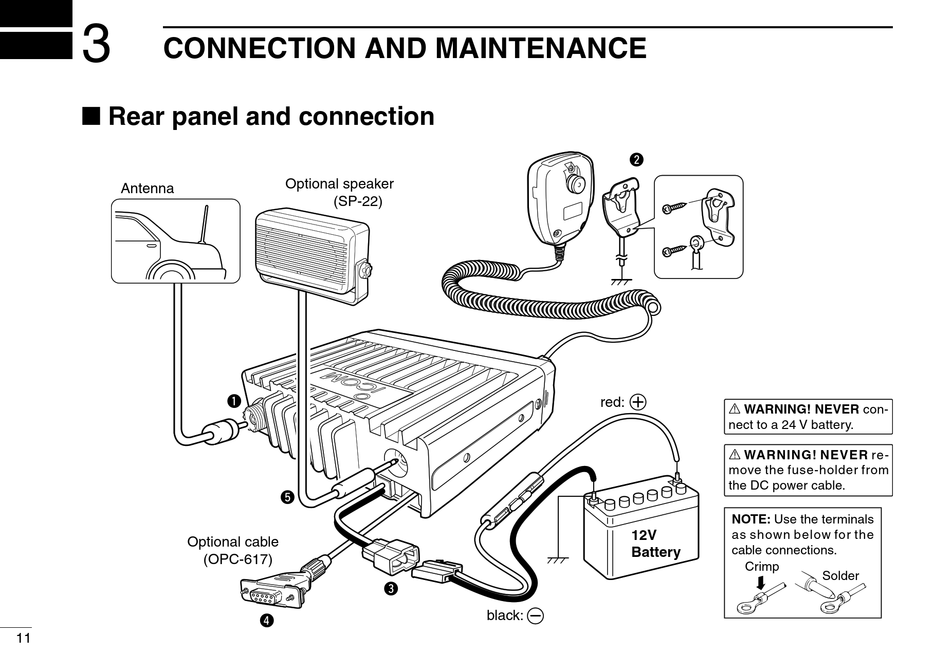

CONNECTION AND MAINTENANCE

■ Rear panel and connection
Antenna
Optional cable
11
Optional speaker
(SP-22)
q
t
(OPC-617)
r
e
black:
w
+
red:
R WARNING! NEVER con-
nect to a 24 V battery.
R WARNING! NEVER re-
move the fuse-holder from
the DC power cable.
NOTE: Use the terminals
12V
as shown below for the
cable connections.
Battery
Crimp
Solder
