1

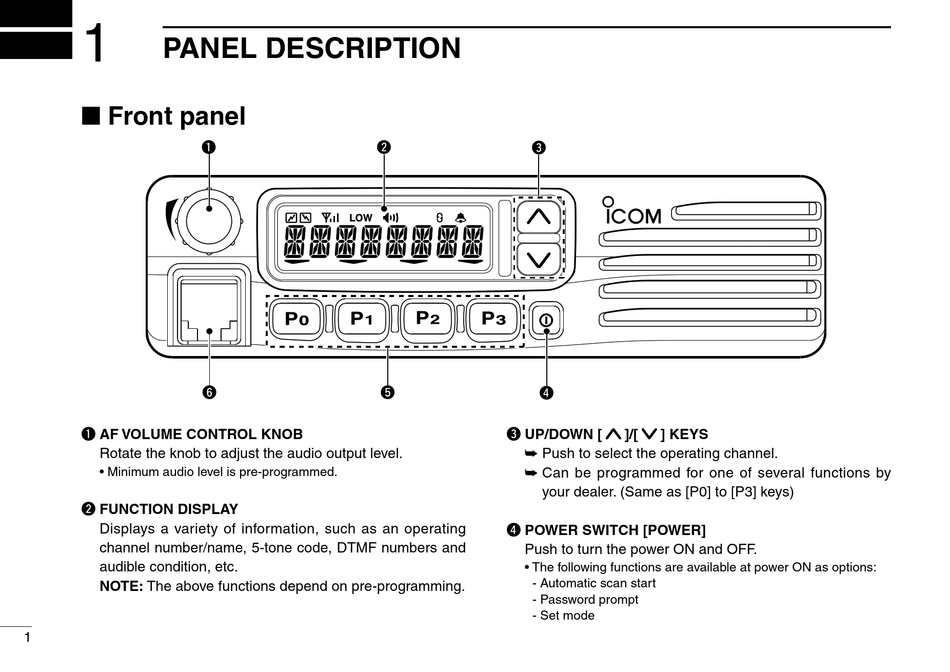

PANEL DESCRIPTION

■ Front panel

q
y
q AF VOLUME CONTROL KNOB
Rotate the knob to adjust the audo output level.
• Mnmum audo level s pre-programmed.
w FUNCTION DISPLAY
Dsplays a varety of nformaton, such as an operatng
channel number/name, 5-tone code, DTMF numbers and
audble condton, etc.
NOTE: The above functons depend on pre-programmng.
1
w e
t r
e UP/DOWN [
➥ Push to select the operatng channel.
➥ Can be programmed for one of several functons by
your dealer. (Same as [P0] to [P3] keys)
r POWER SWITCH [POWER]
Push to turn the power ON and OFF.
• The followng functons are avalable at power ON as optons:
- Automatc scan start
- Password prompt
- Set mode
]/[ ] KEYS
