Quick Start Guide
1

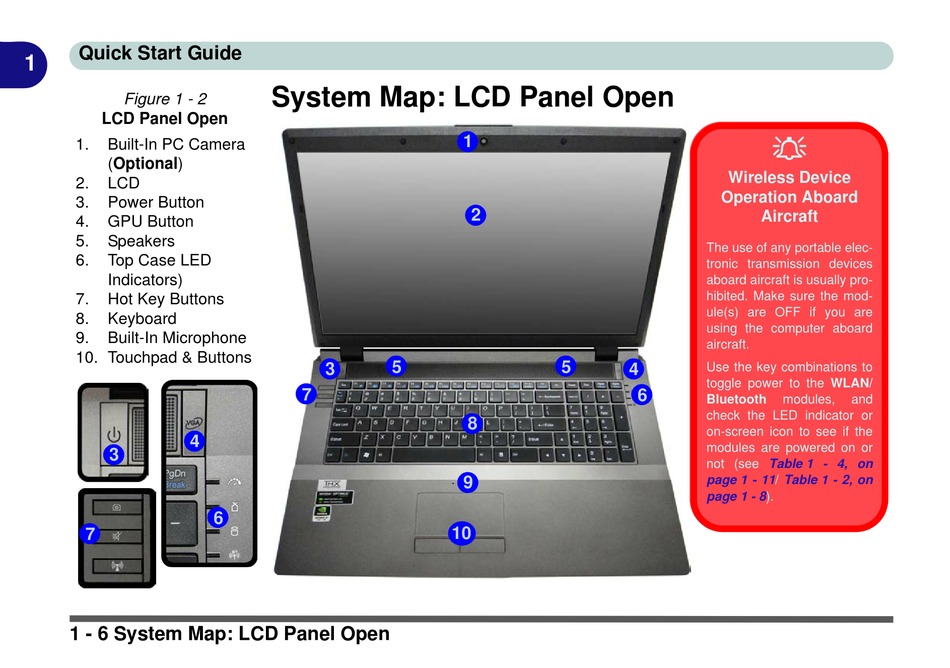

Figure 1 - 2
LCD Panel Open
1. Built-In PC Camera
(Optional)
2. LCD
3. Power Button
4. GPU Button
5. Speakers
6. Top Case LED
Indicators)
7. Hot Key Buttons
8. Keyboard
9. Built-In Microphone
10. Touchpad & Buttons
4
3
7

1 - 6 System Map: LCD Panel Open

System Map: LCD Panel Open
5
3
7
6
1
2
5
4
8
9
10

Wireless Device
Operation Aboard
Aircraft
The use of any portable elec-
tronic transmission devices
aboard aircraft is usually pro-
hibited. Make sure the mod-
ule(s) are OFF if you are
using the computer aboard
aircraft.
Use the key combinations to
toggle power to the WLAN/
6
Bluetooth modules,
check the LED indicator or
on-screen icon to see if the
modules are powered on or
not (see Table 1 - 4, on
page 1 - 11/ Table 1 - 2, on
page 1 - 8).
and
