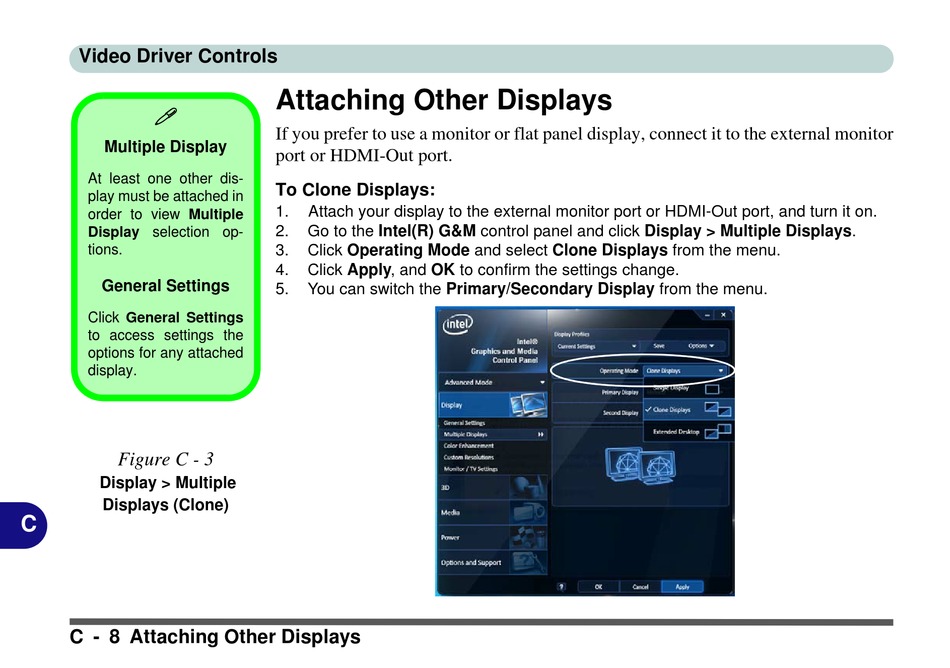

Attaching Other Displays - EUROCOM Notebook V12.1.00 User Manual

Video Driver Controls

Multiple Display
At least one other dis-
play must be attached in
order to view Multiple
Display selection op-
tions.
General Settings
Click General Settings
to access settings the
options for any attached
display.
Figure C - 3
Display > Multiple
Displays (Clone)
C
C - 8 Attaching Other Displays

Attaching Other Displays

If you prefer to use a monitor or flat panel display, connect it to the external monitor
port or HDMI-Out port.
To Clone Displays:
1. Attach your display to the external monitor port or HDMI-Out port, and turn it on.
2. Go to the Intel(R) G&M control panel and click Display > Multiple Displays.
3. Click Operating Mode and select Clone Displays from the menu.
4. Click Apply, and OK to confirm the settings change.
5. You can switch the Primary/Secondary Display from the menu.
