System Map: Front & Left Views
1
2
3
4
If you need to manually eject a CD/DVD (e.g. due to an unexpected power interruption)
you may push the end of a straightened paper clip into the emergency eject hole. Do not
use a sharpened pencil or any object that may break and become lodged in the hole.
Don't try to remove a floppy disk/CD/DVD while the system is accessing it. This may
cause the system to "crash".
Don't try to eject a CD/DVD while the system is accessing it. This may cause the system
to "crash". Stop the disk first then eject it, or press the stop button twice.
5 6

CD/DVD Emergency Eject
Disk Eject Warning
1
7
System Map: Front & Left Views 1 - 13
Quick Start Guide

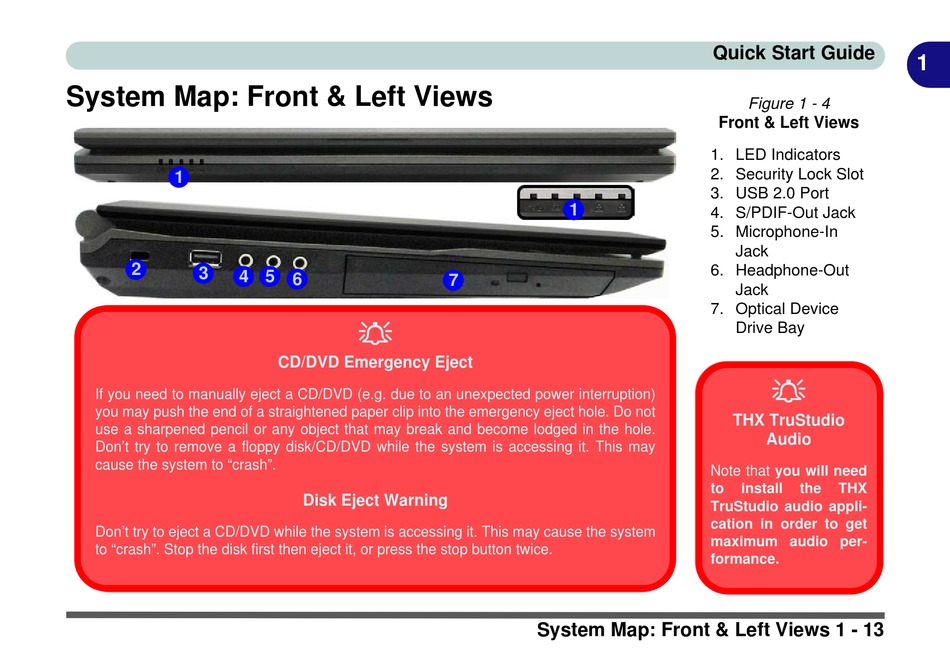

Figure 1 - 4
Front & Left Views
1. LED Indicators
2. Security Lock Slot
3. USB 2.0 Port
4. S/PDIF-Out Jack
5. Microphone-In
Jack
6. Headphone-Out
Jack
7. Optical Device
Drive Bay

THX TruStudio
Audio
Note that you will need
to install the THX
TruStudio audio appli-
cation in order to get
maximum audio per-
formance.
