Upgrading The Computer

HDD Insulation Plates
Note that the HDD insu-
lation plates for the pri-
mary and secondary
hard disks, though simi-
lar in outward appear-
ance, are
interchangeable.
6
plates are clearly
marked 1ST HDD & 2nd
HDD.
Make sure you use the
appropriate insulation
plate for the HDD as the
sizes are slightly differ-
ent
Figure 6 - 6
Secondary HDD
Assembly Screws &
Removal
6 - 10 Upgrading the Hard Disk Drive(s)

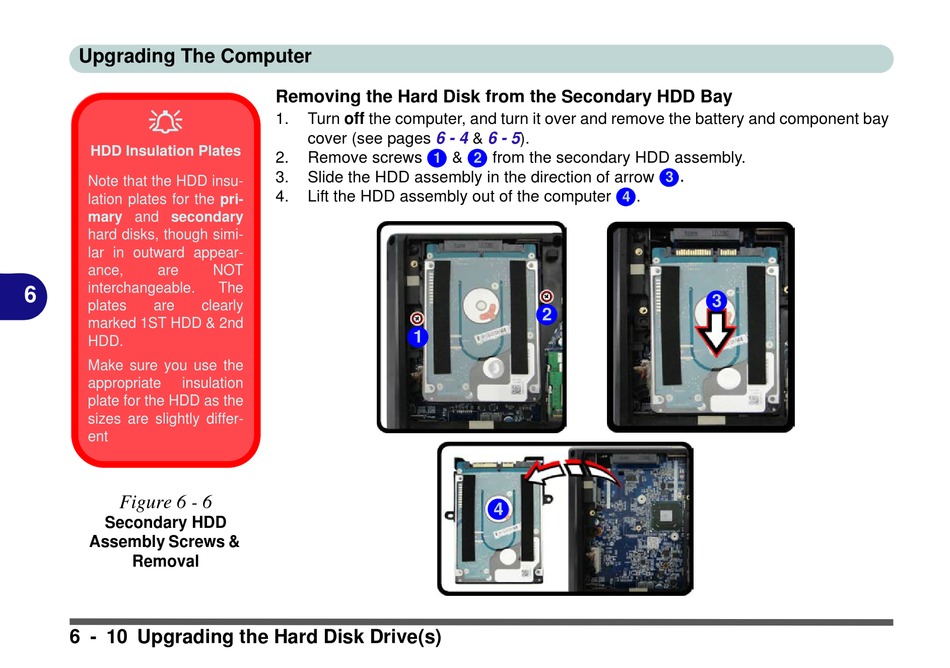

Removing the Hard Disk from the Secondary HDD Bay
1. Turn off the computer, and turn it over and remove the battery and component bay
cover (see pages
2. Remove screws
3. Slide the HDD assembly in the direction of arrow
4. Lift the HDD assembly out of the computer
NOT
The
6 - 4 & 6 - 5).
& from the secondary HDD assembly.
1 2
2
1
4
.
3
.
4
3
