System Map: Bottom View

2
The CPU is not a user serviceable part.
To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake
while the computer is in use.
1
4
3

CPU
Overheating
4
System Map: Bottom View 1 - 15
Quick Start Guide

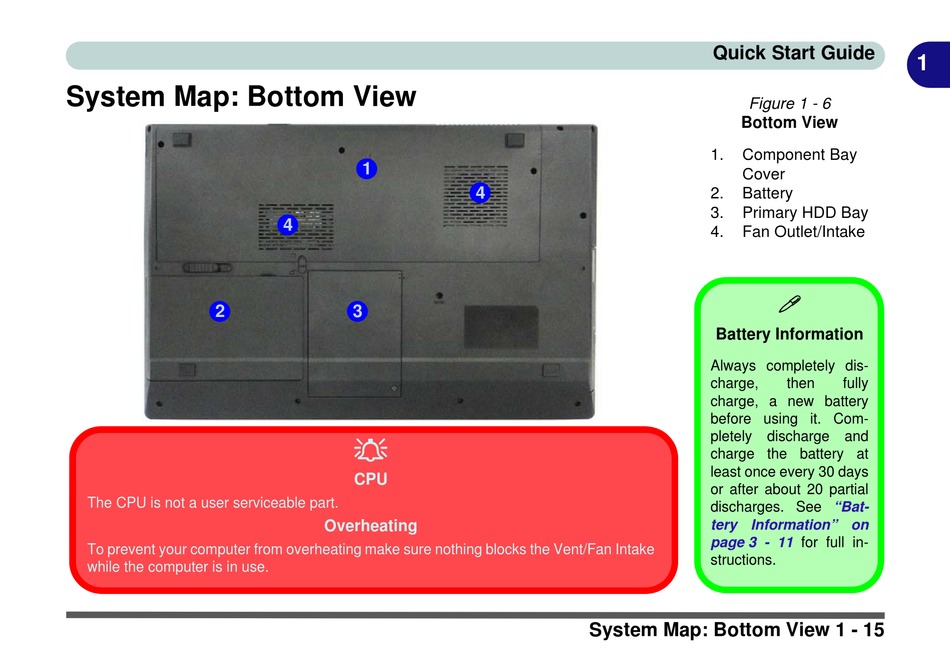

Figure 1 - 6
Bottom View
1. Component Bay
Cover
2. Battery
3. Primary HDD Bay
4. Fan Outlet/Intake

Battery Information
Always completely dis-
charge, then fully
charge, a new battery
before using it. Com-
pletely discharge and
charge the battery at
least once every 30 days
or after about 20 partial
discharges. See "Bat-
tery Information" on
page 3 - 11 for full in-
structions.
