Introduction

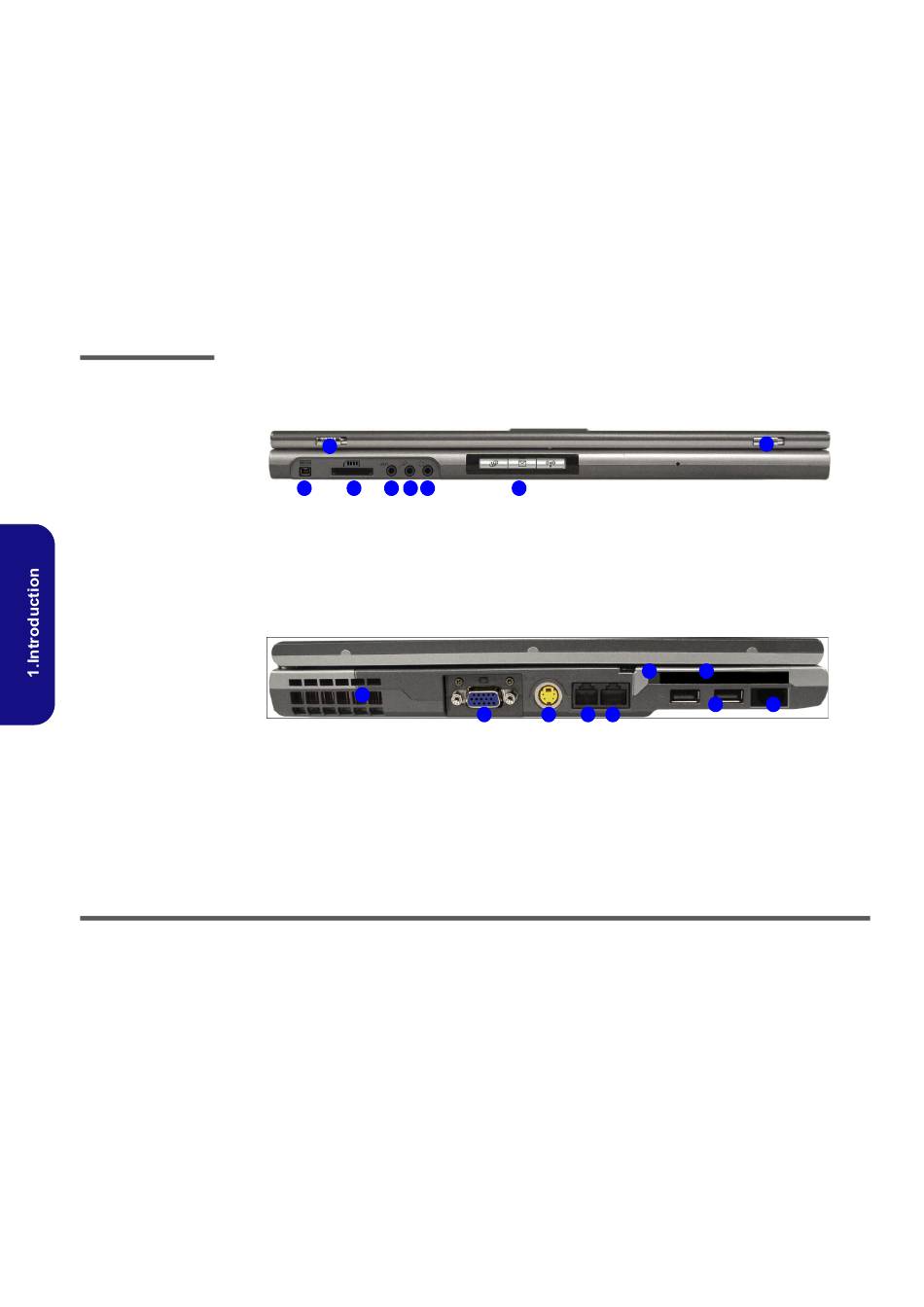

External Locator - Front & Left Side Views
Figure 2
Front View
1. LCD Latches
2. Mini-IEEE 1394
Port
3. 3-in-1 Card
Reader
4. S/P DIF Out Port
5. Microphone-In
Jack
6. Headphone-Out
Jack
7. Hot-Key Buttons
Figure 3
Left Side View
1. Vent/Fan Intake
2. External Monitor
(VGA) Port
3. S-Video-Out Port
4. RJ-11 Phone Jack
5. RJ-45 LAN Jack
6. 2 * USB 2.0 Ports
7. Infrared
Transceiver
8. PC Card Slot
9. PC Card Slot Eject
Button
1 - 6 External Locator - Front & Left Side Views
All manuals and user guides at all-guides.com
1
2 3 4 5 6
1
7
9
2 3 4 5
1
8
6 7
