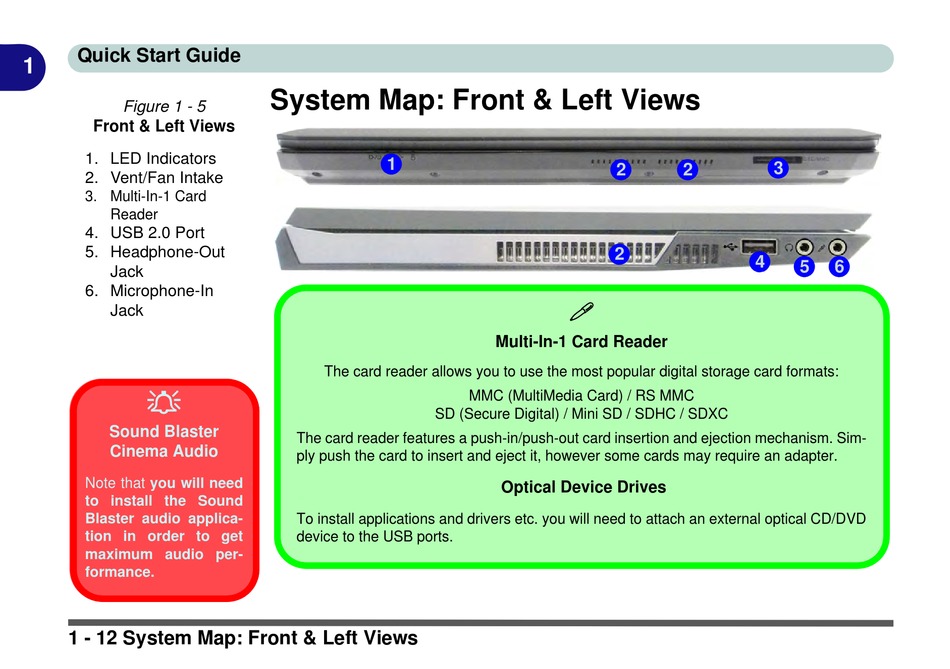

Figure 1 - 5
Front & Left Views
1. LED Indicators
2. Vent/Fan Intake
3. Multi-In-1 Card
Reader
4. USB 2.0 Port
5. Headphone-Out
Jack
6. Microphone-In
Jack

Sound Blaster
Cinema Audio
Note that you will need
to install the Sound
Blaster audio applica-
tion in order to get
maximum audio per-
formance.
1 - 12 System Map: Front & Left Views
System Map: Front & Left Views
1
The card reader allows you to use the most popular digital storage card formats:
SD (Secure Digital) / Mini SD / SDHC / SDXC
The card reader features a push-in/push-out card insertion and ejection mechanism. Sim-
ply push the card to insert and eject it, however some cards may require an adapter.
To install applications and drivers etc. you will need to attach an external optical CD/DVD
device to the USB ports.
2
2

Multi-In-1 Card Reader
MMC (MultiMedia Card) / RS MMC
Optical Device Drives
