System Map: Front & Left Views
1
4
2
3
The card reader allows you to use the most popular digital storage card formats:
SD (Secure Digital) / Mini SD / SDHC / SDXC Compatible
Some models in this series have a single USB 3.0 port (Factory Option) on the left side
of the computer, other models will have a USB 2.0 port. The USB 3.0 port is denoted by
its blue color; USB 2.0 ports are colored black.
Note that the USB 3.0 port requires a driver installation (see
does not support wake on USB.
5 5 6
7

3-in-1 Card Reader
MMC (MultiMedia Card) / RS MMC
MS (Memory Stick) / MS Pro / MS Duo
USB 3.0 Port OR USB 2.0 Port
9
8
"USB 3.0" on page 4 - 7) and
System Map: Front & Left Views 1 - 13
Quick Start Guide

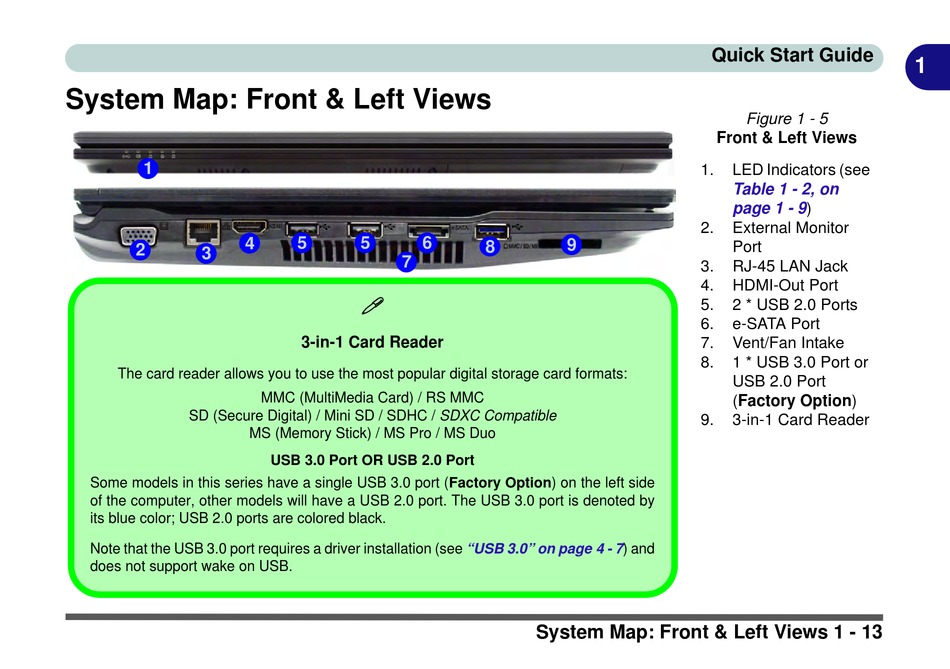

Figure 1 - 5
Front & Left Views
1. LED Indicators (see
Table 1 - 2, on
page 1 - 9)
2. External Monitor
Port
3. RJ-45 LAN Jack
4. HDMI-Out Port
5. 2 * USB 2.0 Ports
6. e-SATA Port
7. Vent/Fan Intake
8. 1 * USB 3.0 Port or
USB 2.0 Port
(Factory Option)
9. 3-in-1 Card Reader
1
