System Map: Bottom View - Model A - EUROCOM Notebook V10.1.00 User Manual

Quick Start Guide
1

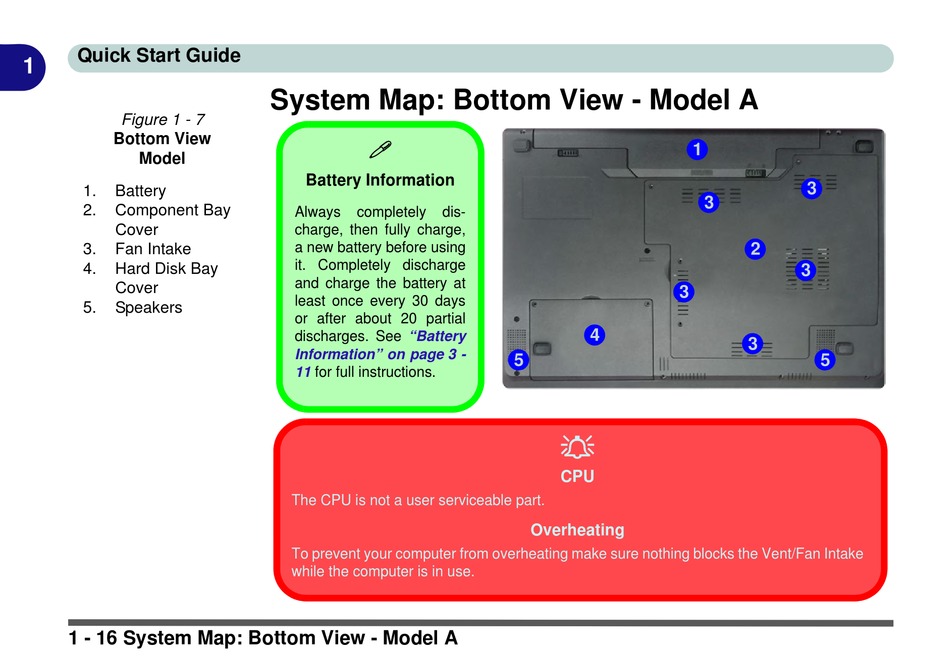

Figure 1 - 7
Bottom View
Model
1. Battery
2. Component Bay
Cover
3. Fan Intake
4. Hard Disk Bay
Cover
5. Speakers

1 - 16 System Map: Bottom View - Model A

System Map: Bottom View - Model A

Battery Information
Always completely dis-
charge, then fully charge,
a new battery before using
it. Completely discharge
and charge the battery at
least once every 30 days
or after about 20 partial
discharges. See "Battery
Information" on page 3 -
11 for full instructions.
The CPU is not a user serviceable part.
To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake
while the computer is in use.
1
3
4
5

CPU
Overheating
3
3
2
3
3
5
