Using the Input/Output Panel

To access the input/output (I/O) ports, remove the cable cover at the bottom of the

unit. A security screw is included and may be used to secure the cable cover to the

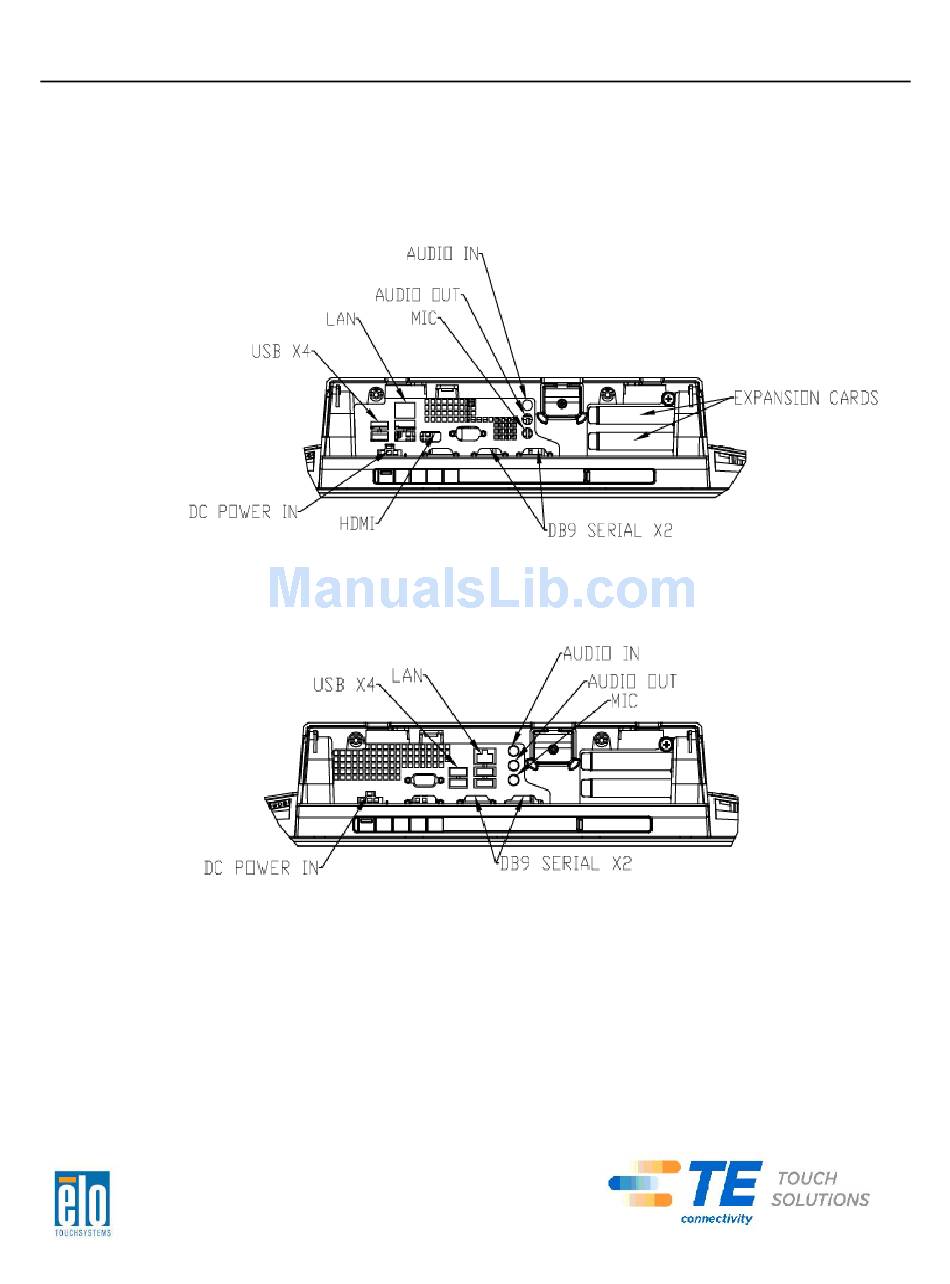

touchcomputer. Below are the I/O descriptions by model:

Note: The DB9 Serial (COM) ports are defaulted (from left to right) COM3 and COM4

Note: As a safety precaution, always leave the cable cover door attached when the

system is powered on.

C3 models

C2 models

C-Series Touchcomputer for Healthcare Applications User Guide 14
