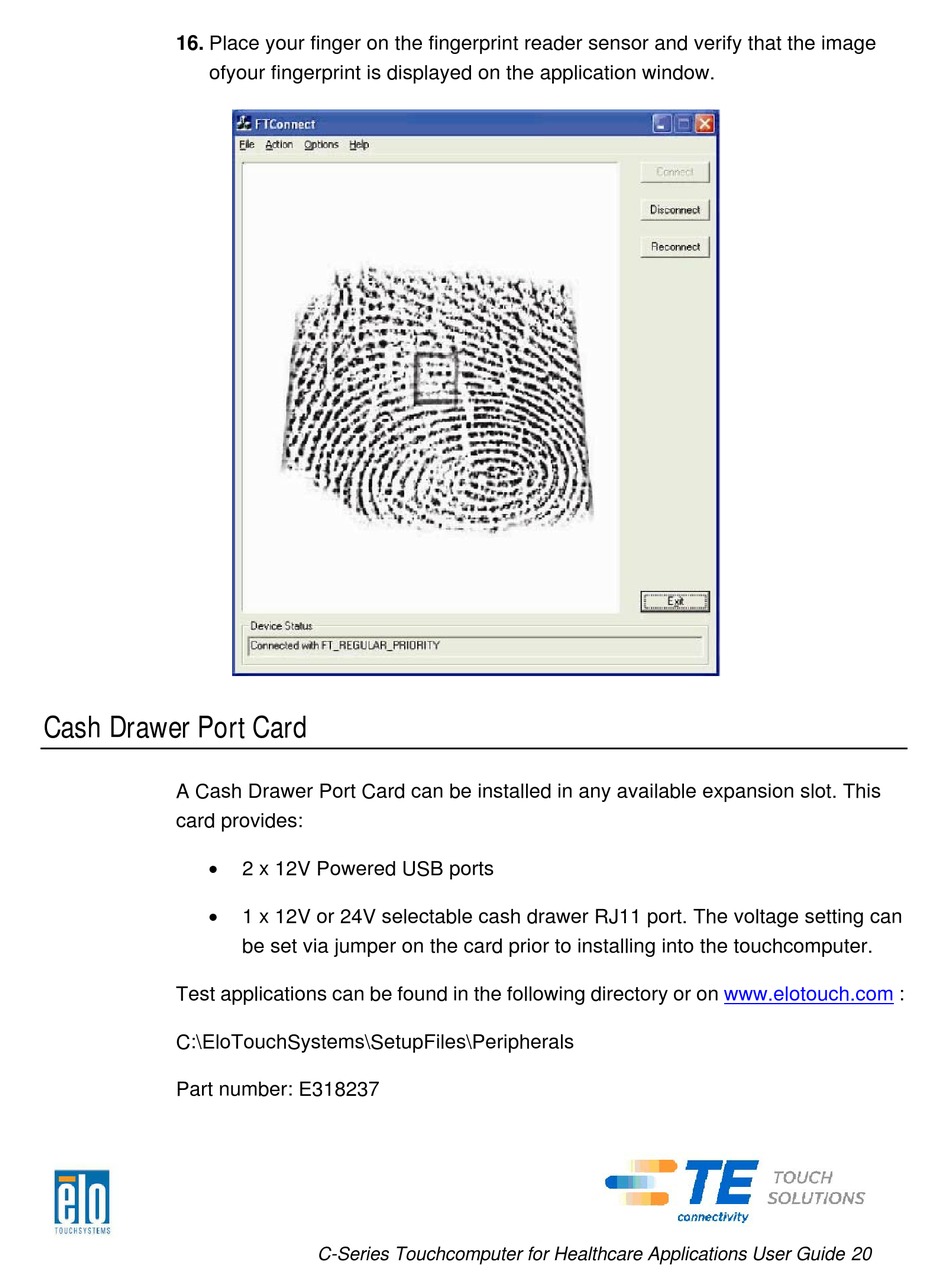

16. Place your finger on the fingerprint reader sensor and verify that the image

ofyour fingerprint is displayed on the application window.

Cash Drawer Port Card

A Cash Drawer Port Card can be installed in any available expansion slot. This

card provides:



Test applications can be found in the following directory or on

C:\EloTouchSystems\SetupFiles\Peripherals

Part number: E318237

2 x 12V Powered USB ports

1 x 12V or 24V selectable cash drawer RJ11 port. The voltage setting can

be set via jumper on the card prior to installing into the touchcomputer.

C-Series Touchcomputer for Healthcare Applications User Guide 20

www.elotouch.com
