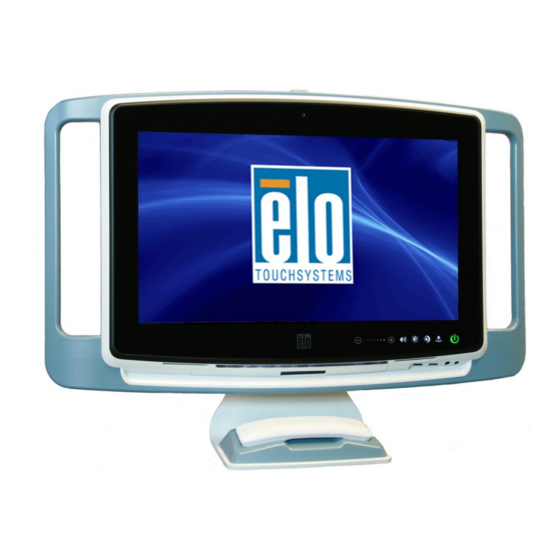

- Page 1 M-Series Touchcomputer User Guide M-Series LCD Multi-function Touchcomputer [19” model shown with optional accessories]...
- Page 2 Elo Touch Solutions M-Series Touchcomputer for Healthcare Applications User Guide Multi-function Touchcomputer Revision A SW200069 1-800-ELOTOUCH (1-800-356-8682) www.elotouch.com M-Series Touchcomputer User Guide ii...
- Page 3 Elo Touch Solutions reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo Touch Solutions to notify any person of such revisions or changes.
- Page 4 • Elo Touch Solutions recommends that after its useful life (or after sustaining unrepairable damage), customers dispose of the touchcomputer and its power supply in an environmentally sound manner. Acceptable methods include the reuse of parts or whole products and the recycling of products, components, and materials.
- Page 5 The mark on electrical and electronic products only applies to the current European Union Member States. Elo Touch Solutions recommends that after its useful life (or after sustaining unrepairable damage), customers dispose of the touchcomputer and its power supply in an environmentally sound manner. Acceptable methods include the reuse of parts or whole products and the recycling of products, components, and materials.
- Page 6 Medical and Healthcare Application Disclaimer: It is the sole responsibility of any person intending to commercialize, market or use any of Elo Touch Solutions, Inc. products for medical or healthcare applications to ensure that such product is adequate and appropriate for...
- Page 7 Classification With respect to electrical shock, fire in accordance with ANSI/AAMI ES60601-1 and CAN/CSA- C22.2 No. 60601-1 E354528 07EG This touchcomputer is a Class I (GROUNDED) DEVICE. This touchcomputer is classified NO APPLIED PARTS EQUIPMENT. Protection against harmful ingress of water: INGRESS PROTECTION (IP21) This touchcomputer shall be classified as ORDINARY EQUIPMENT, not intended or evaluated for use in the presence of flammable anesthetic mixture...
- Page 8 European Standards and Classifications Standards: EN 60601-1-2: 2007 The EMC limits and test methods are referred to the following standards: Emission: Immunity CISPR 11: 2009+A1:2010 IEC 61000-4-2: 2008 EN55011: 2009+A1: 2010 IEC 61000-4-3: 2006+A1:2007+A2:2010 (Group 1, Class A) IEC 61000-3-2: IEC 61000-4-4: 2011 2005+A1:2008+A2:2009 IEC 61000-3-3;...
- Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity for all EQUIPMENT AND SYSTEMS Guidance and manufacturer’s declaration-electromagnetic emissions The 15MX/19MX Touchcomputer for Healthcare Applications is intended for use in the electromagnetic environment specified below. The customer or the user of the 15MX/19MX Touchcomputer for Healthcare Applications should assure that it is used in such an environment.
- Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity for all EQUIPMENT AND SYSTEMS Guidance and manufacturer’s declaration-electromagnetic immunity The 15MX/19MX Touchcomputer for Healthcare Applications is intended for use in the electromagnetic environment specified below. The customer, or the user of the 15MX/19MX Touchcomputer for Healthcare Applications, should assure that it is used in such an environment.
- Page 11 Guidance and manufacturer’s declaration-electromagnetic immunity for all EQUIPMENT AND SYSTEMS that are not LIFE-SUPPORTING Guidance and manufacturer’s declaration-electromagnetic immunity The 15MX/19MX Touchcomputer for Healthcare Applications is intended for use in the electromagnetic environment specified below. The user of the 15MX/19MX Touchcomputer for Healthcare Applications should assure that it is used in such an environment.
- Page 12 NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. 3. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
- Page 13 Recommended separation distances between portable and mobile RF communications equipment and the 15MX/19MX Touchcomputer for Healthcare Applications for all EQUIPTMENT AND SYSTEMS that are not LIFE-SUPPORTING The 15MX/19MX Touchcomputer for Healthcare Applications is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the 15MX/19MX Touchcomputer for Healthcare Applications can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications (equipment) and the 15MX/19MX Touchcomputer for Healthcare Applications as recommended below according to...
-
Page 14: Table Of Contents
Table of Contents Chapter 1: Setup..................1 Unpacking Your Touchcomputer ....................1 Touchcomputer Operating System ....................2 Accessing the Hard Disk........................2 Calibrating the Touchscreen ......................3 Securing the M-Series AIO to a Mounting Bracket.................4 Chapter 2: Operation ................5 User Buttons.............................6 Using the Input/Output Panel......................8 Chapter 3: Options and Upgrades ............ - Page 15 Technical Assistance........................18 Regulatory Information................19 Warranty ....................27 Index......................29 M-Series Touchcomputer User Guide xv...
-
Page 16: Chapter 1: Setup
C H A P T E R SETUP This chapter discusses how to set up and test your touchcomputer. For information on peripheral options, refer to Chapter 3, “Options and Upgrades.” Unpacking Your Touchcomputer Check that the following items are present and in good condition: M-Series Touchcomputer User Guide 1... -
Page 17: Touchcomputer Operating System
Touchcomputer Operating System The touchcomputer may be delivered without an operating system. An operating system must be installed before many of the features of the touchcomputer can be used. The hardware used on the touchcomputer is compatible with many common operating systems. -
Page 18: Calibrating The Touchscreen
Calibrating the Touchscreen The touchscreen is pre-calibrated for accurate touch response. If for any reason the touchscreen needs to be recalibrated, right-click the Elo icon in the Taskbar and then click “Properties.” The following window opens. Calibration is not applicable on projective capacitive touchscreen NOTE: models. -
Page 19: Securing The M-Series Aio To A Mounting Bracket
Securing the M-Series AIO to a Mounting Bracket Use the four pre-tapped holes to secure the touchcomputer to the mounting bracket. The holes are designed to work with ISO metric M4 screws. Mounting screws are not included. Select the length screw that will provide adequate thread engagement to provide a reliable connection to the mounting bracket. -
Page 20: Chapter 2: Operation
C H A P T E R OPERATION This chapter describes the user button functions and I/O panel. All adjustments made to the user buttons are reset upon a power cycle to the touchcomputer. M-Series Touchcomputer User Guide 5... -
Page 21: User Buttons
User Buttons User buttons are capacitive buttons. Use of finger or appropriate stylus is required for proper function. Power Button The power button function is different depending on the state of the touchcomputer. • When the touchcomputer is booted into an operating system the power button will turn off and on the display backlight •... - Page 22 Screen Brightness Function Touch the screen brightness icon and use the +/- function adjustment icons to adjust the intensity. Current setting is displayed in-between +/- icons Audio Volume Function Touch the audio volume icon and use the +/- function adjustment icons to adjust the intensity. Current setting is displayed in-between +/- icons.
-
Page 23: Using The Input/Output Panel
Using the Input/Output Panel To access the input/output (I/O) ports, remove the cable cover on left side of the back of the unit. Install the I/O cables in the respective ports and use plastic cable ties to fasten the cables to the cable restraints shown below. Below are the I/O descriptions and location of the cable restraints: Note: As a safety precaution, always leave the cable cover attached when the system is powered on. -
Page 24: Chapter 3: Options And Upgrades
C H A P T E R OPTIONS AND UPGRADES Peripherals and Accessories The following peripherals and accessories are available for the M-Series touchcomptuers. • Magnetic stripe reader (MSR)* • Wireless adapter • Solid State Drive (SSD)* • Webcam • Barcode Scanner (2D area array)* •... -
Page 25: Magnetic Stripe Reader (Msr)
Magnetic Stripe Reader (MSR) A magnetic stripe reader (MSR) is an optional M-Series touchcomputer peripheral. Software application and drivers can be found on the web at: www.elotouch.com The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver’s licenses conforming to ISO/ANSI standards. -
Page 26: Wireless Card
Wireless Card A wireless adapter is a standard peripheral in the M-Series touchcomputer. Typical specifications for the wireless card are: • Mini PCI-E module • IEEE 802.11 a/b/g/n compliant Solid State Drive A solid state drive can be used to replace the original hard disk drive. This addition provides additional performance and is more mechanically reliable in harsh environments. -
Page 27: Barcode Scanner
5fps max @ 2.0 megapixels (1600x1200); Auto Frame Rate 24fps max @ VGA mode (640x480) Field Of View (FOV) 66° Focus Range 40cm ~ Infinity Barcode Scanner A 2D area array barcode scanner is an optional M-Series touchcomputer peripheral. The barcode scanner has integrated illumination and is compatible with many barcode symbologies. -
Page 28: Rfid Reader
RFID Reader An RFID reader is an optional M-Series touchcomputer peripheral. If installed, the RFID reader is capable of reading tags presented within a few centimeters of the symbol shown below on the front of M-Series touchcomputer. Compatible RFID standards are shown below: •... -
Page 29: Usb Handset
USB Handset A USB Handset is an optional M-Series touchcomputer peripheral. Included in the kit is a bracket and handset cradle that is required for correct function. Part number: E709063 TV Tuner A USB TV Tuner kit is available as an optional accessory. There are three options available. -
Page 30: Ac Cable
AC Cable A country specific AC cable can be used to replace the original AC Cable. There are two options. • UK-HK 1.8 Meter AC cable Part number: E010063 • Japan 1.8 Meter AC cable Part number: E520117 M-Series Touchcomputer User Guide 15... -
Page 31: Chapter 4: Safety And Maintenance
Do not attempt to fit the plug into an outlet that has not been configured for this purpose. Do not use a damaged power cord. Only use the power cord that comes with your Elo Touch Solutions touchcomputer. Use of an unauthorized power cord might invalidate your warranty. -
Page 32: Care And Handling
Care and Handling The following tips help keep your touchcomputer functioning at the optimal level. Power down the unit and disconnect from the electrical mains prior to engaging in any cleaning activities. Take care to ensure no leakage of solution into the system. IF ANY FLUID INGRESS INTO THE UNIT DURING CLEANING IS SUSPECTED, DO NOT POWER ON THE UNIT. -
Page 33: Chapter 5: Technical Support
C H A P T E R TECHNICAL SUPPORT TECHNICAL SPECIFICATIONS Touchcomputer Specifications For touch computer specifications go to www.elotouch.com Not all operating systems or options are supported in all regions. Please NOTE: contact your local Elo TouchSystems representative for details. Technical Assistance There are three methods to obtain contact information for technical assistance on the touchcomputer:... -
Page 34: Regulatory Information
REGULATORY INFORMATION I. Electrical Safety Information A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein may result in improper operation, damage to the equipment, invalidation of warranty, or a fire hazard if the requirements are not followed. - Page 35 and interconnecting cabling provided with the equipment. Substitution of provided cords and cabling may compromise electrical safety or CE Mark Certification for emissions or immunity as required by the following standards: This Electronic Equipment is required to have a CE Mark on the manufacturer’s label which means that the equipment has been tested to the following Directives and Standards: This equipment has been tested to the requirements for the CE Mark as required by EMC 2004/108/EC...
- Page 36 source of high RF emission levels.) v) Plug the digital device into only a grounded outlet receptacle. Do not use AC adapter plugs. (Removing or cutting the line cord ground may increase RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician.
- Page 37 Exposure to radio frequency radiation The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.
- Page 38 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011 Safety of Information Technology Equipment...
- Page 39 Touchcomputer is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español Por medio de la presente Elo Touch Solutions, Inc. declara que el [Spanish] 15MX/19MX Touchcomputer cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
- Page 40 Šiuo Elo Touch Solutions, Inc. deklaruoja, kad šis 15MX/19MX [Lithuanian] Touchcomputer atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Hierbij verklaart Elo Touch Solutions, Inc. dat het toestel 15MX/19MX Nederlands Touchcomputer in overeenstemming is met de essentiële eisen en de [Dutch] andere relevante bepalingen van richtlijn 1999/5/EG.
- Page 41 IV. Ingress Protection The 15MX/19MX Touchcomputer is designed to have an ingress protection rating of IP21 over the range of angles shown in the diagram below. M-Series Touchcomputer User Guide 26...
-
Page 42: Warranty
WARRANTY Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. With the exception of the negotiated warranty periods; the warranty for the touchcomputer and components of the product is 3 years. - Page 43 THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.
-
Page 44: Index
INDEX address, Elo TouchSystems, 36 specifications magnetic stripe reader, 11 base, securing, 4 wireless card, 12 box contents, 1 technical support, 20 cables touchscreen included, 1 calibrating, 2, 3 calibration, 2, 3 care and handling, 18 certifications, 32 upgrades, adding, 10 contact information, 24 warranty, 33 controls, location diagram, 5... -
Page 45: Product Information
• Software drivers • Touchcomputer Newsletter Getting in Touch with Elo To find out more about the extensive range of Elo touch solutions, visit www.elotouch.com or simply call the office nearest you: North America Europe Asia-Pacific Elo Touch Solutions Inc.
