Using the Input/Output Panel

To access the input/output (I/O) ports, remove the cable cover at the bottom of the

unit. A security screw is included and may be used to secure the cable cover to the

touchcomputer. Below are the I/O descriptions by model:

Note: The DB9 Serial (COM) ports are defaulted (from top to bottom) COM1 and COM2

Note: As a safety precaution, always leave the cable cover door attached when the system is

powered on.

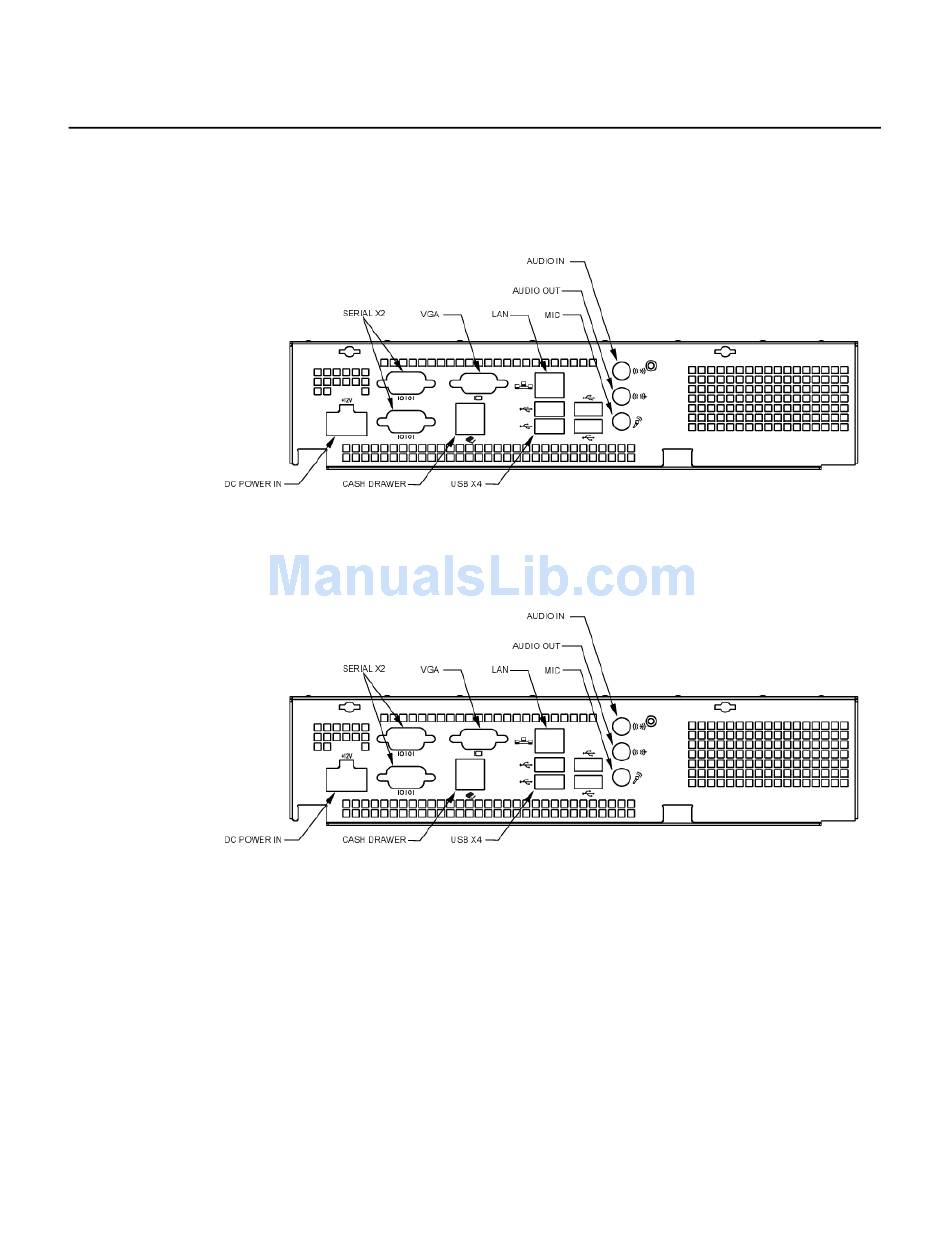

C2 models

C3 models
