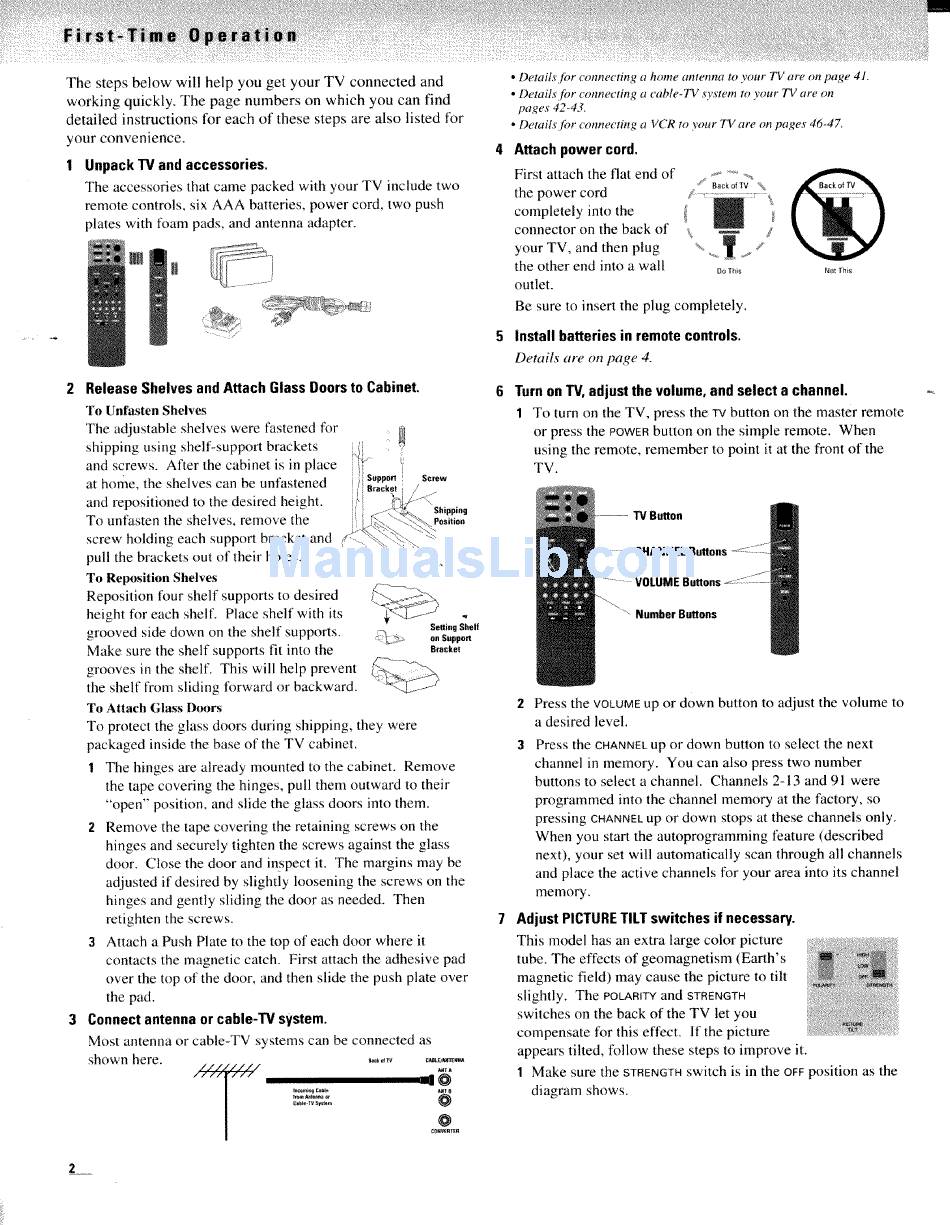

ProScan PS35652 Owner's Manual page 6

The steps below wil! help you get your TV connected and
working quickly. The page numbers on which you can find
detailed instructions for each of these steps are also listed for
your convenience.
I Unpack W and accessories.
The accessories that came packed with your TV include two
remote controls, six AAA batteries, power cord, two push
plates with foam pads, and antenna adapter,
2 Release Shelves and Attach GlassDoors to Cabinet.
To Unfasten Shelves
The adjustable shelves were fastened for
shipping using shelf-support brackets
and screws. After lhe cabinet is in place
at home, the shelves can be unfastened sum,0, _ s_,,,,,
and reposifioned to the desired height. _ Shipping
To unf_sten the shelves, remove the eo_io.
screw holding each suppoll bracket and
pull the brackets out of their holes.
To Reposition Shelw.s
Reposition four shelf supports to desired
height tk_r each shelf. Place shell' with its
grooved side down on the shelf' supports.
S_.gSh*.
on Support
Make sure the shelf supports lit into the Bra_:ket
grooves in the shel£ This will help prevent
the shelf from sliding forward or backward.
To Attach (;lass Doors
To protect the glass doors during shipping, they were
packaged inside the base of the TV cabinet.
1 The hinges are already mounted to the cabinet. Remove
the tape covering the hinges, pull them outward to their
"()pen" position, and slide the glass doors into them.
2 Remove the tape covering the retaining screws on the
hinges and securely tighten the screws against the glass
door. Close the door and inspect it. The margins may be
adjusted if desired by slightly loosening the screws on the
hinges and gently sliding the door as needed. Then
retighten the screws.
3 Attach a Push Plate to the top of each door where it
contacts the magnetic catch. First attach the adhesive pad
over the top of the door, and then slide the push plate over
the pad.
3 Connect antenna or cable-TV system.
Most antenna or cable-TV systems can be connected as
shown here. _*_, _,._..,
@
• Details,]or connecting a home antenna to your TF are on page 41.
• Derails[or connecting a table-TV _ystem to your TV are on
pages 42-43.
• Derails/or connecting a VCR to your TV a_ _ on pages 46-4Z
4 Attach power cord.
First attach the fiat end of ........ .,, _
8_ek of TV %
the power cord / .........
completely into the
connector on the back of _
your TV, and then plug .......
the other end into a wall DoTh_ N0tThi_
outlet.
Be sure to insert the plug completely.
5 Install batteries in remote controls.
D_,tails are on page 4.
Turn on TV, adjust the volume, and select a channel.
1 To turn on the TV, press the TV button on the master remote
or press the POWERbutton on the simple remote. When
using the remote, remember to point it at the front of the
TV.
_rBugons
2 Press the VOLUME up or down button to adjust the volume to
a desired level.
3 Press the CHANNEL up or down button to select the next
channel in memory. You can also press two number
buttons to select a channel. Channels 2-13 and 91 were
programmed into the channel memory at the factory, so
pressing CHANNEL up or down stops at these channels only.
When you start the autoprogramming feature (described
next), your set will automatically scan through all channels
and place the active channels for your area into its channel
memory.
Adjust PICTURE TILT switches if necessary.
This model has an extra large color picture
tube. The effects of geomagnetism (Earth's
magnetic field) may cause the picture to tilt
slightly.
The POLARITY and STRENGTH
switches
on the back of the TV let you
compensate for this effect. 1t7the picture
appears tilted, follow these steps to improve it.
1 Make sure the STRENGTHswitch is in the oFg position as the
diagram shows.
L
