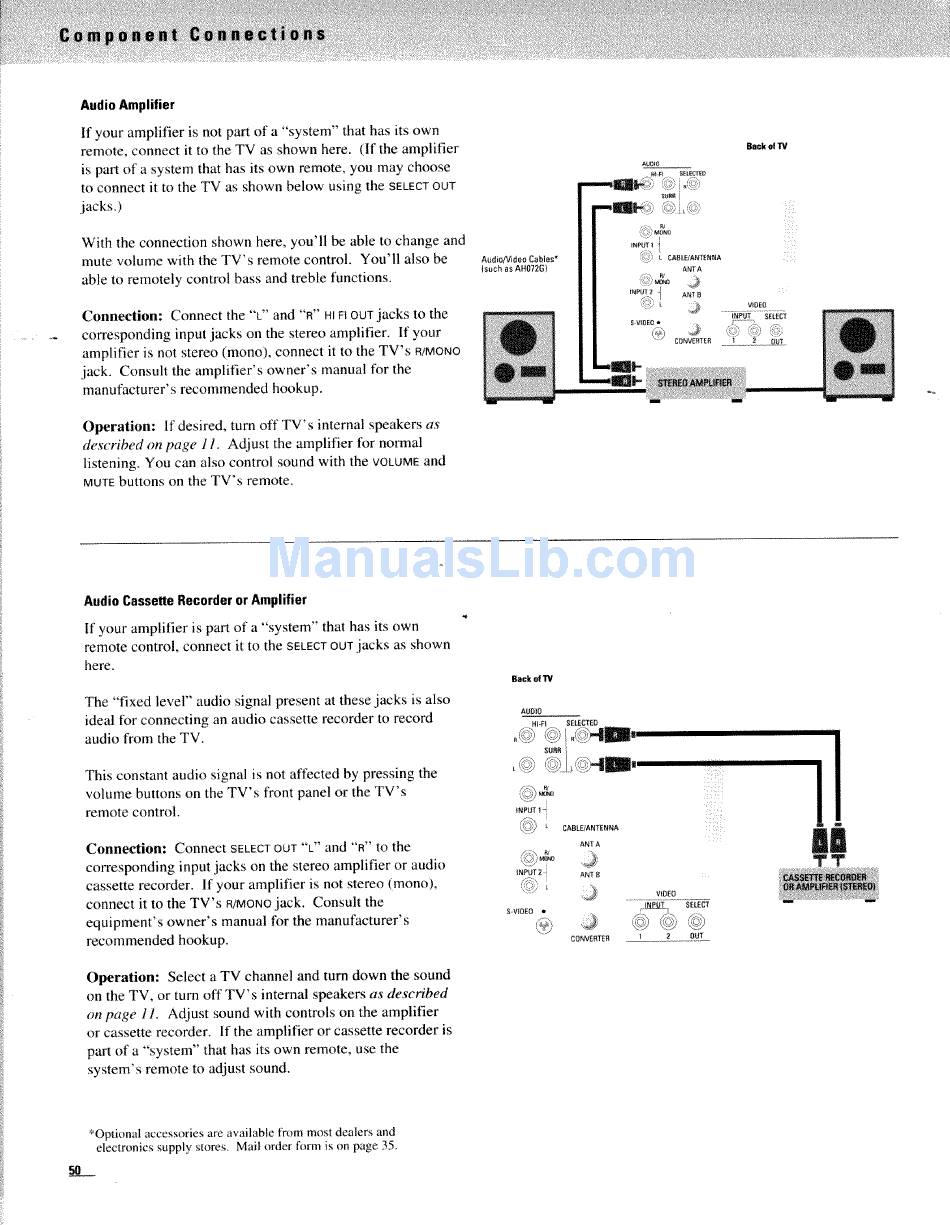

Audio Amplifier
If your amplifier
is not pan of a "system"
that has its own
remote,
connect
it to the TV as shown here.
(If the amplifier
is part of a system that has its own remote, you may choose
to connect
it to the TV as shown below using the SELECTOUT
jacks.)
With the connection
shown here, you'll be able to change and
mute volume with the TV's remote control.
You'll also be
able to remotely
control bass and treble functions.
Connection:
Connect
the "L" and 'W" HIFI OUTjacks to the
corresponding
input jacks on the stereo amplifier.
If your
amplifier
is not stereo (mono),
connect
it to the TV's R!MONO
,jack. Consult the anaplifier's
owner's
manual
tor the
manufacturer's
recommended
hookup.
Operation:
If desired,
turn oft'TV's
internal
speakers
as
described
on page 11. Adjust the amplifier
for normal
listening.
You can also control sound with the VOLUMEand
MUTEbuttons
on the TV's remote.
A_q_
Back of IV
Audio Cassette Recorder or Amplifier
,_
m_
If your amplifier
is part of a syste
that has its own
remote
control,
connect
it to the SELECT OUT jacks
as shown
here.
V
_
....
The "fixed le el audm signal present
at these,lacks
is also
ideal for connecting
an audio cassette
recorder
to record
audio from the TV.
This constant
audio signal is not affected by pressing
the
volume buttons on the TV's front panel or the TV's
remote control.
Connection:
Connect
SELECT OUT "k" and "R" to the
CO_Tesponding input jacks on the stereo amplifier
or audio
cassette
recorder,
If your amplifier
is not stereo (mono),
connect
it to the TV's RiMONOjack.
Consult the
equipment's
owner's
manual
for the manufacturer's
recommended
hookup.
Operation:
Select a TV channel and turn down the sound
on the TV, or turn off TV's internal
speakers
as described
on page
11. Adjust sound with controls
on the amplifier
or cassette recorder.
If the amplifier
or cassette recorder
is
part of a "'system"
that has its own remote, use the
system's
remote to adjust sound,
B_
Of TV
AUDIO
SURB
NPUT I -_
\_>?
CABLEIANTEN_
AN? A
INPUT 2
ANT El
5/,
S VlOgO
•
CONVERTER
IIIII lllllll
_F _,
...................
y!_o .................
_LECT
*OplionaI accessories
are available
from mosI dealers and
electronics
supply stores,
Mail order form is on page 35.
5O
