Back _
AV OUTJack
(AudioN_deo Out}
L, =
{Usually Supplied
with Camcorder)

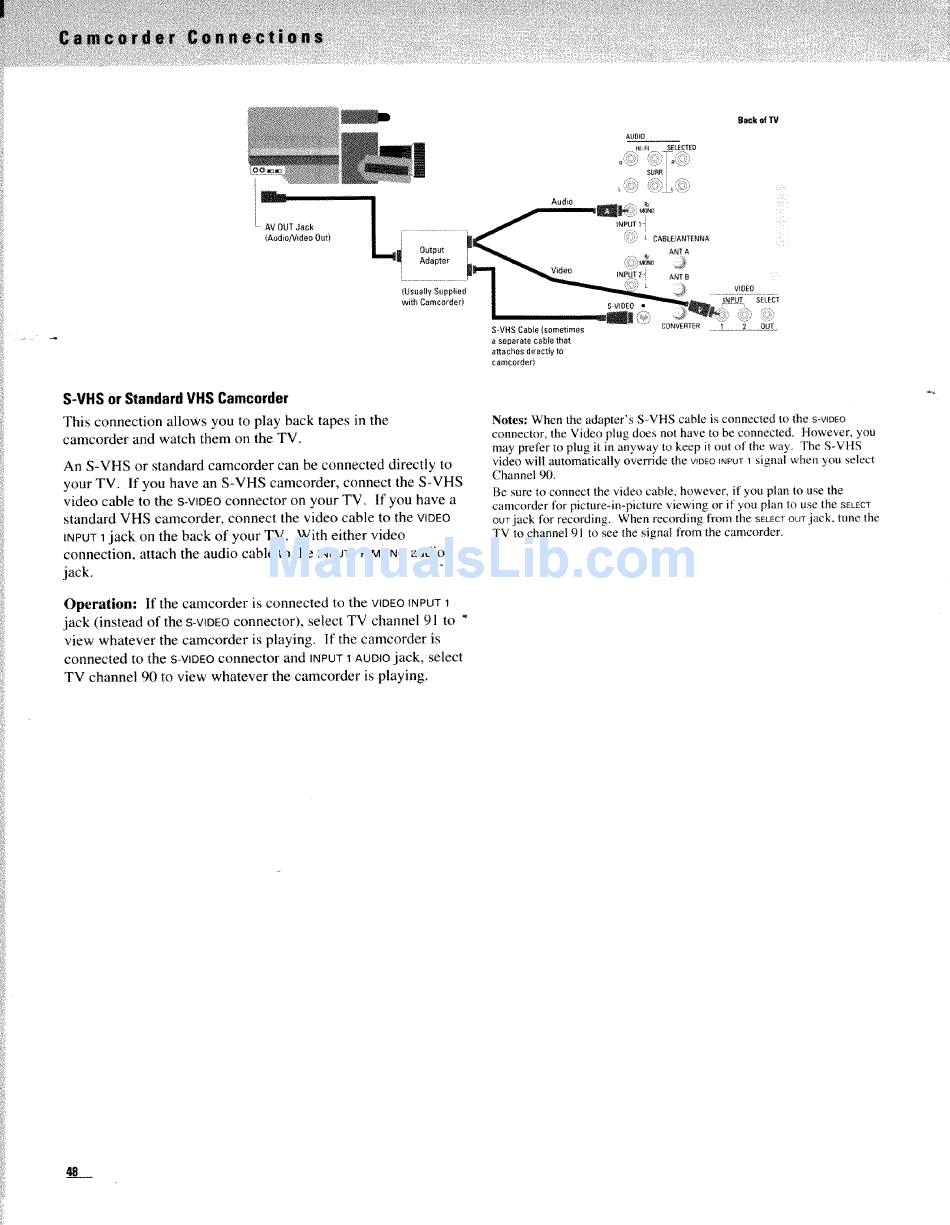

S-VHS or Standard VHS Camcorder
This connection allows you to play back tapes in the
camcorder and watch them on the TV.
An S-VHS or standard camcorder can be connected directly to
your TV. If you have an S-VHS camcorder, connect the S-VHS
video cable to the S-VIDEOconnector on your TV. If you have a
standard VHS camcorder, connect the video cable to the VIDEO
INPUT1 jack on the back of your TV, With either video
connection, attach the audio cable to the INPUT1R/MONOaudio
jack.
Operation: If the camcorder is connected to the VIDEOINPUT1
jack (instead of the S-VIDEO connector), select TV channel 91 to "
view whatever the camcorder is playing. If the camcorder is
connected
to the SoWDEO connector and INPUT1AUDIOjack, select
TV channel 90 to view whatever the camcorder is playing.
Aodio
S-VHS Cable (sometimes
a separate cable that
arlaches directly to
camcorderl
Notes: When the adapter's S-VHS cable is connected to the S-WDEO
connector, the Video plug does not have to be connected. However, you
may prefer to plug it in anyway to keep it out of the way, The SoVHS
video will automatically override the VIDEO _NPU'r t signal when you select
Channel 90.
Be sure to connect the video cable, however, if you plan to use the
camcorder for picture-in-picture viewing or if you plan to use the seLecv
our jack tk)r recording. When recording from the SELECT O UTjack. tune the
TV m channel 91 to see the signal from the camcorder.
48
