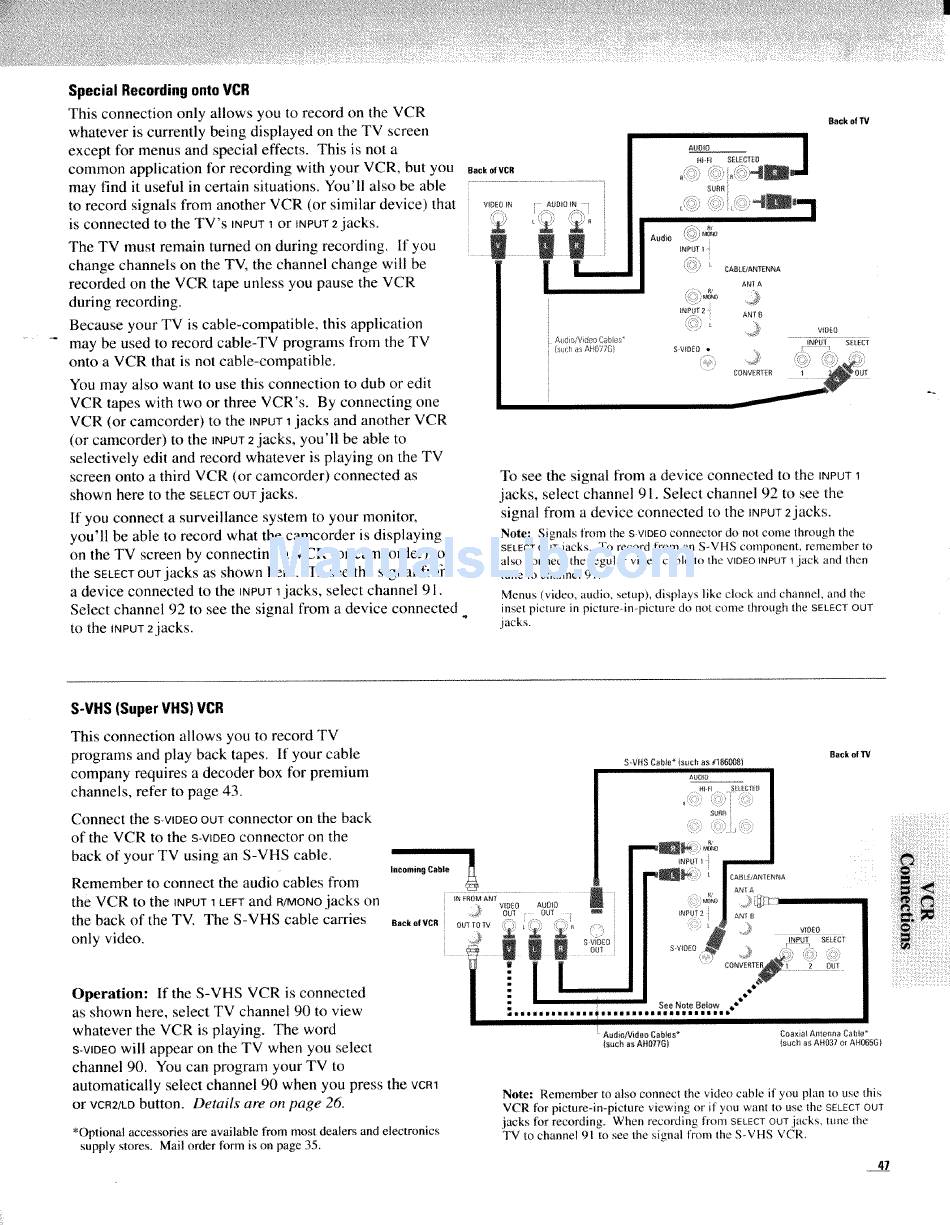

Special Recordingonto VCR
This connection only allows you to record on the VCR
whatever is currently being displayed on the TV screen
except for menus and Sl_cial effects. This is not a
common application for recording with your VCR, but you
may find it useful in certain situations. You'll also be able
to record signals from another VCR (or similar device) that
is connected to the TV's INPUT 1 or INPUT 2.jacks.
The TV must remain turned on during recording. If you
change channels on the TV, the channel change will be
recorded on the VCR tape unless you pause the VCR
during recording.
Because your TV is cable-compatible, this application
may be used to record cable-TV programs from the TV
onto a VCR that is not cable-compatible.
You may also want to use this connection to dub or edit
VCR tapes with two or three VCR's. By connecting one
VCR (or camcorder) to the INPUT 1jacks and another VCR
(or camcorder) to the INPUT 2jacks, you'll be able to
selectively edit and record whatever is playing on the TV
screen onto a third VCR (or camcorder) connected as
shown here to the SELECT O UTjacks.
If you connect a surveillance system to your monitor,
you'll be able to record what the camcorder is displaying
on the TV screen by connecting a VCR (or camcorder) to
the SELECT OUT jacks as shown here. To see the signal froin
a device connected to the INPUT 3jacks, select channel 91.
Select channel 92 to see the signal t¥om a device connected,
to the INPUT 2jacks.
Back ofTV
Back _VCR
V_O_O IN AUO_OIN 3
i t--- i
SUBR
_NPLtT _ !
ANT A
NPUT 2
!:(' ANT 8
:! L
VfOE0
(sucl as AH(YG S VIDEO *
CONV[SfER
To see the signal from a device connected to the INPUT 3
jacks, select channel 9l. Select channel 92 to see the
signal tYom a device connected to the _NPUT 2 jacks.
Note: Signals from the S-VIDEO connector do not come through the
SELECT OUTjacks. To record from an S-VHS componenL remember to
also connect the regular _ideo cable to the VIDEOINPUT1jack and then
tune to channel 91,
Menus (video_ audio, setup), displays like cl(_k and channel, and the
inset picture in pictureqn-picture
do not come dn'ongh the SELECTOUT
jacks.
S-VHS (SuperVHS) VCR
This connection allows you to record TV
programs and play back tapes. If your cable
company requires a decoder box for premium
channels, refer to page 43.
Connect the S-WDEO OUTconnector on the back
of the VCR to the S_WDEO connector on the
back of your TV using an S-VHS cable.
Remember to connect the audio cables {¥()m
the VCR to the INPUT 1LEFT and R/MONO jacks on
the back of the T'v: The S-VHS cable carries
only video.
S-VHS CaNe _ {$1tch as #1860081
Back of13/
Operation: If the S-VHS VCR is connected
as shown here, select TV channel 90 to view
whatever the VCR is playing. The word
S-WDEO will appear on the TV when you select
channel 90. You can program your TV to
automatically select channel 90 when you press the vcm
or VCR2/LD b utton. Details art, on page 26.
*Optional accessories are available from mos| dealers and electronics
supply stores. Mail order form is on page 35,
C0a×ia_Antel)Iia Cable _
(suchas AH0776} (s_ch as AH03? 0_AH065GI
Note: Remember
to also connect the video cable if yon plan to use this
VCR tk)r picture-in-picture viewing or if you want to use the SELECTOUT
jacks for recording. When recording f?onl SELECTOOTjacks, tune the
TV to channel 91 to see the signal from the S-VttS VCR,
