BoSom of Camco_er
Audio/Video Inp_t CaNe i
(UsIJ_I_/StlpNied wffh
L
AV IN Jack camcorde_)
IAudio/Vkleo Tel
i
Audio
I
NO _Om_oO oece_sai¥ 1_8 S VIDEO
Back of TV c_e_tor, TOre_o_J _ _rVHS, p_'t
_UD_O
HIF_ ,%_CT_D
INPUT _ Video
....._, C_t_aNTEN"A_,_T
A
INPUT 2
ANTB
CONV[RT[R 1
2
OUT

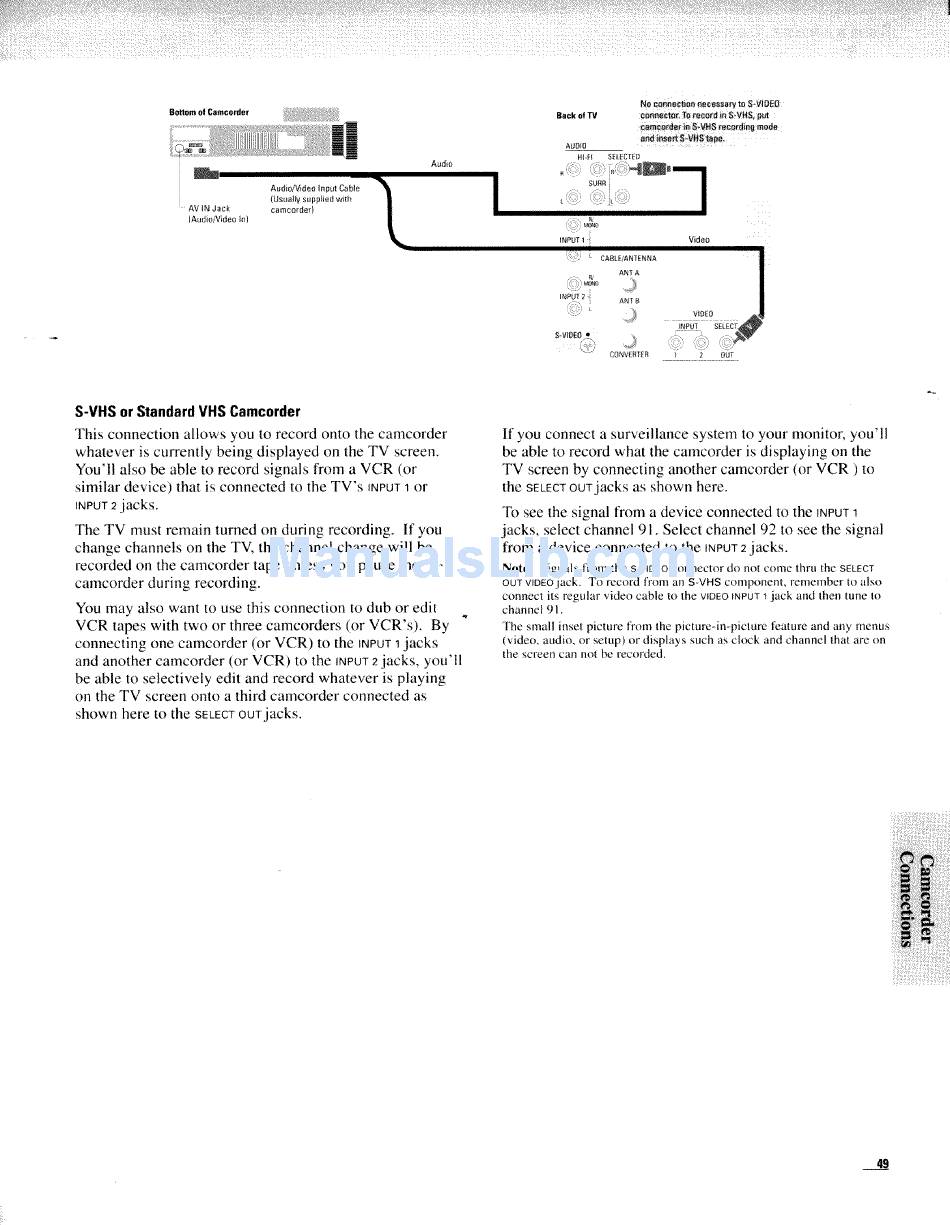

S-VHS or Standard VHS Camcorder
This connection allows you to record onto the camcorder
whatever is currently being displayed on the TV screen.
You'l! also be able to record signals from a VCR (or
similar device) that is connected to the TV's _NPUT _ or
INPUT 2
jacks.
The TV must remain turned on during recording, If you
change channels on the TV, the channel change will be
recorded on the camcorder tape unless you pause the
camcorder during recording.
You may also want to use this connection to dub or edit
VCR tapes with two or three camcorders (or VCR's). By
connecting one camcorder (or VCR) to the _NPOT _ jacks
and another carucorder (or VCR) to the _NPOT 2 jacks, you'll
be able to selectively edit and record whatever is playing
on the TV screen onto a third camcorder connected as
shown here to the SELECT O UT jacks.
If you connect a surveillance system to your monitor, you'll
be able m record what the camcorder is displaying on the
TV screen by connecting another camcorder (or VCR ) to
the SELECT O UT jacks as shown here.
_1_)see the signal from a device connected to the INPUT1
jacks, select channel 91. Select channel 92 to see the signal
from a device connected to the _NPOT 2 jacks.
Note: Signals tYomthe s VIDEO com_ector do not come thruthe SELECT
OUT VIDEO j ack. "l'o record from an SVHS componenL remember to also
connect its regular video cable to the VIDEO INPUT 1jack and then tune to
channel 9 I.
The small inset picture from the picture-m-picture li:,atumand any menus
(video, audio, or setup) or displays such as clock and channel that are on
the screen can not be recorded.
