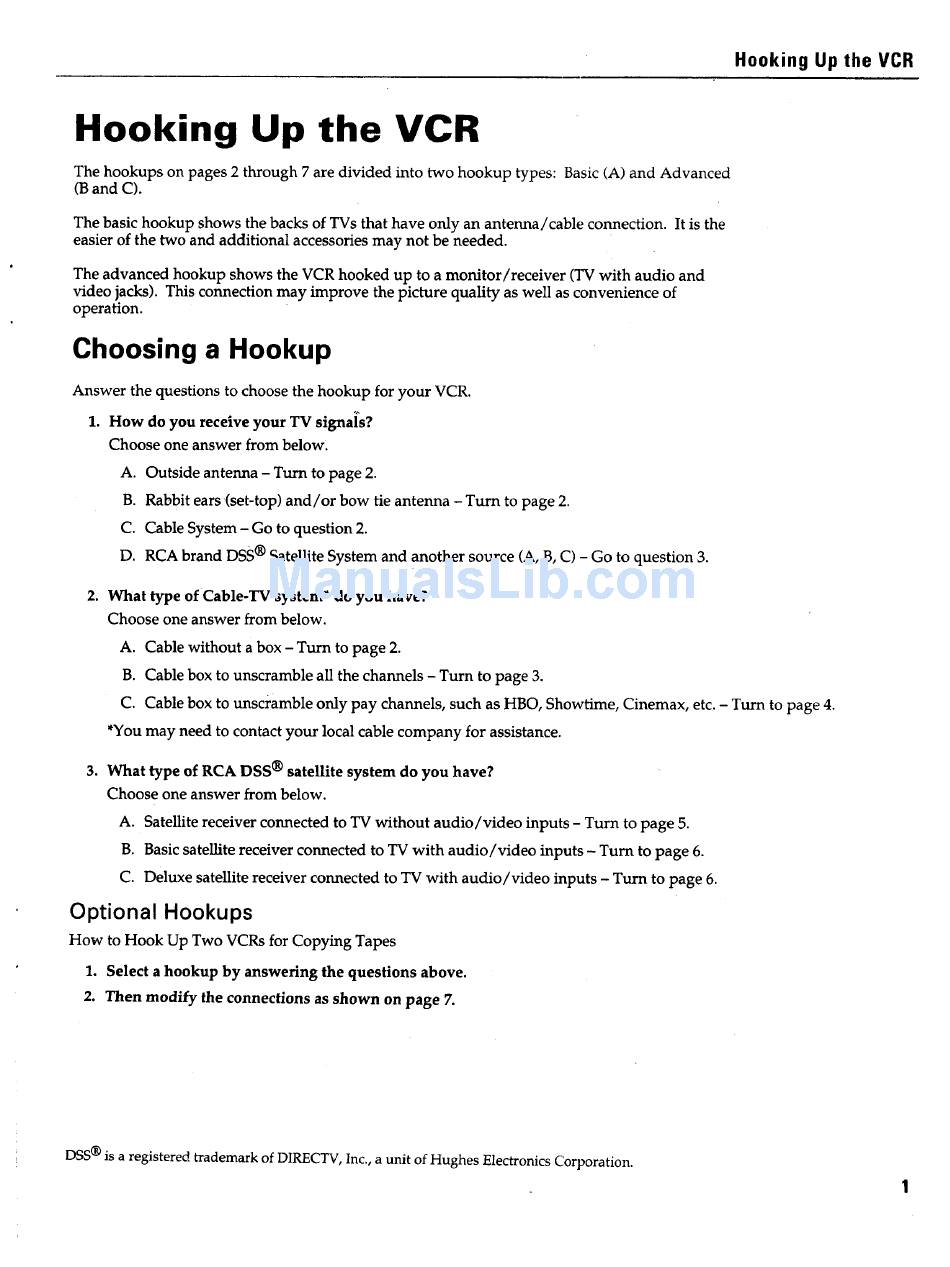

Hooking Up the VCR
Hooking Up the VCR
The hookups on pages 2 through 7 are divided into two hookup types: Basic (A) and Advanced
(B and C).
The basic hookup shows the backs of TVs that have only an antenna/cable connection. It is the
easier of the two and additional accessories may not be needed.
The advanced hookup shows the VCR hooked up to a monitor/receiver (TV with audio and
video jacks). This connection may improve the picture quality as well as convenience of
operation.
Choosing a Hookup
Answer the questions to choose the hookup for your VCR.
1. How do you receive your TV signals?
Choose one answer from below.
A. Outside antenna - Turn to page 2.
B. Rabbit ears (set-top) and/or bow tie antenna - Turn to page 2.
C. Cable System - Go to question 2.
D. RCA brand DSS® Satellite System and another source (A, B, C) - Go to question 3.
2. What type of Cable-TV system* do you have?
Choose one answer from below.
A. Cable without a box - Turn to page 2.
B. Cable box to unscramble all the channels - Turn to page 3.
C. Cable box to unscramble only pay channels, such as HBO, Showtime, Cinemax, etc. - Turn to page 4.
*You may need to contact your local cable company for assistance.
3. What type of RCA DSS ® satellite system do you have?
Choose one answer from below.
A. Satellite receiver connected to "IV without audio/video inputs - Turn to page 5.
B. Basic satellite receiver connected to TV with audio/video inputs - Turn to page 6.
C. Deluxe satellite receiver connected to TV with audio/video inputs - Turn to page 6.
Optional Hookups
How to Hook Up Two VCRs for Copying Tapes
1. Select a hookup by answering the questions above.
2. Then modify the connections as shown on page 7.
DSS ® is a registered trademark of DIRECTV, Inc., a unit of Hughes Electronics Corporation.
