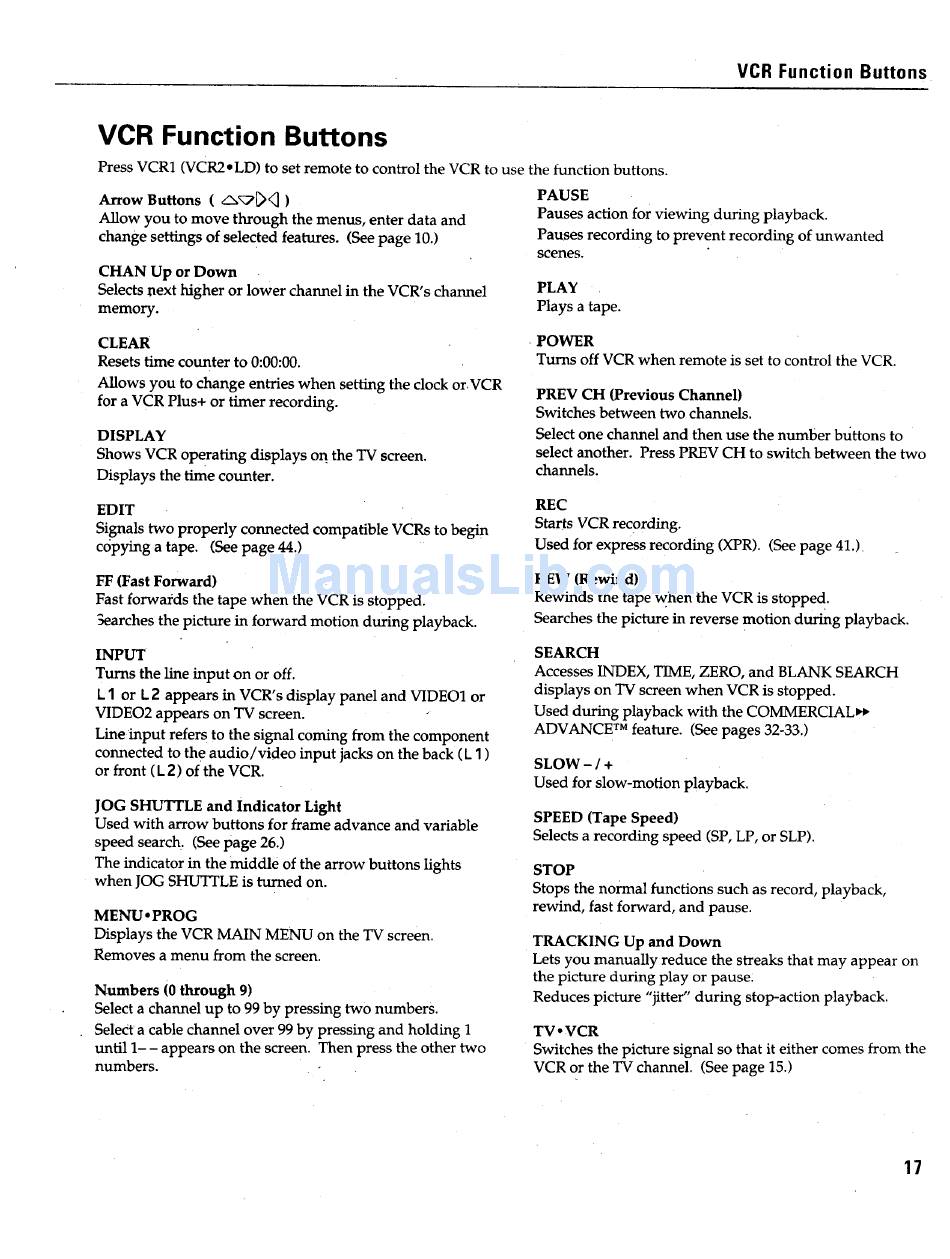

VCR Function Buttons
VCR Function Buttons
Press VCR1 (VCR2,LD) to set remote to control the VCR to use the function buttons.
Arrow Buttons ( /'-_ )
Allow you to move through the menus, enter data and
change settings of selected features. (See page 10.)
CHAN Up or Down
Selects next higher or lower channel in the VCR's channel
memory.
PAUSE
Pauses action for viewing during playback.
Pauses recording to prevent recording of unwanted
scenes.
PLAY
Plays a tape.
CLEAR
Resets time counter to 0:00:00.
Allows you to change entries when setting the clock or.VCR
for a VCR Plus+ or timer recording.
DISPLAY
Shows VCR oPerating displays on the TV screen.
Displays the time counter.
EDIT
Signals two properly connected compatible VCRs to begin
copying a tape. (See page 44.)
POWER
Turns off VCR when remote is set to control the VCR.
PREV CH (Previous Channel)
Switches between two channels.
Select one channel and then use the number buttons to
select another. Press PREV CH to switch between the two
channels.
REC
Starts VCR recording.
Used for express recording (XPR). (See page 41.)
FF (Fast Forward)
Fast forwards the tape when the VCR is stopped.
_earches the picture in forward motion during playback.
REW (Rewind)
Rewinds the tape when the VCR is stopped.
Searches the picture in reverse motion during playback.
INPUT
Turns the line input on or off.
L 1 or L 2 appears in VCR's display panel and VIDEO1 or
VIDEO2 appears on TV screen.
Line input refers to the signal coming from the component
connected to the audio/video input jacks on the back (L 1 )
or front ( L2) of the VCR.
JOG SHUTTLE and Indicator Light
Used with arrow buttons for frame advance and variable
speed search, (See page 26.)
The indicator in the middle of the arrow buttons lights
when JOG SHUTTLE is turned on.
MENU-PROG
Displays the VCR MAIN MENU on the TV screen.
Removes a menu from the screen.
Numbers (0 through 9)
Select a channel up to 99 by pressing two numbers.
Select a cable channel over 99 by pressing and holding 1
until 1- - appears on the screen. Then press the other two
numbers.
SEARCH
Accesses INDEX, TIME, ZERO, and BLANK SEARCH
displays on TV screen when VCR is stopped.
Used during playback with the COMMERCIAL_
ADVANCE
TM
feature. (See pages 32-33.)
SLOW - / +
Used for slow-motion playback.
SPEED (Tape Speed)
Selects a recording speed (SP, LP, or SLP).
STOP
Stops the normal functions such as record, playback,
rewind, fast forward, and pause.
TRACKING Up and Down
Lets you manually reduce the streaks that may appear on
the picture during play or pause.
Reduces picture "jitter" during stop-action playback.
TV °¥CR
Switches the picture signal so that it either comes from the
VCR or the TV channel. (See page 15.)
17
