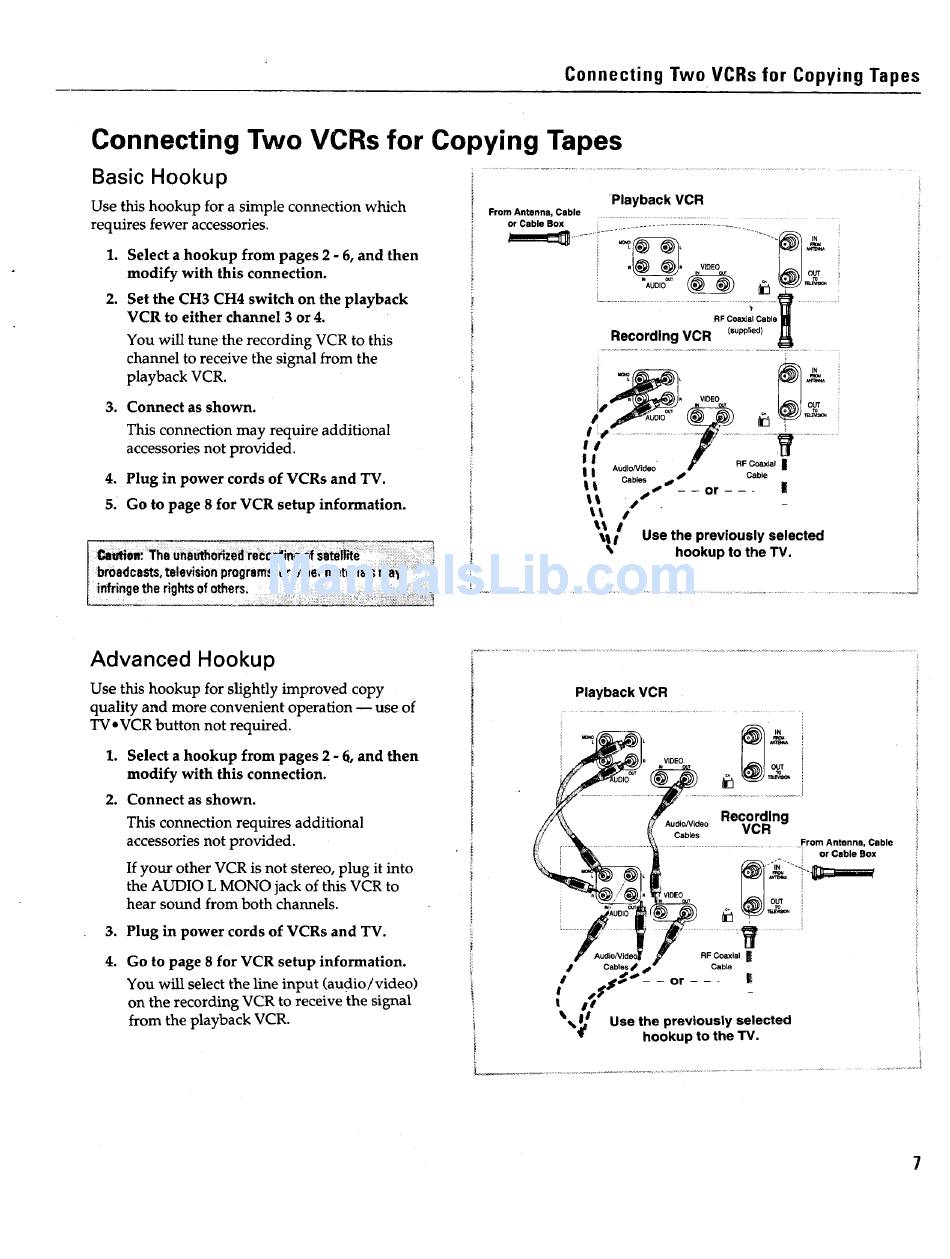

Connecting Two VCRs for Copying Tapes
Connecting Two VCRs for Copying Tapes
Basic Hookup
Use this hookup for a simple connection which
requires fewer accessories.
,
2.
Select a hookup from pages 2 - 6, and then
modify with this connection.
Set the CH3 CH4 switch on the playback
VCR to either channel 3 or 4.
You will tune the recording VCR to this
channel to receive the signal from the
playback VCR.
3. Connect as shown.
This connection may require additional
accessories not provided.
4. Plug in power cords of VCRs and TV.
5. Go to page 8 for VCR setup information.
Playback VCR
From Antenna, Cable
or Cable Box ii_ -- _-ii_....22_222_._i__._. ............
RF Coaxial Cable
Recording VCR (eupp,ea)
. VIDEO
I I AudIoN deo Cable lal
_
Cables
d," or-- |
jS _' - _
tt •
tl I
_t%l Use the previously selected
hookup to the TV.
Advanced Hookup
Use this hookup for slightly improved copy
quality arid more convenient operation -- use of
TV .VCR button not required.
lo
2.
Select a hookup from pages 2 - 6, and then
modify with this connection.
Connect as shown.
This connection requires additional
accessories not provided.
If your other VCR is not stereo, plug it into
the AUDIO L MONO jack of this VCR to
hear sound from both channels.
3. Plug in power cords of VCRs and TV.
4,
Go to page 8 for VCR setup information.
You will select the line input (audio/video)
on the recording VCR to receive the signal
from the playback VCR.
Playback VCR
VIDEO (X/T
il
Audio/Video
Recording
Cebl_ VCR
From Antenna, Cable
.-. : or Cable Box
VIDEO OUT i
RF Coaxial
• Cables 4# .O CabLe
I-
_,,_**_ L _ or - - -
B
,,:r"
i1
• %_1 Use the previously selected
ILr
hookup to the TV.
