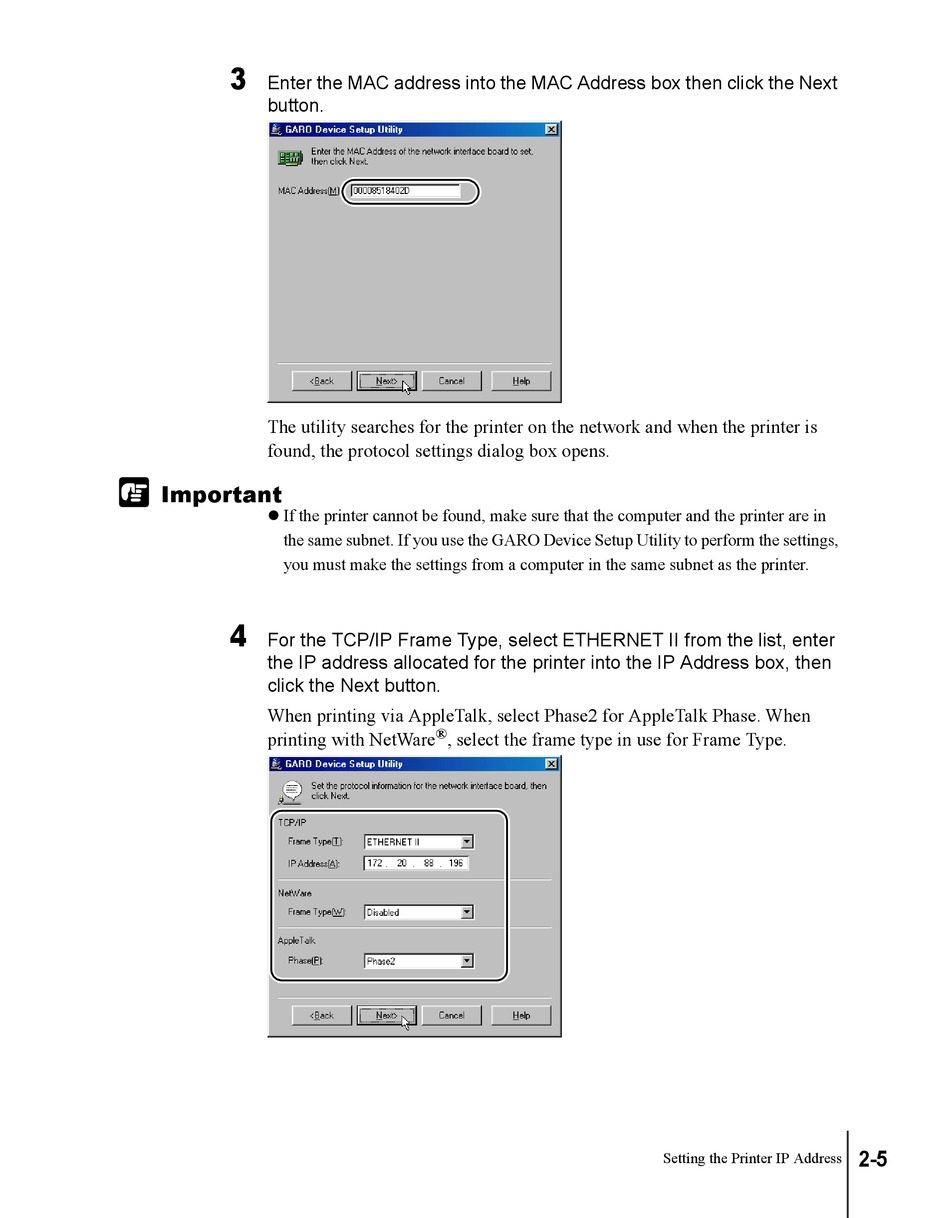

Canon imagePROGRAF W7200 Network Manual page 19

3
Enter the MAC address into the MAC Address box then click the Next
button.
The utility searches for the printer on the network and when the printer is
found, the protocol settings dialog box opens.
Important
z If the printer cannot be found, make sure that the computer and the printer are in
the same subnet. If you use the GARO Device Setup Utility to perform the settings,
you must make the settings from a computer in the same subnet as the printer.
4
For the TCP/IP Frame Type, select ETHERNET II from the list, enter
the IP address allocated for the printer into the IP Address box, then
click the Next button.
When printing via AppleTalk, select Phase2 for AppleTalk Phase. When
printing with NetWare
®
, select the frame type in use for Frame Type.
Setting the Printer IP Address
2-5
