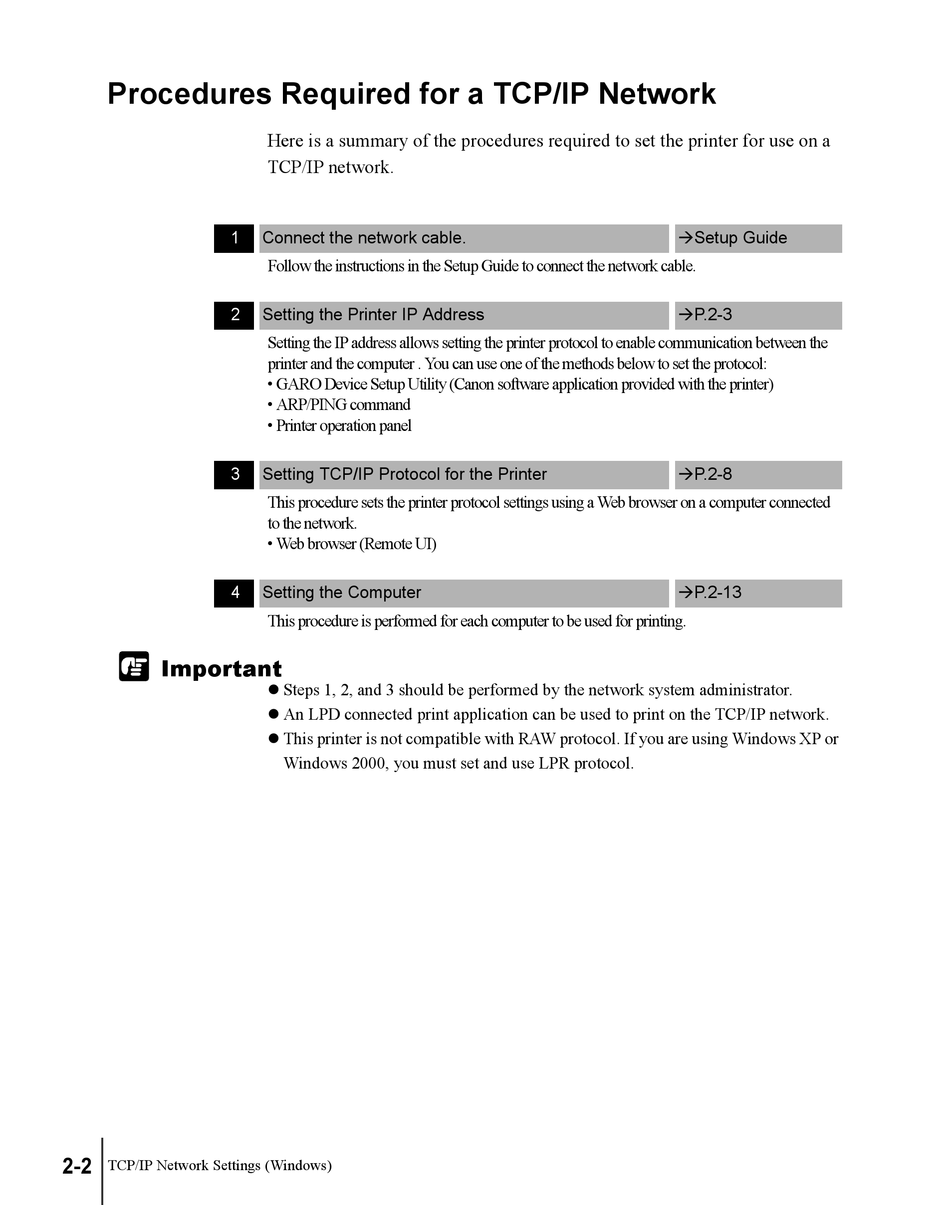

Procedures Required for a TCP/IP Network

1
2
3
4
Important
2-2
TCP/IP Network Settings (Windows)
Here is a summary of the procedures required to set the printer for use on a
TCP/IP network.
Connect the network cable.
Follow the instructions in the Setup Guide to connect the network cable.
Setting the Printer IP Address
Setting the IP address allows setting the printer protocol to enable communication between the
printer and the computer . You can use one of the methods below to set the protocol:
• GARO Device Setup Utility (Canon software application provided with the printer)
• ARP/PING command
• Printer operation panel
Setting TCP/IP Protocol for the Printer
This procedure sets the printer protocol settings using a Web browser on a computer connected
to the network.
• Web browser (Remote UI)
Setting the Computer
This procedure is performed for each computer to be used for printing.
z Steps 1, 2, and 3 should be performed by the network system administrator.
z An LPD connected print application can be used to print on the TCP/IP network.
z This printer is not compatible with RAW protocol. If you are using Windows XP or
Windows 2000, you must set and use LPR protocol.
ÆSetup Guide
ÆP.2-3
ÆP.2-8
ÆP.2-13
