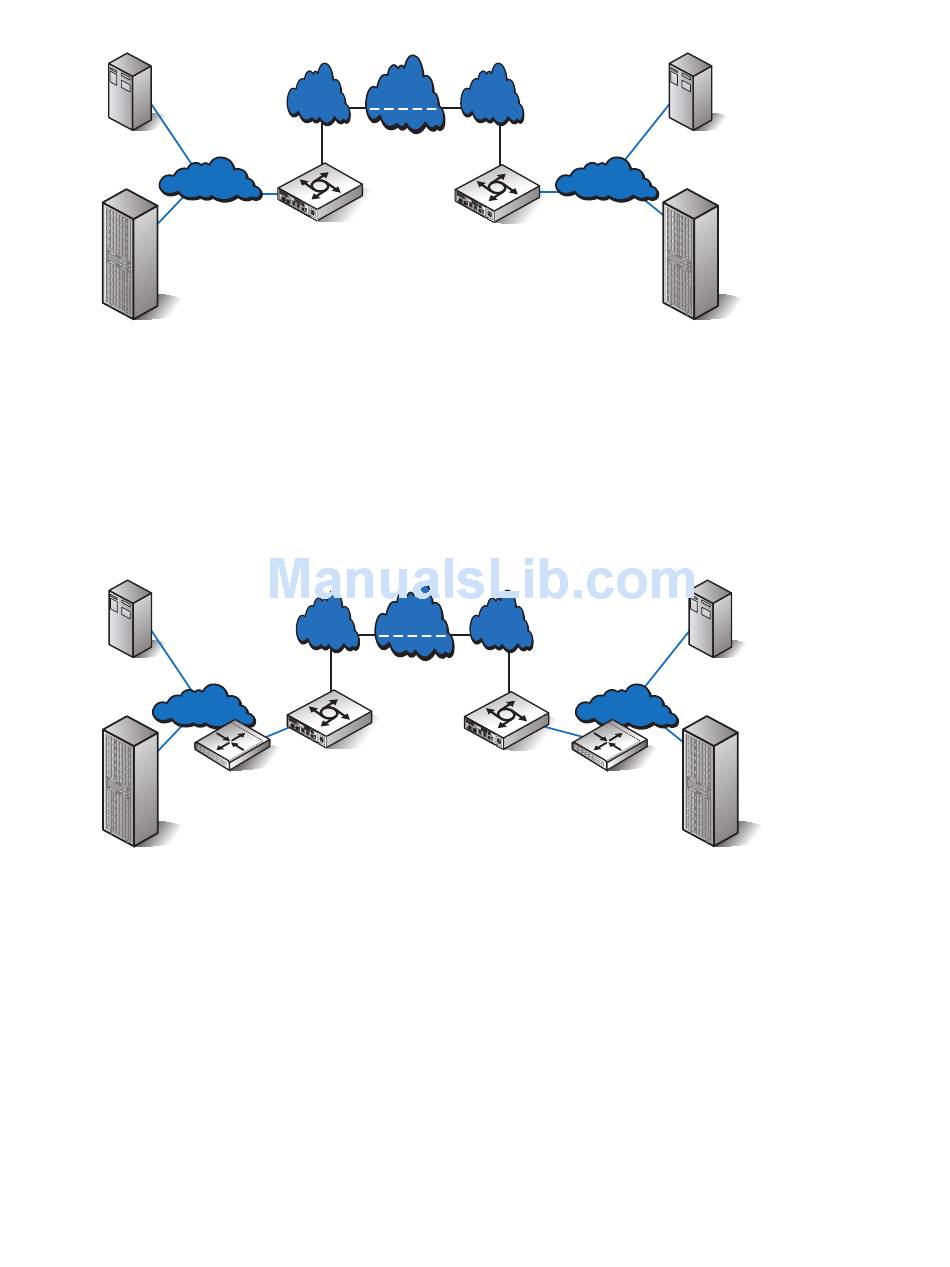

Figure 91 shows single-path connectivity for the servers and storage. This is the lowest-cost
implementation with no redundancy.
Local FC
servers
Fabric A1
Local
storage system
Figure 91 IP Distance Gateway basic FCIP configuration with single-path connectivity
.
Figure 92 shows a configuration using the IP Distance Gateway and B-series switches with Integrated
Routing. This provides fabric isolation between the local and remote fabrics, allowing device access
without merging the fabrics. This can be implemented in all supported IP Distance Gateway
configurations using a Fibre Channel switch with Integrated Routing or a B-series router configured
for Fibre Channel routing.
Local FC
servers
Fabric A1
Local
storage system
Figure 92 IP Distance Gateway FCIP with B-series Integrated Routing
.
Figure 94 is similar to Figure
Channel and LAN connections.
302 SAN extension
WAN
LAN
FCIP
GbE
HP Stor
ageW
mpx orks
100
FC1
FC2
MGM T
GE1 IOIO
I
GE2
!
mpx110
WAN
LAN
FCIP
GbE
EX
HP Stor
ageW
mpx orks
100
FC1
FC2
MGM T
GE1 IOIO
I
GE2
!
mpx1 10
89, but offers a higher level of redundancy using additional Fibre
LAN
GbE
Fabric A2
HP Stor
ageW orks
mpx 100
FC1
FC2
MGM
T
GE1 IOIO I
GE2
!
mpx110
storage system
LAN
GbE
Fabric A2
E
HP Stor
ageW orks
mpx 100
FC1
FC2
MGM
T
GE1 IOIO I
GE2
!
mpx1 10
Remote
FC servers
Remote
25263c
Remote
FC servers
Remote
storage system
26626a
