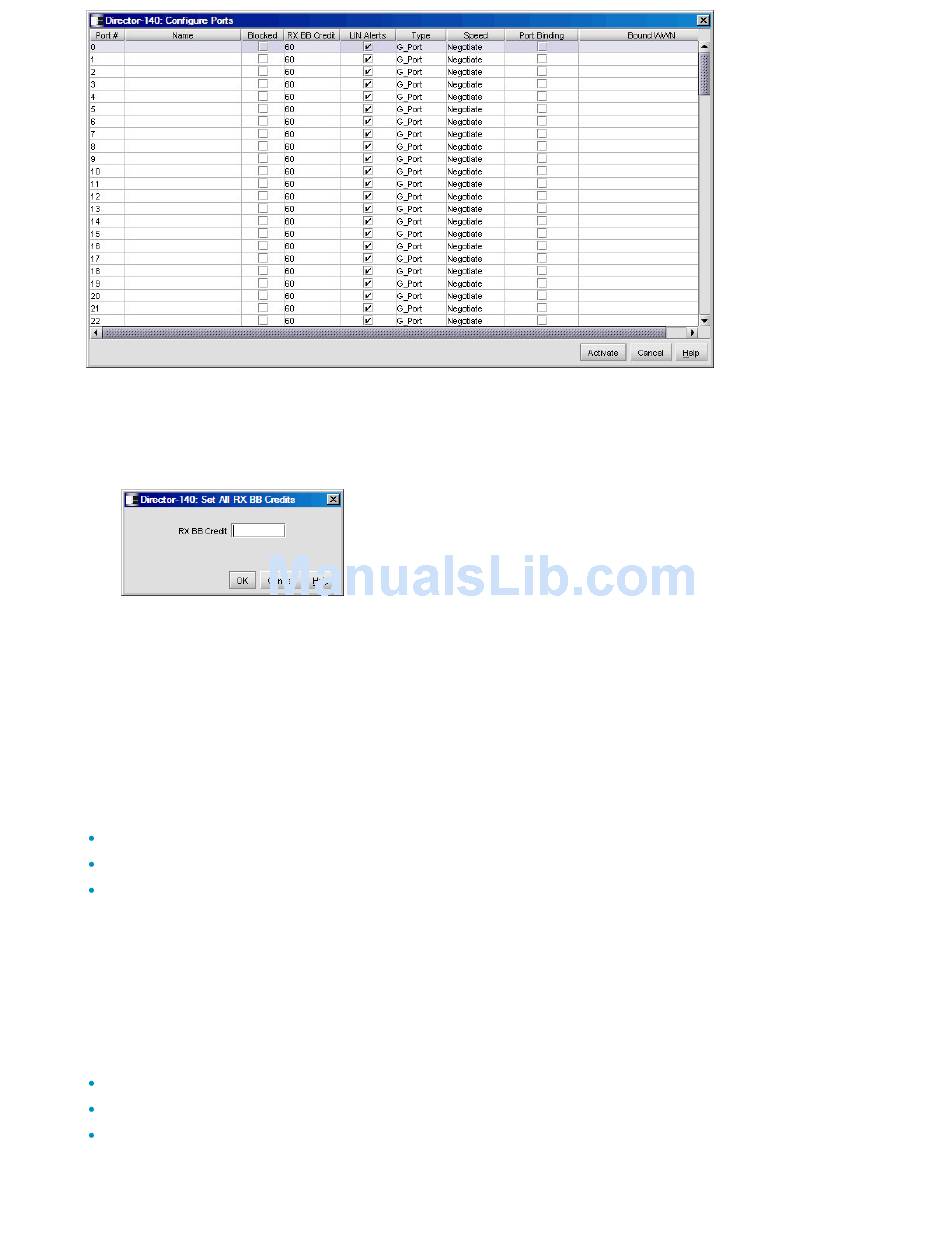

Figure 81 HAFM Configure Ports dialog box
.
Change the RX BB setting as follows:
1. Right-click in the RX BB Credit column to display the Set All RX BB Credits dialog box
Figure 82 Set All RX BB Credits dialog box
.
2. Enter a value and click OK to change the values and return to the Configure Ports dialog box.
3. Click Activate to change the values on the switch.

Multi-protocol long-distance technology

This section describes the following storage replication technologies, which enable data transfer
between SAN networks:
Fibre Channel over Internet
Fibre Channel over
Fibre Channel over

Fibre Channel over Internet Protocol

FCIP connects Fibre Channel fabrics over IP-based networks to form a unified SAN in a single fabric.
FCIP relies on IP-based network services to provide connectivity between fabrics over LANs, MANs,
or WANs.
This section describes the following topics:
FCIP mechanisms, page 291
FCIP link configurations, page 291
FCIP network
290 SAN extension
Protocol, page 290
SONET, page 296
ATM, page 297
considerations, page 293
(Figure 82).
