7003-XXX
Operator panel assembly removal
1.

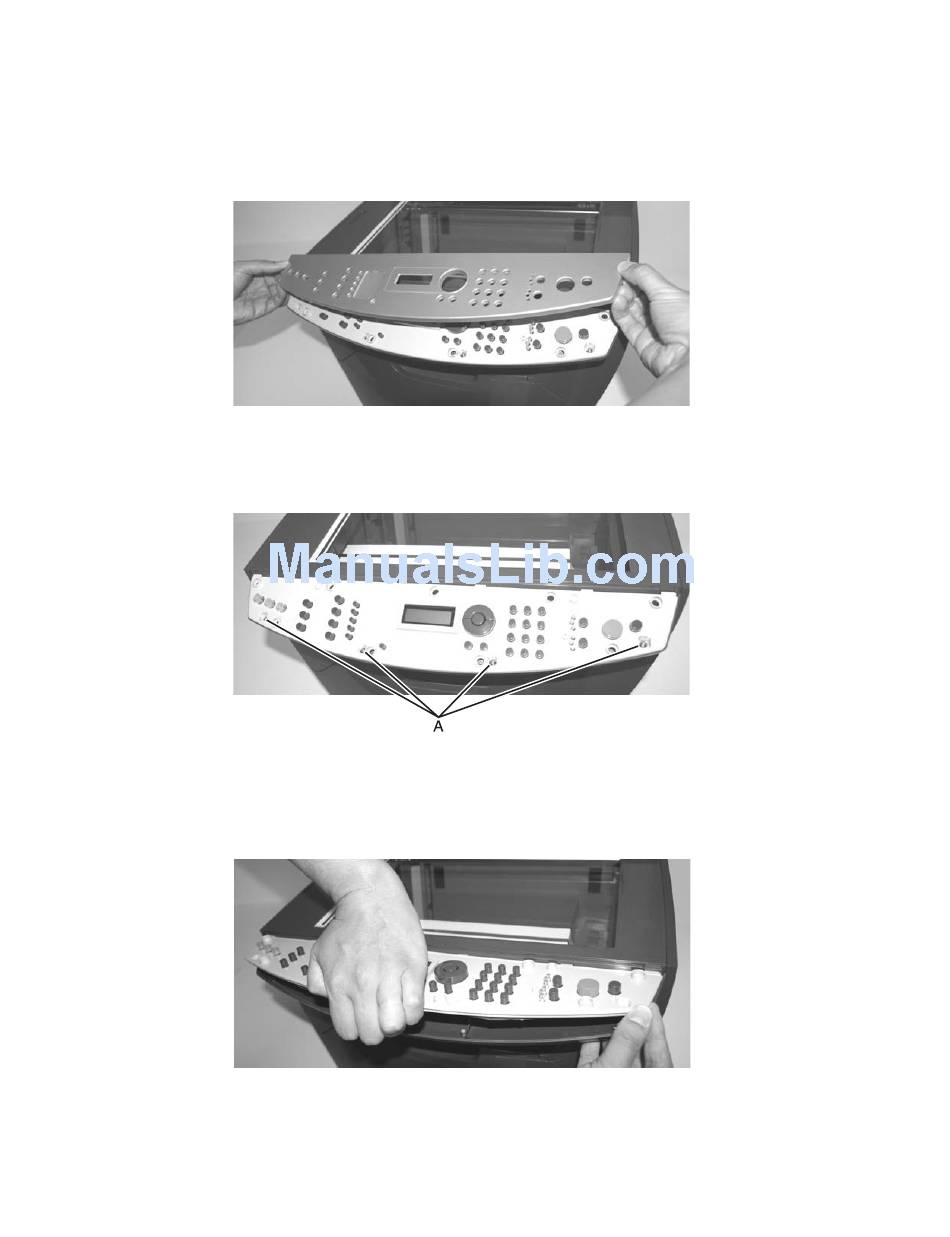

Remove the operator panel overlay.
2.
Remove the 4 screws (A) from that secure the operator panel to the scanner base assembly.
3.
Lift the operator panel assembly up, and gently pull it away from the scanner top.
4-30
