3.

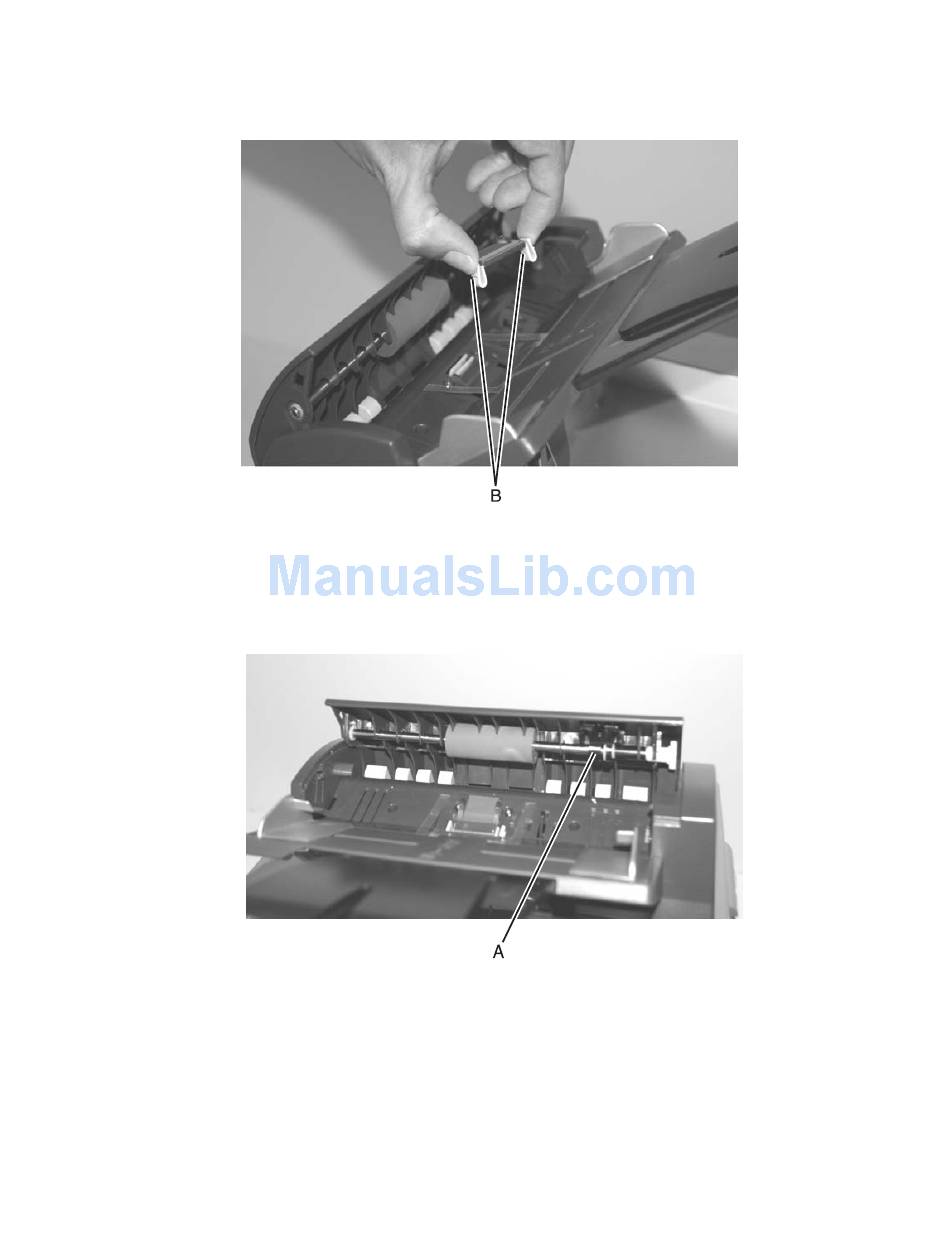

While pinching the green separator pad guide locks (B) inward, lift and remove the ADF separator pad out
of the ADF unit.
Scanner ADF pick roll assembly removal
1.
Open the ADF top cover.
2.
Open the green pick roll hinge (A) by pinching the hinge and gently pulling it down.
7003-XXX
4-39
Repair information
