Modem speaker assembly removal

1.
Remove upper right side cover. Go to
2.
Remove operator panel. Go to
3.

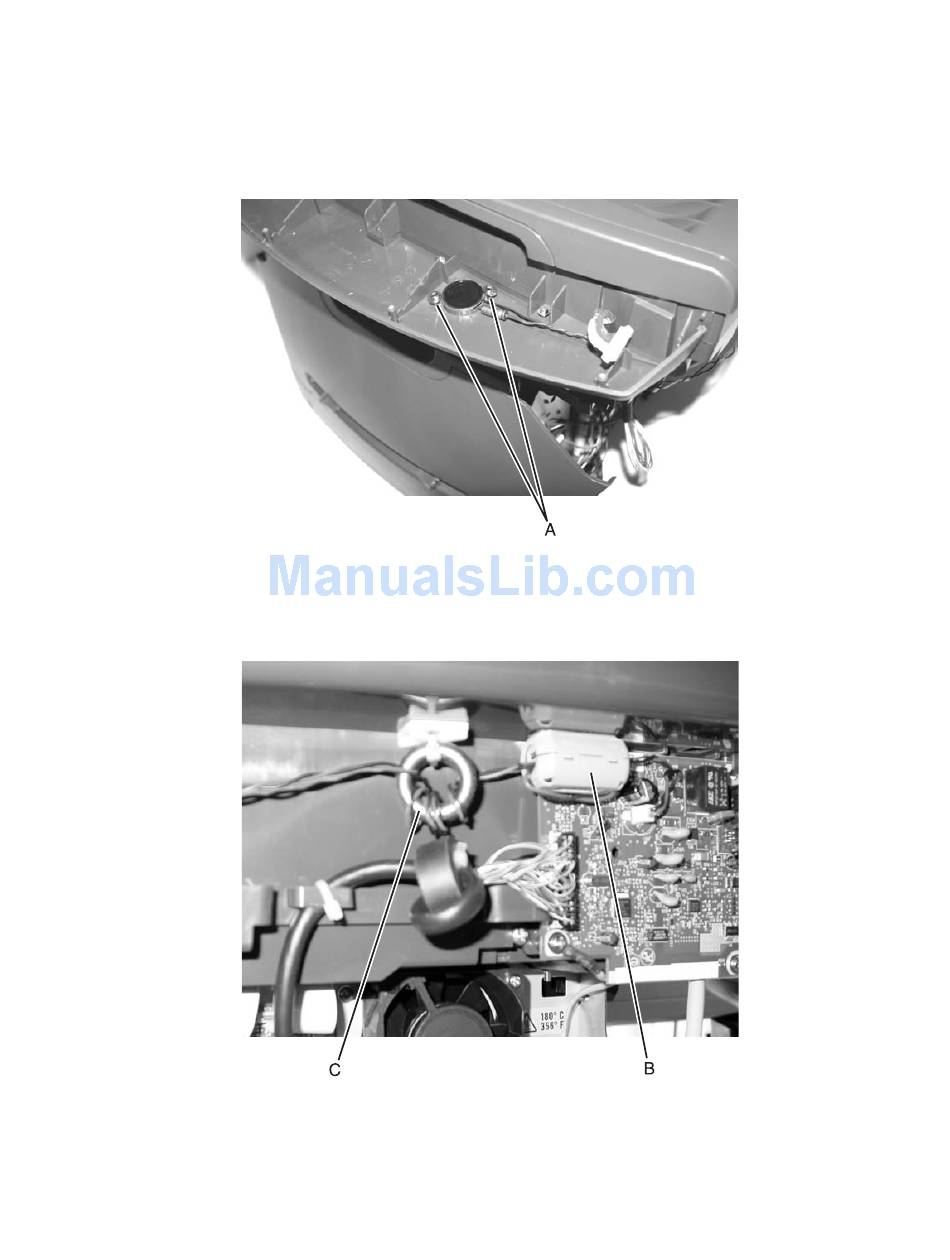

Remove the two screws (A) securing the modem speakers to the scanner base assembly.
4.
Disconnect the modem speaker cable from the modem card.
5.
Remove the snap on toroid (B) from the cable. The toroid will be used on the new modem speaker
assembly.
6.
Unwrap the modem speaker cable from the toroid (C) that is fastened to the scanner base assembly. The
new modem speaker cable will need to be wrapped four times around this toroid when it is installed.
7.
Remove the modem speaker assembly.
"Upper right side cover removal" on page
"Operator panel assembly removal" on page
7003-XXX
4-8.
4-30.
4-55
Repair information
