7003-XXX
Using the test copy page rulers to determine correct scanner registration with build
67 firmware

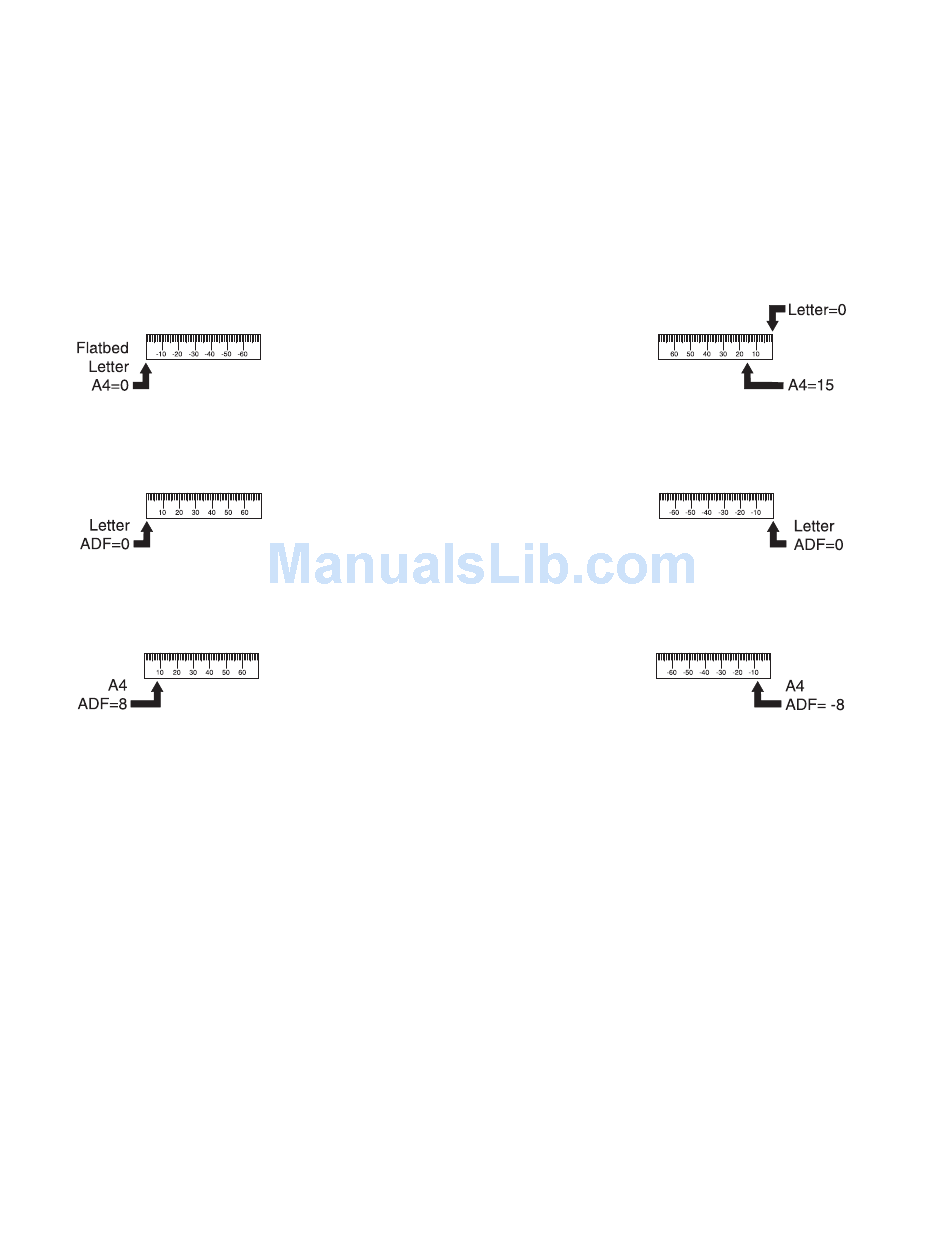

The test copy sheet contains rulers that are used to determine the correct margin position. The following
diagrams show where the margins for letter and A4 paper need to line up on the flatbed or ADF to determine
correct scanner registration.
Correct letter and A4 flatbed registration
Flatbed registration is correct when the left margin equals 0 for letter and A4 paper, and the right margin equals
0 for letter and 15 for A4.
Correct ADF registration with letter paper
The ADF registration for letter paper is correct when the left and right margins equal 0. The following illustration
shows the correct registration.
Correct ADF registration with A4 paper
The ADF registration for letter paper is correct when the left margin equals 8 and right margin equals -8. The
following illustration shows the correct registration.
3-8
