7003-XXX
Lower right side cover removal
1.

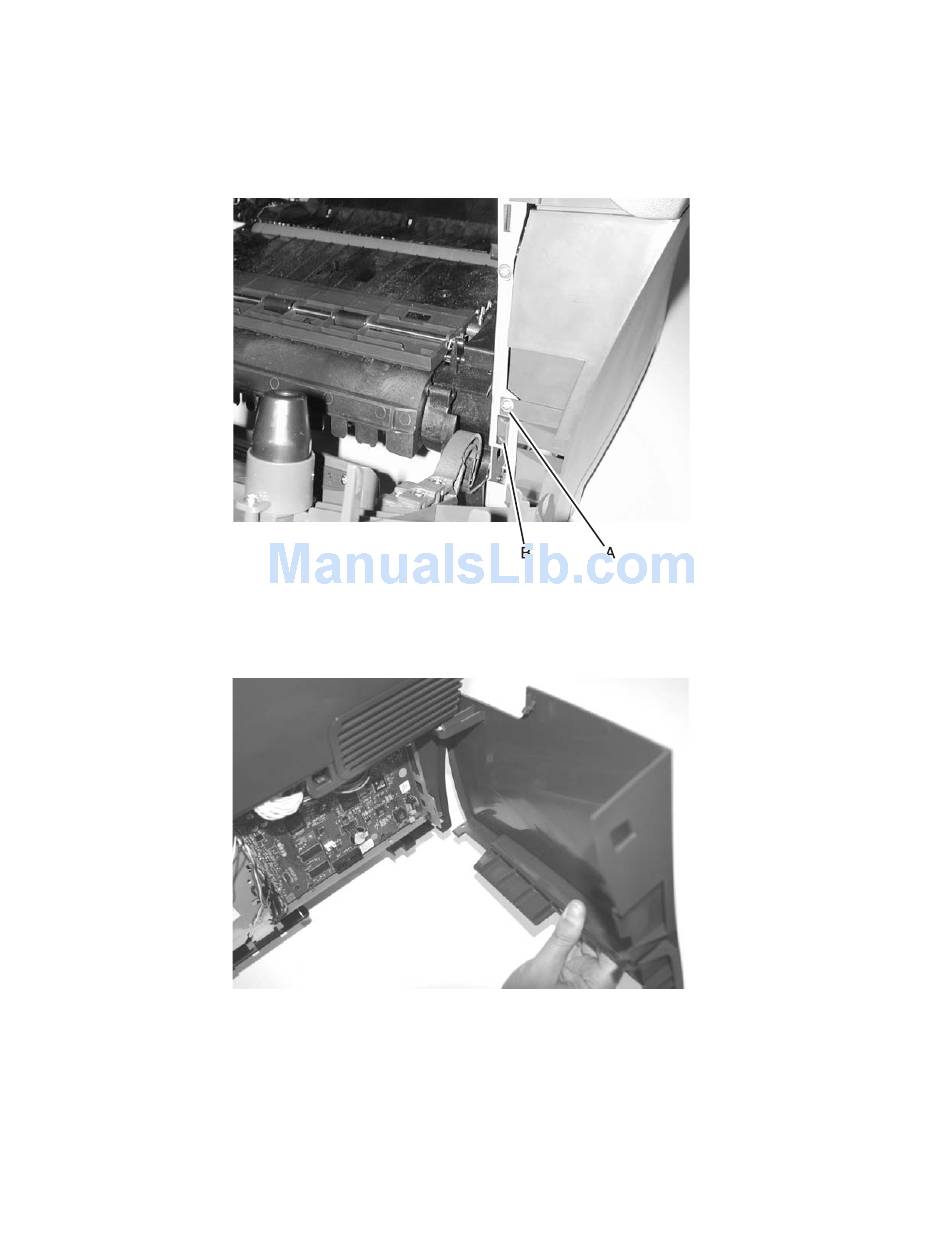

Remove the screw(A) holding the lower right side cover.
2.
Release the latch (B) on the front of the lower right side cover.
3.
Swing the lower right side cover open.
4.
Lift the MFP up slightly, and disengage the lower hinge.
5.
Disengage the upper hinge.
6.
Remove the lower right cover.
