Connections

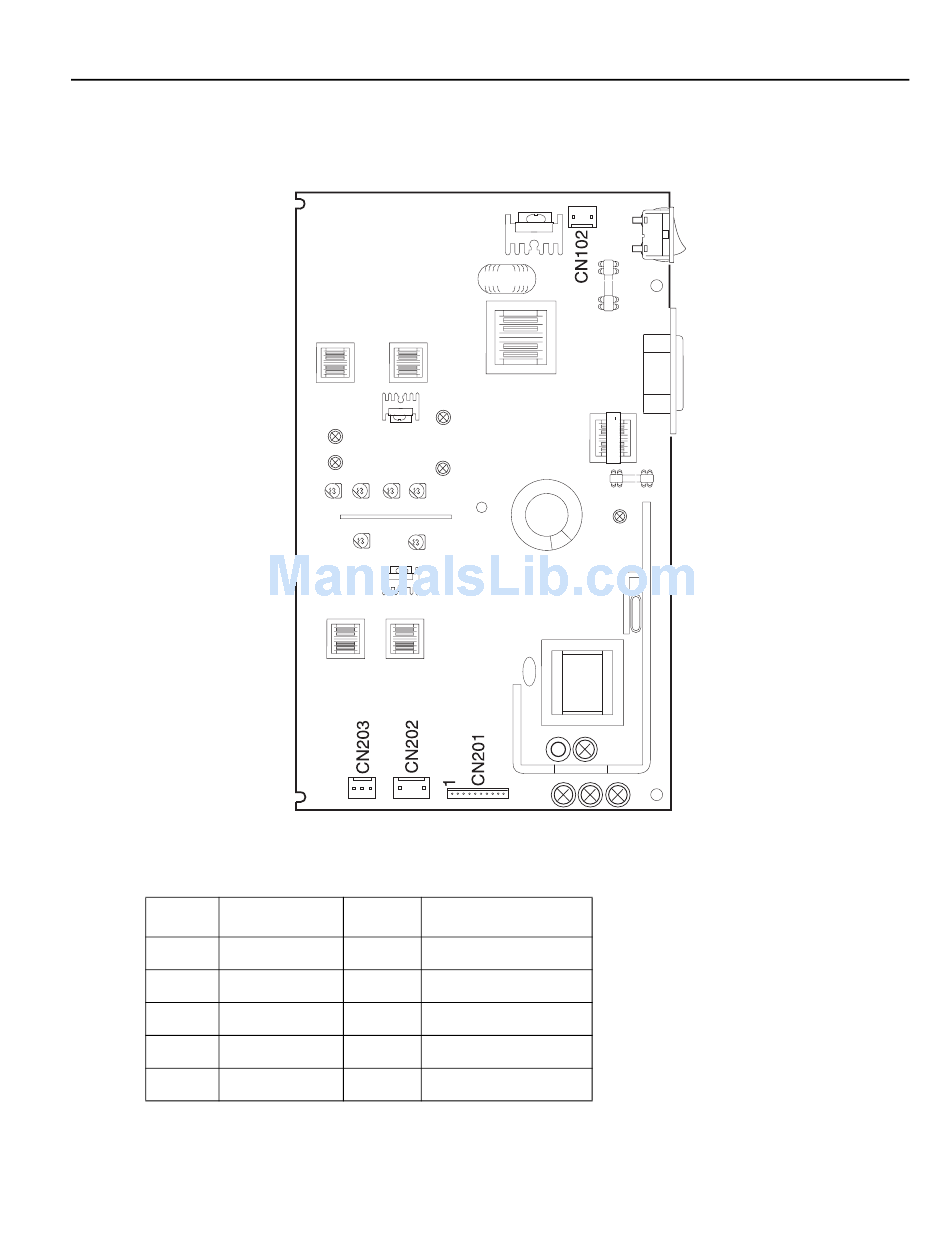

Power supply board

Power supply board connections

Conn Connects to
CN102 Fuser
CN201 Controller card
CN202 Charge roll
CN203 Developer
TAP201 Transfer roll
# wires Wire colors
2 Blue, white
10 Black
2 Red, blue
3 Red, white, blue
1 Red
7003-XXX
Locations and connections
5-3
