4.

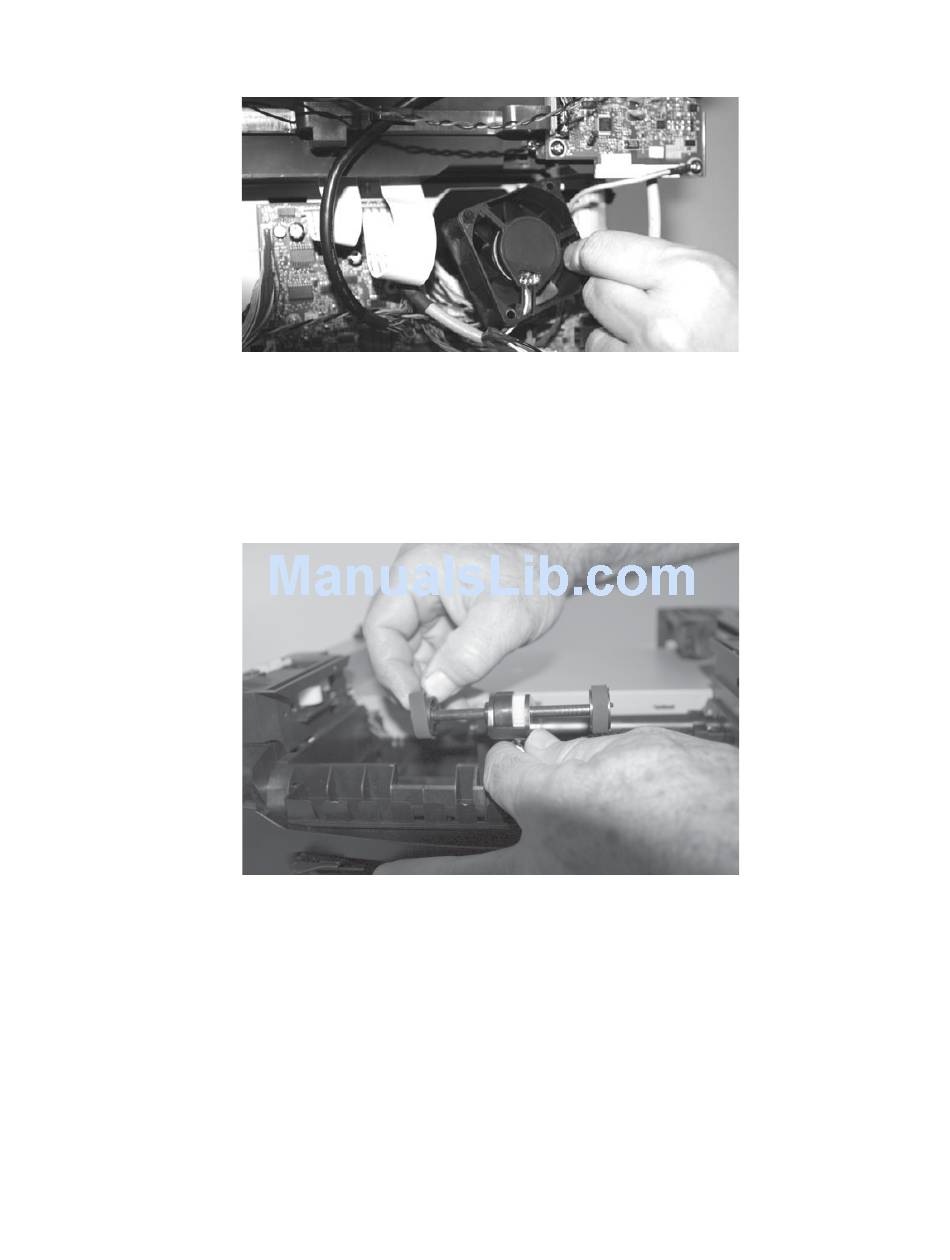

Remove the fan from the MFP.

Feed rollers (autocompensator tires) removal

1.
Remove the paper tray.
2.
Remove the toner cartridge.
3.
Tilt the MFP onto its back.
4.
Remove old tires.
5.
Ensure the new tires are captured between the rims of the plastic hub.
7003-XXX
4-19
Repair information
