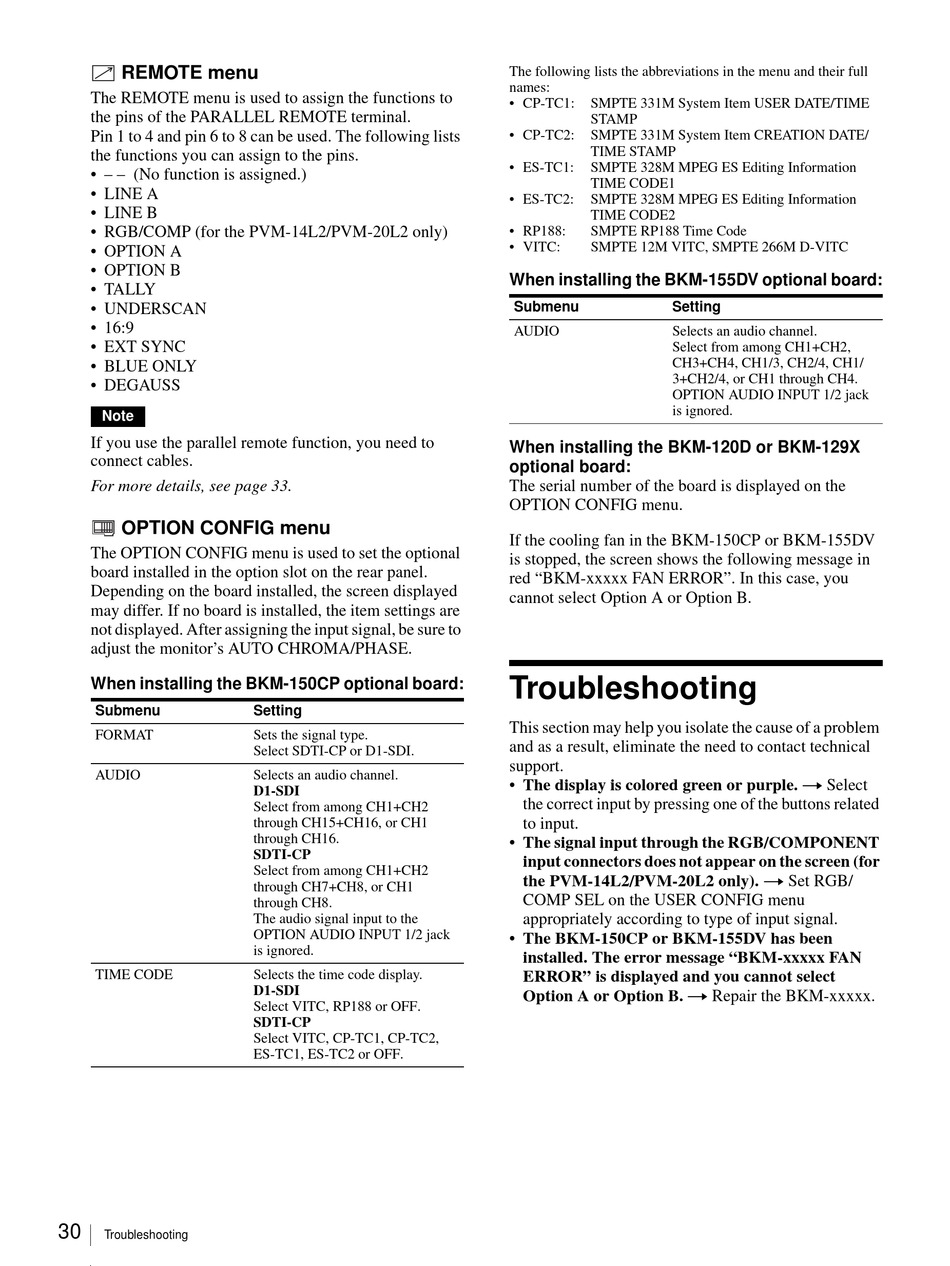

REMOTE menu

The REMOTE menu is used to assign the functions to
the pins of the PARALLEL REMOTE terminal.
Pin 1 to 4 and pin 6 to 8 can be used. The following lists
the functions you can assign to the pins.
• – – (No function is assigned.)
• LINE A
• LINE B
• RGB/COMP (for the PVM-14L2/PVM-20L2 only)
• OPTION A
• OPTION B
• TALLY
• UNDERSCAN
• 16:9
• EXT SYNC
• BLUE ONLY
• DEGAUSS
Note
If you use the parallel remote function, you need to
connect cables.
For more details, see page 33.

OPTION CONFIG menu

The OPTION CONFIG menu is used to set the optional
board installed in the option slot on the rear panel.
Depending on the board installed, the screen displayed
may differ. If no board is installed, the item settings are
not displayed. After assigning the input signal, be sure to
adjust the monitor's AUTO CHROMA/PHASE.
When installing the BKM-150CP optional board:
Submenu
FORMAT
AUDIO
TIME CODE
30

Troubleshooting

Setting
Sets the signal type.
Select SDTI-CP or D1-SDI.
Selects an audio channel.
D1-SDI
Select from among CH1+CH2
through CH15+CH16, or CH1
through CH16.
SDTI-CP
Select from among CH1+CH2
through CH7+CH8, or CH1
through CH8.
The audio signal input to the
OPTION AUDIO INPUT 1/2 jack
is ignored.
Selects the time code display.
D1-SDI
Select VITC, RP188 or OFF.
SDTI-CP
Select VITC, CP-TC1, CP-TC2,
ES-TC1, ES-TC2 or OFF.
The following lists the abbreviations in the menu and their full
names:
• CP-TC1:
SMPTE 331M System Item USER DATE/TIME
STAMP
• CP-TC2:
SMPTE 331M System Item CREATION DATE/
TIME STAMP
• ES-TC1:
SMPTE 328M MPEG ES Editing Information
TIME CODE1
• ES-TC2:
SMPTE 328M MPEG ES Editing Information
TIME CODE2
• RP188:
SMPTE RP188 Time Code
• VITC:
SMPTE 12M VITC, SMPTE 266M D-VITC
When installing the BKM-155DV optional board:
Submenu
Setting
AUDIO
Selects an audio channel.
Select from among CH1+CH2,
CH3+CH4, CH1/3, CH2/4, CH1/
3+CH2/4, or CH1 through CH4.
OPTION AUDIO INPUT 1/2 jack
is ignored.
When installing the BKM-120D or BKM-129X
optional board:
The serial number of the board is displayed on the
OPTION CONFIG menu.
If the cooling fan in the BKM-150CP or BKM-155DV
is stopped, the screen shows the following message in
red "BKM-xxxxx FAN ERROR". In this case, you
cannot select Option A or Option B.
Troubleshooting
This section may help you isolate the cause of a problem
and as a result, eliminate the need to contact technical
support.
• The display is colored green or purple. t Select
the correct input by pressing one of the buttons related
to input.
• The signal input through the RGB/COMPONENT
input connectors does not appear on the screen (for
the PVM-14L2/PVM-20L2 only). t Set RGB/
COMP SEL on the USER CONFIG menu
appropriately according to type of input signal.
• The BKM-150CP or BKM-155DV has been
installed. The error message "BKM-xxxxx FAN
ERROR" is displayed and you cannot select
Option A or Option B. t Repair the BKM-xxxxx.
