The selected item is displayed in yellow.
U S E R
C O N F I G
R G B / C O M P
C O M P
L E V E L
N T S C
S E T U P
F O R M A T
D I S P
x L A N G U A G E
D E G A U S S
3
Press the M/+ or m/– button to select the desired
language, then press the ENTER/SELECT button.
The on-screen language changes to the language
you have selected.
To clear the menu
Press the MENU/EXIT button.
The menu disappears automatically if a button is not
pressed within one minute.

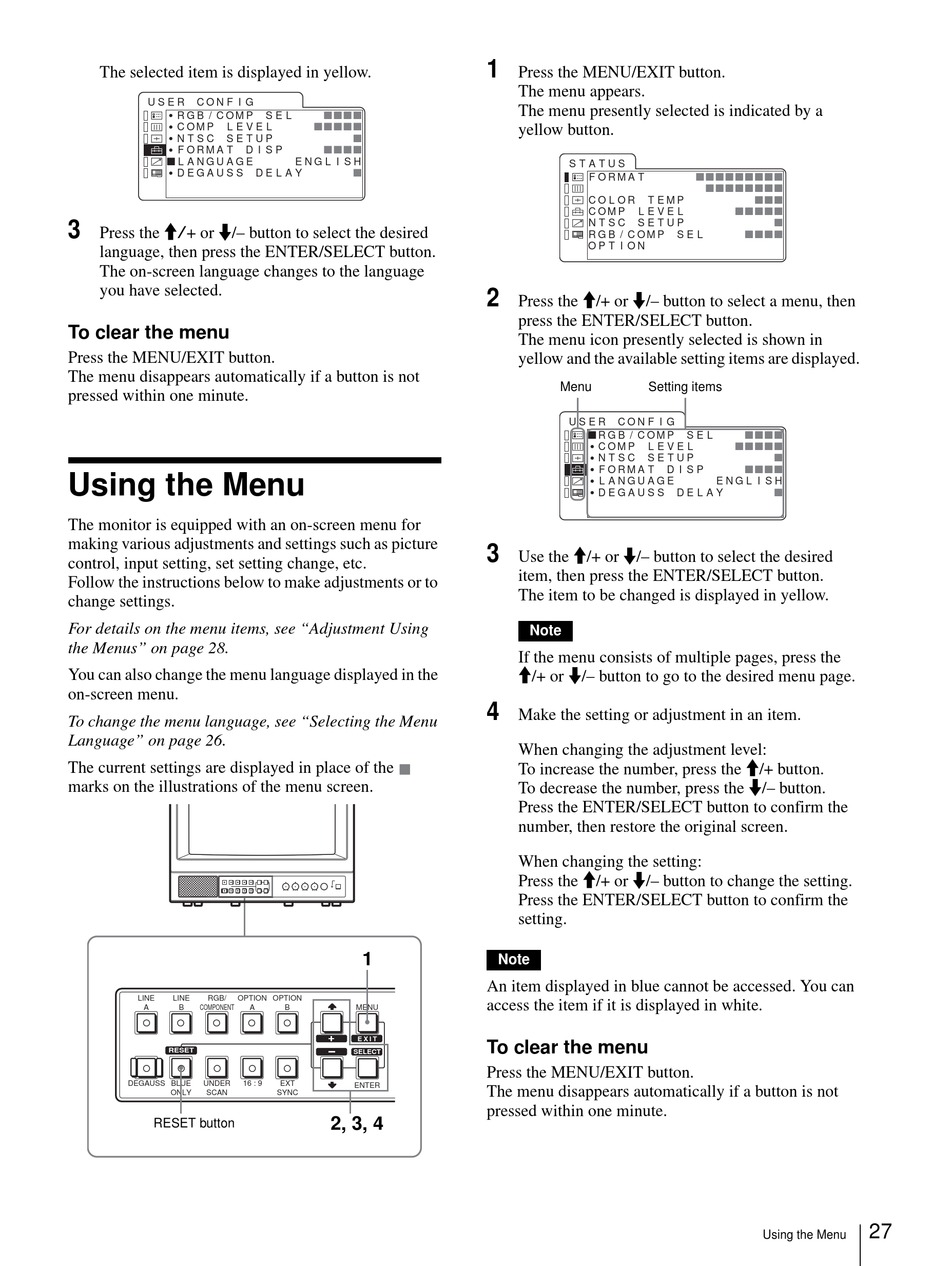

Using the Menu

The monitor is equipped with an on-screen menu for
making various adjustments and settings such as picture
control, input setting, set setting change, etc.
Follow the instructions below to make adjustments or to
change settings.
For details on the menu items, see "Adjustment Using
the Menus" on page 28.
You can also change the menu language displayed in the
on-screen menu.
To change the menu language, see "Selecting the Menu
Language" on page 26.
The current settings are displayed in place of the
marks on the illustrations of the menu screen.
LINE
LINE
RGB/
OPTION
A
B
COMPONENT
RESET
DEGAUSS
BLUE
UNDER
16 : 9
ONLY
SCAN
RESET button
S E L
x x x x
x x x x x
x
x x x x
E N G L I S H
D E L A Y
x
1
OPTION
A
B
MENU
E X I T
SELECT
EXT
ENTER
SYNC
2, 3, 4
1
Press the MENU/EXIT button.
The menu appears.
The menu presently selected is indicated by a
yellow button.
S T A T U S
F O R M A T
C O L O R
T E M P
C O M P
L E V E L
N T S C
S E T U P
R G B / C O M P
O P T I O N
2
Press the M/+ or m/– button to select a menu, then
press the ENTER/SELECT button.
The menu icon presently selected is shown in
yellow and the available setting items are displayed.
Menu
Setting items
U S E R
C O N F I G
x R G B / C O M P
C O M P
L E V E L
N T S C
S E T U P
F O R M A T
L A N G U A G E
D E G A U S S
3
Use the M/+ or m/– button to select the desired
item, then press the ENTER/SELECT button.
The item to be changed is displayed in yellow.
Note
If the menu consists of multiple pages, press the
M/+ or m/– button to go to the desired menu page.
4
Make the setting or adjustment in an item.
When changing the adjustment level:
To increase the number, press the M/+ button.
To decrease the number, press the m/– button.
Press the ENTER/SELECT button to confirm the
number, then restore the original screen.
When changing the setting:
Press the M/+ or m/– button to change the setting.
Press the ENTER/SELECT button to confirm the
setting.
Note
An item displayed in blue cannot be accessed. You can
access the item if it is displayed in white.
To clear the menu
Press the MENU/EXIT button.
The menu disappears automatically if a button is not
pressed within one minute.
x x x x x x x x x
x x x x x x x x
x x x
x x x x x
x
S E L
x x x x
S E L
x x x x
x x x x x
x
D I S P
x x x x
E N G L I S H
D E L A Y
x
Using the Menu
27
