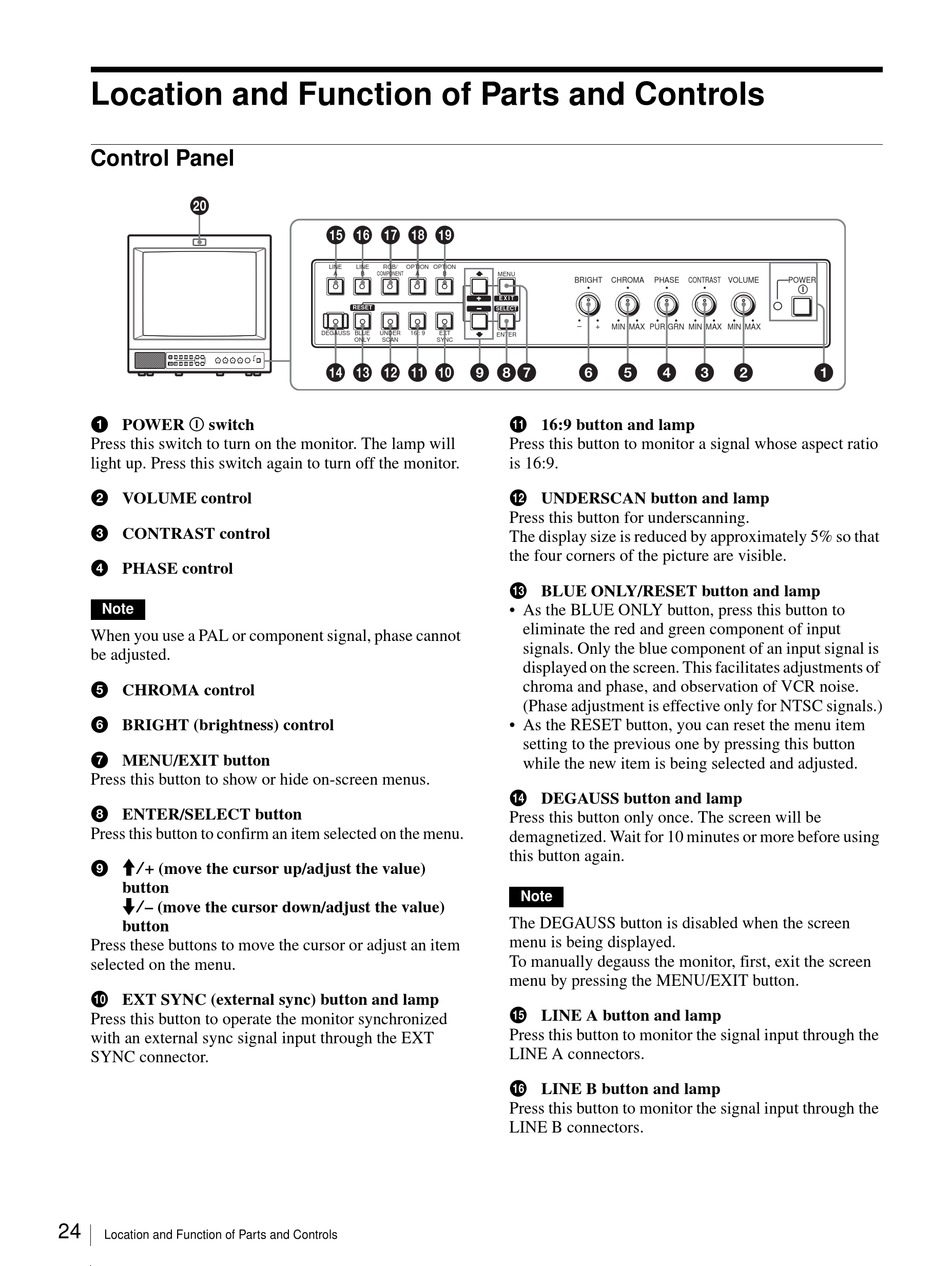

Location and Function of Parts and Controls

Control Panel

w;
a POWER ! switch
Press this switch to turn on the monitor. The lamp will
light up. Press this switch again to turn off the monitor.
b VOLUME control
c CONTRAST control
d PHASE control
Note
When you use a PAL or component signal, phase cannot
be adjusted.
e CHROMA control
f BRIGHT (brightness) control
g MENU/EXIT button
Press this button to show or hide on-screen menus.
h ENTER/SELECT button
Press this button to confirm an item selected on the menu.
i M/+ (move the cursor up/adjust the value)
button
m/– (move the cursor down/adjust the value)
button
Press these buttons to move the cursor or adjust an item
selected on the menu.
j EXT SYNC (external sync) button and lamp
Press this button to operate the monitor synchronized
with an external sync signal input through the EXT
SYNC connector.
24
Location and Function of Parts and Controls
qg
qh
qj
qk
ql
LINE
LINE
RGB/
OPTION
OPTION
A
B
COMPONENT
A
B
MENU
E X I T
RESET
SELECT
DEGAUSS
BLUE
UNDER
16 : 9
EXT
ENTER
ONLY
SCAN
SYNC
qf
qd
qs
qa
q;
9
8
BRIGHT
CHROMA
PHASE
CONTRAST
+
MIN MAX PUR GRN MIN MAX MIN MAX
7
6
5
4
k 16:9 button and lamp
Press this button to monitor a signal whose aspect ratio
is 16:9.
l UNDERSCAN button and lamp
Press this button for underscanning.
The display size is reduced by approximately 5% so that
the four corners of the picture are visible.
m BLUE ONLY/RESET button and lamp
• As the BLUE ONLY button, press this button to
eliminate the red and green component of input
signals. Only the blue component of an input signal is
displayed on the screen. This facilitates adjustments of
chroma and phase, and observation of VCR noise.
(Phase adjustment is effective only for NTSC signals.)
• As the RESET button, you can reset the menu item
setting to the previous one by pressing this button
while the new item is being selected and adjusted.
n DEGAUSS button and lamp
Press this button only once. The screen will be
demagnetized. Wait for 10 minutes or more before using
this button again.
Note
The DEGAUSS button is disabled when the screen
menu is being displayed.
To manually degauss the monitor, first, exit the screen
menu by pressing the MENU/EXIT button.
o LINE A button and lamp
Press this button to monitor the signal input through the
LINE A connectors.
p LINE B button and lamp
Press this button to monitor the signal input through the
LINE B connectors.
VOLUME
POWER
3
2
1
