The files are displayed in numerical and
alphabetical order. When more than 6 files
are saved, selecting the "Previous 5 Data" or
"Next 5 Data" displays other files.
4
Select the desired User LUT file.
5
Select "Confirm" on the "Load From USB
Memory" screen.
The User LUT file is loaded from the USB
memory to the monitor. "In Progress" is
displayed while loading the file and LEDs on
the function buttons light in order from F1 to
F7.
When loading has completed, the User LUT
file name is displayed next to the selected
User LUT number.
Note
If the User LUT file is not compatible with the
file format that can be loaded to the monitor,
the file name is not displayed next to the
selected User LUT number and the loading
terminates.

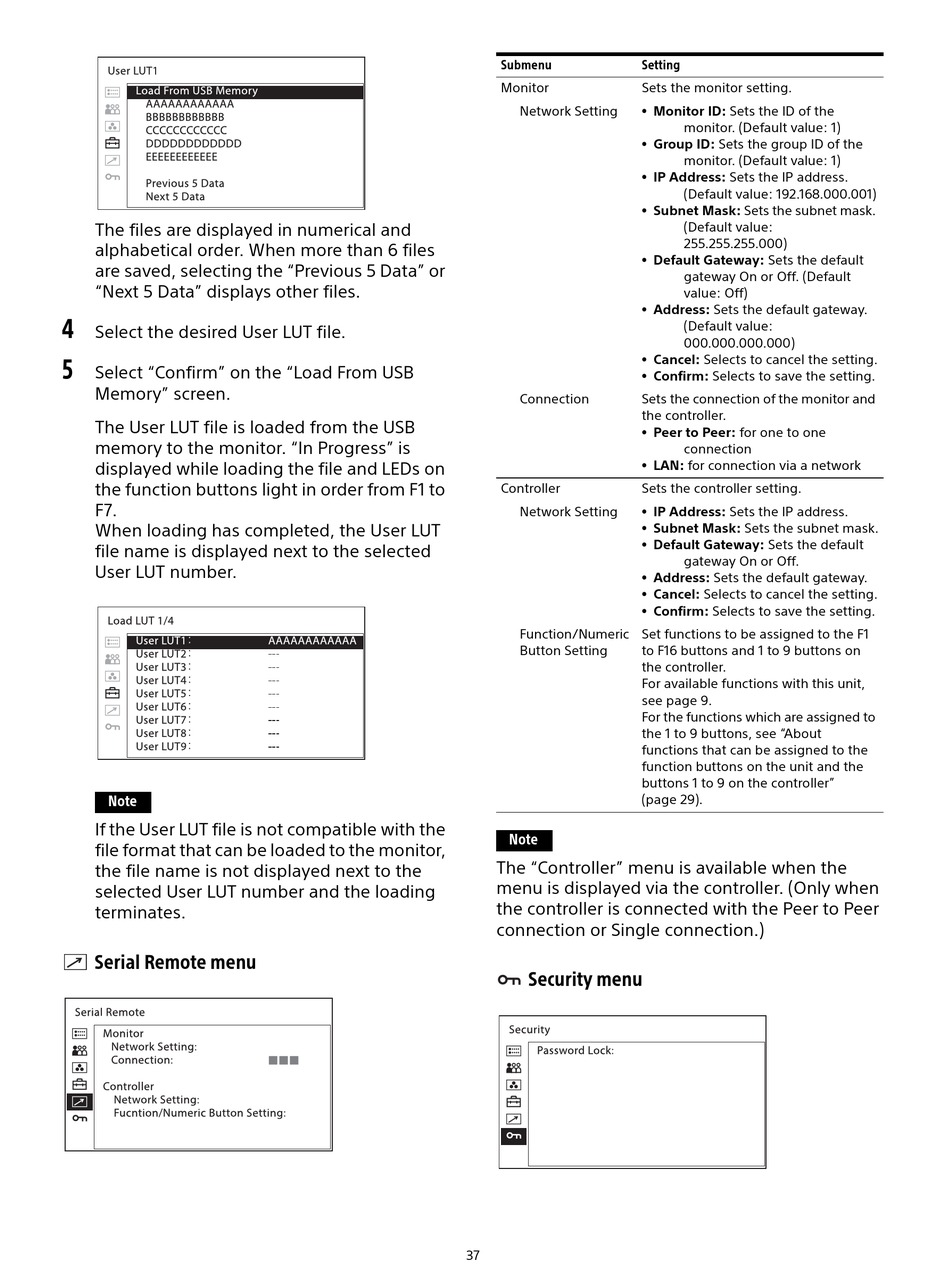

Serial Remote menu

Submenu
Setting
Monitor
Sets the monitor setting.
Network Setting
Connection
Sets the connection of the monitor and
the controller.
Controller
Sets the controller setting.
Network Setting
Function/Numeric
Set functions to be assigned to the F1
Button Setting
to F16 buttons and 1 to 9 buttons on
the controller.
For available functions with this unit,
see page 9.
For the functions which are assigned to
the 1 to 9 buttons, see "About
functions that can be assigned to the
function buttons on the unit and the
buttons 1 to 9 on the controller"
(page 29).
Note
The "Controller" menu is available when the
menu is displayed via the controller. (Only when
the controller is connected with the Peer to Peer
connection or Single connection.)

Security menu

37
Monitor ID: Sets the ID of the
monitor. (Default value: 1)
Group ID: Sets the group ID of the
monitor. (Default value: 1)
IP Address: Sets the IP address.
(Default value: 192.168.000.001)
Subnet Mask: Sets the subnet mask.
(Default value:
255.255.255.000)
Default Gateway: Sets the default
gateway On or Off. (Default
value: Off)
Address: Sets the default gateway.
(Default value:
000.000.000.000)
Cancel: Selects to cancel the setting.
Confirm: Selects to save the setting.
Peer to Peer: for one to one
connection
LAN: for connection via a network
IP Address: Sets the IP address.
Subnet Mask: Sets the subnet mask.
Default Gateway: Sets the default
gateway On or Off.
Address: Sets the default gateway.
Cancel: Selects to cancel the setting.
Confirm: Selects to save the setting.
