Removing a printer hard disk

Note: This option is supported only in MS610de printer model.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any controller board electronic components or connectors.
1
Access the controller board.
For MS610de printer model, see "Accessing the controller board" on page 73.
Note: This task requires a flathead screwdriver.
2

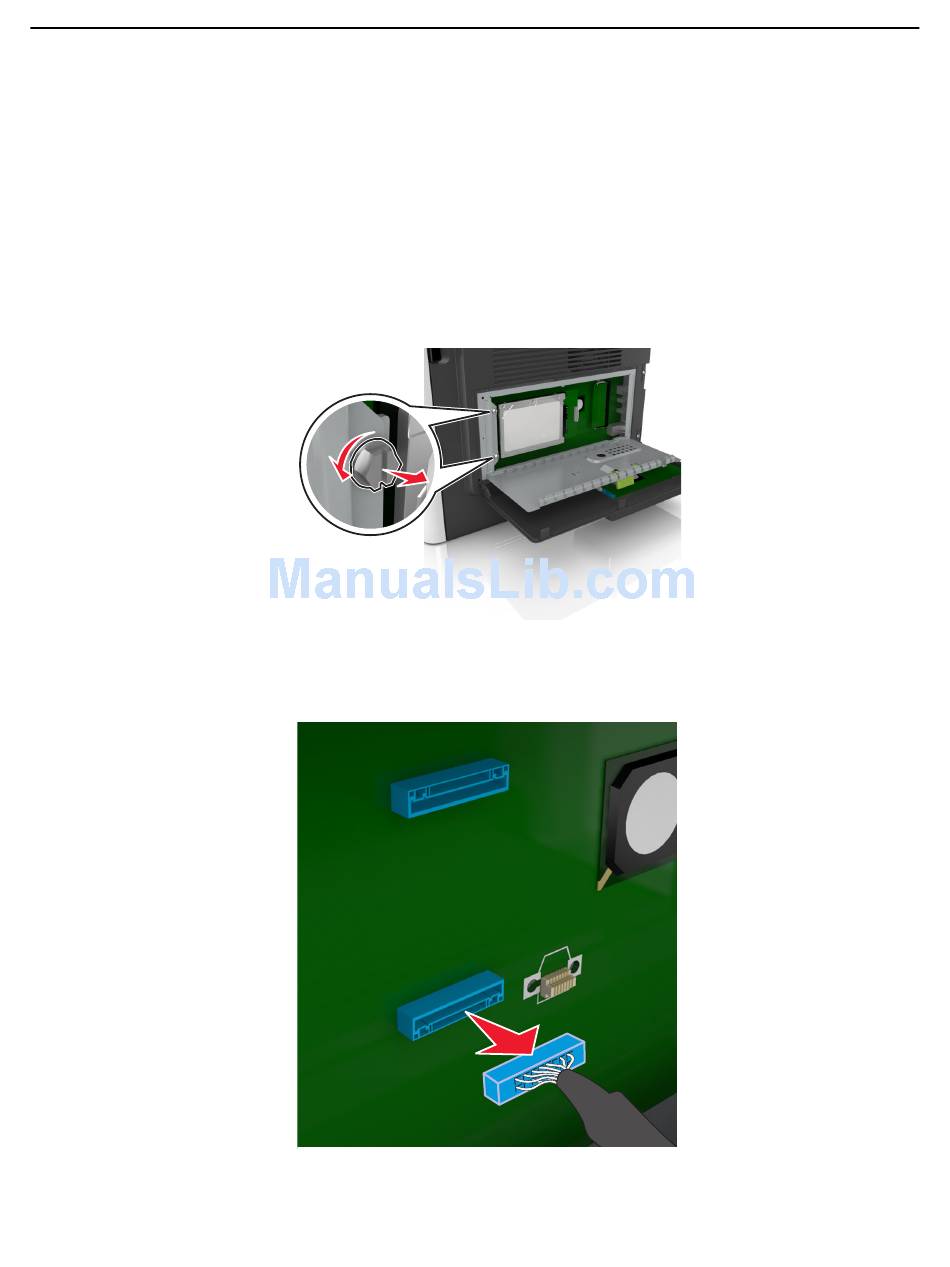

Loosen the screws that connect the printer hard disk to the controller board bracket.
3
Unplug the printer hard disk interface cable from the receptacle in the controller board , leaving the cable attached
to the printer hard disk. To unplug the cable, squeeze the paddle at the plug of the interface cable to disengage the
latch before pulling the cable out.
4
Hold the printer hard disk by the edges, and then remove it from the printer.
5
Close the controller board shield, and then close the access door.
