Chapter 2: Unpacking and Installing Your FN10
If you are replacing an FE module assembly, slowly pull the
NOTE
module handle away from the FN10 to disconnect the internal
connector and slide the assembly out of the FN10.
3. Insert the FE module assembly, making sure the edges of the board fit
into the guides that allow the assembly to smoothly glide into place.
Refer to Figure 2-6.

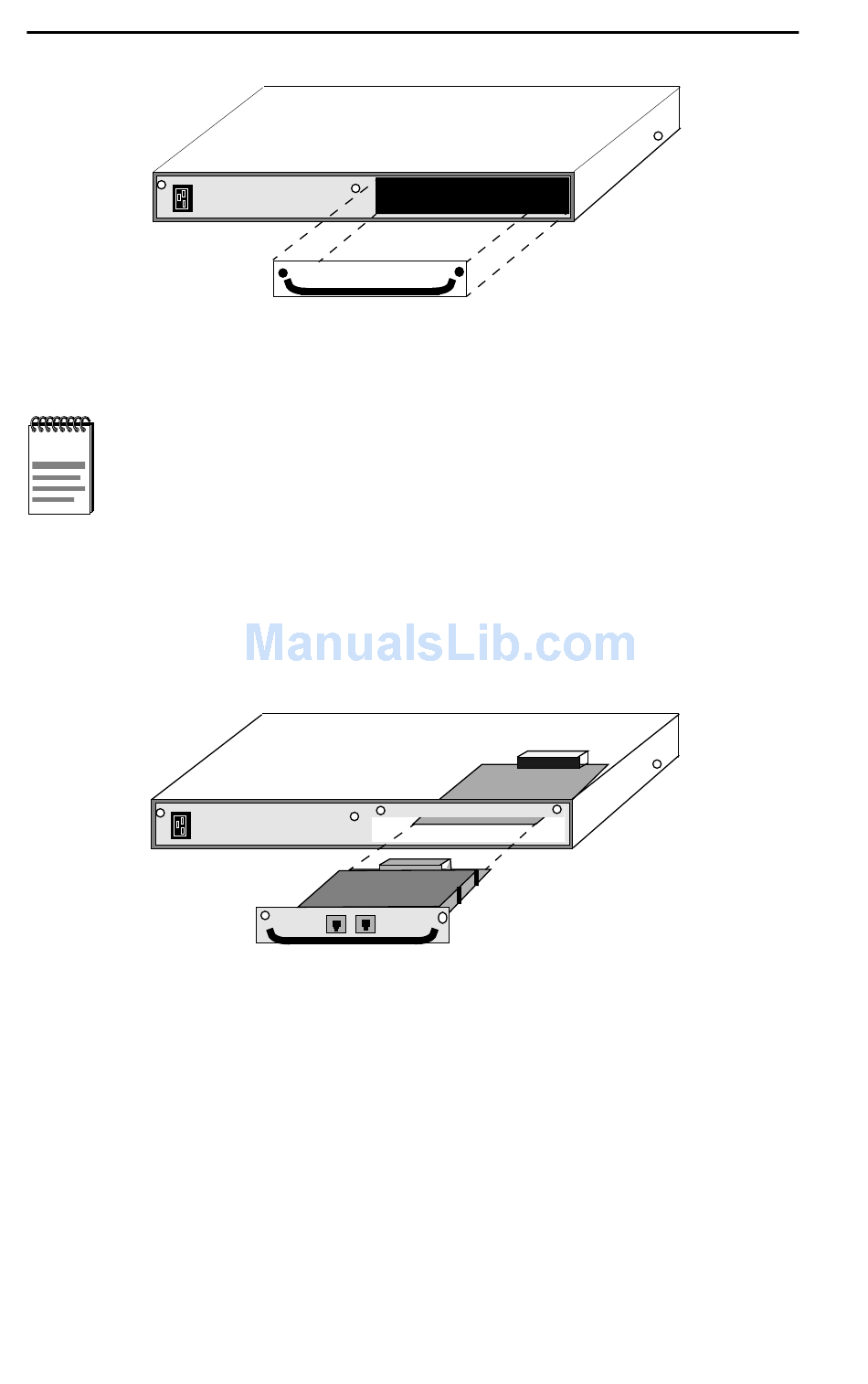

Figure 2-6 Inserting the FE Module Assembly
4. When the FE assembly makes contact with the internal connector,
gently press the assembly into the FN10 to allow the connector to snap
firmly into place.
5. Tighten the spring-loaded fastening screws to secure the FE module.
The physical installation of the FE module assembly is complete.
Page 2-10
Figure 2-5 Removing the FN10 Backplate
