Cabletron Systems FN10 Reference Manual

Mib reference guide
Hide thumbs Also See for FN10:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

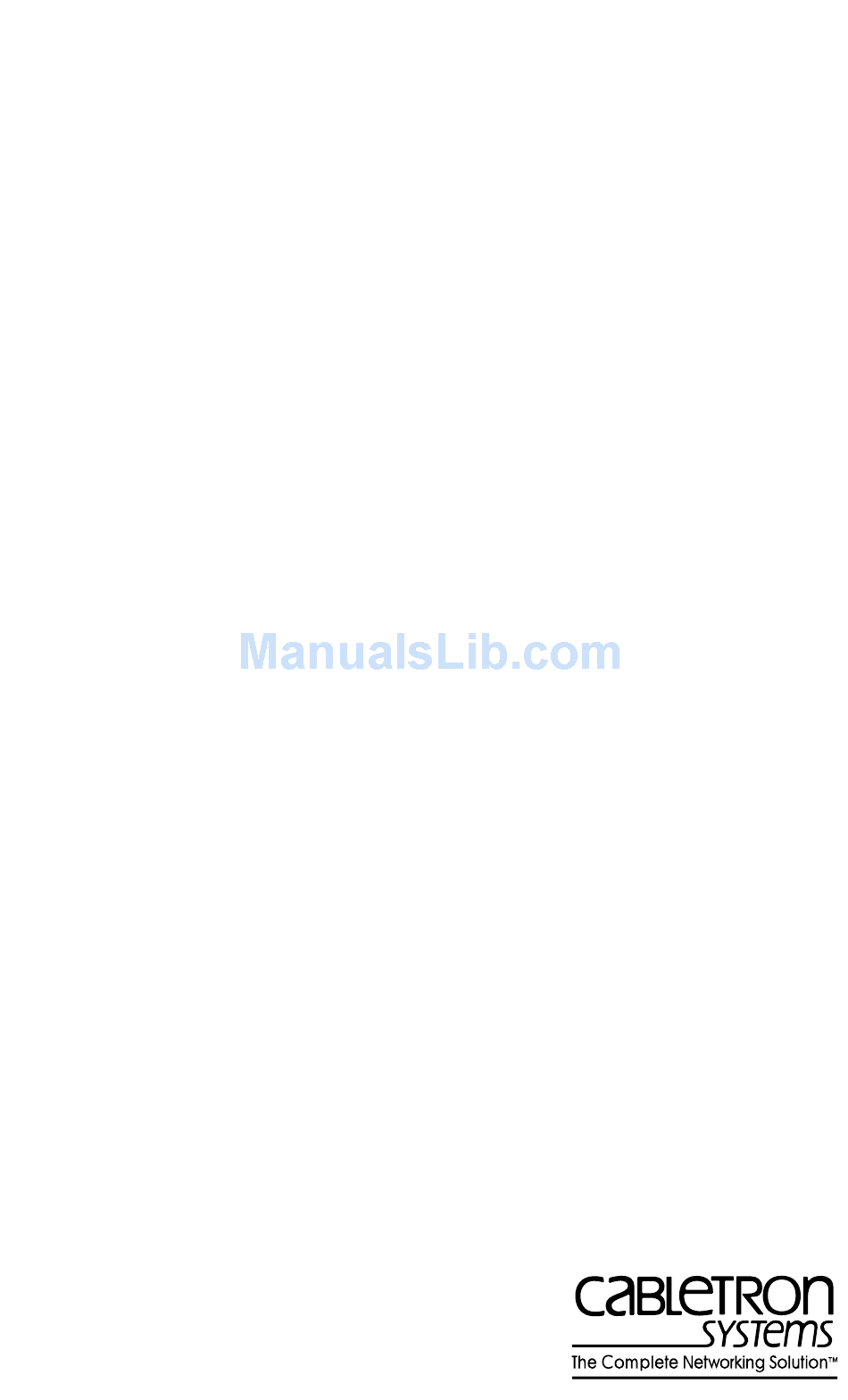

FAST NETWORK 10
MIB REFERENCE GUIDE
9031806-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FN10 and is the answer not in the manual?

Questions and answers

Related Manuals for Cabletron Systems FN10

Summary of Contents for Cabletron Systems FN10

  • Page 1 FAST NETWORK 10 MIB REFERENCE GUIDE 9031806-01...
  • Page 3 NOTICE Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. The hardware, firmware, or software described in this manual is subject to change without notice. IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR...

  • Page 4: Fcc Notice

    FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
  • Page 5 CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT IMPORTANT: Before utilizing this product, carefully read this License Agreement. This document is an agreement between you, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (the “Program”) contained in this package.

  • Page 6: United States Government Restricted Rights

    UNITED STATES GOVERNMENT RESTRICTED RIGHTS The enclosed product (a) was developed solely at private expense; (b) contains “restricted computer software” submitted with restricted rights in accordance with Section 52227-19 (a) through (d) of the Commercial Computer Software - Restricted Rights Clause and its successors, and (c) in all respects is proprietary data belonging to Cabletron and/or its suppliers.

  • Page 7: Table Of Contents

    CHAPTER 1 INTRODUCTION Document conventions ... 1-2 Related Documentation ... 1-3 Getting Help... 1-4 SNMP Primitives... 1-4 MIB Primitive Types... 1-5 User Functions ... 1-6 Navigating Through the MIBTree Structure... 1-7 TFTP... 1-10 Additional Interfaces ... 1-11 CHAPTER 2 TCP/IP MIB-II System Group...
  • Page 8 6.2.10 Debug Command Group ...6-41 6.2.11 Loopback Command Group ...6-44 6.2.12 Cabletron Protocol Group...6-47 6.2.13 Cabletron Trunking Group...6-49 6.2.14 Cabletron Trap Management Group ...6-51 CHAPTER 7 TRAPS Generic Traps ...7-1 FN10 Traps ...7-2 APPENDIX A PACKET HEADER DIAGRAMS Fast Network 10 MIB Reference Guide...

  • Page 9: Chapter 1 Introduction

    FN10 needs to be done using an SNMP-based network management station. This manual contains the SNMP MIB variables you may need to configure, monitor, and manage your FN10. You should use this manual with the Fast Network 10 User Guide and with the documentation provided with your NMS.

  • Page 10: Document Conventions

    Chapter 1: Introduction 1.1 DOCUMENT CONVENTIONS The following conventions are used in presenting information in this manual: Note symbol. Calls the reader’s attention to any item of NOTE information that may be of special importance. Tip symbol. Conveys helpful hints concerning procedures or actions.

  • Page 11: Related Documentation

    You may need to refer to the following Cabletron documentation: • Fast Network 10 User Guide – contains installation, configuration, and management instructions for the FN10. It also describes how to use the Local Console Manager (LCM), which is a non-intelligent terminal interface to the FN10.

  • Page 12: Snmp Primitives

    The NMS must rely on IP, rather than MAC addressing for all datagrams sent to an FN10. • All datagrams from the FN10 are addressed to either an NMS or the broadcast IP address. • Within the context of this document, the terms “datagram”, “packet”, and “PDU”...

  • Page 13: Mib Primitive Types

    1.5 MIB PRIMITIVE TYPES The MIB definitions in this document may reference the primitive types that are described in the Structure and Identification of Management Information for TCP/IP-based Internets, RFC 1155. RFC 1155 is based on the Specification of Abstract Syntax Notation One, ASN.1. The primitive types are described in Table 1-1.

  • Page 14: User Functions

    Change the FN10’s value of certain parameters - the NMS uses the SetRequest PDU, and the FN10 responds with a GetResponse PDU. The FN10 will change both its current value and its local default to be used when the FN10 reboots, unless noted otherwise.

  • Page 15: Navigating Through The Mibtree Structure

    Many parameters are described by existing Management Information Base (MIB) documents. The meanings of those parameters are not always implemented exactly by the FN10; instead, the parameters are treated as best as can be correlated to the FN10’s parameters. The FN10 parameters that cannot be...
  • Page 16 1.3.6.1.2.1.1. To find the amount of time the FN10 had been running, you would want to get the sysUpTime variable, which is the third object in the system group. So the get command would look like: get 1.3.6.1.2.1.1.3.0...
  • Page 17 Bridge There are additional groups under MIB-II, but all groups are not supported by the FN10. The Cabletron MIB is under the private enterprise MIB branch. To identify a variable in the Cabletron MIB, you would start with the private enterprise prefix of 1.3.6.1.4.1, and add the specific Cabletron ID of 97.

  • Page 18: Tftp

    filterCurrentCount variable in the Cabletron MIB filter group and add it to the prefix 1.3.6.1.4.1.97. After the prefix, add the FN10 group ID {2}, the filter group ID {9}, and the filterCurrentCount ID of {2}. As stated above, the zero {0} indicates that this variable is a single instance and only one variable can be returned.

  • Page 19: Additional Interfaces

    FN10 will not use the incomplete new software. 1.9 ADDITIONAL INTERFACES In addition to SNMP and TFTP, the FN10 employs the following protocols, as part of its software interface with an NMS: • UDP - User Datagram Protocol, RFC 768.
  • Page 20 Chapter 1: Introduction Page 1-12 Fast Network 10 MIB Reference Guide...

  • Page 21: Tcp/Ip Mib-Ii

    The TCP/IP System Group parameters are described below. sysDescr DisplayString Read-Only A textual description of the FN10, including the full name and version identification of the software and hardware (refer to sxswDesc and sxhwManufData). The text obeys the format “X<CR><LF>A<CR><LF>B”, where, lists the following description, “FN10.”...

  • Page 22: System

    Cabletron MIB sysID object, i.e., {1 3 6 1 4 1 97 5 2}. Special versions of the FN10, made for third-party vendors may use different values (3, 4, or 5) for sysID.

  • Page 23: Interfaces Group

    DisplayString Read-Only A textual description of the port. One of the following text strings: • Ethernet/802.3 AUI or TP (this is the FN10’s first Ethernet port) • Ethernet/802.3 TP (this is all the other Ethernet ports) • Network Management Port (this is the UART port) •...
  • Page 24 Chapter 2: TCP/IP MIB-II ifType Integer Read-Only The type of the port, i.e., one of the following • (6) - ethernet-csmacd • (23) - ppp (for the UART port). ifMtu Integer Read-Write The size (in bytes) of the largest network datagram which may be sent or received on the port.
  • Page 25 (i.e., whether the packet was filtered or forwarded). ifInDiscards Counter Read-Only The number of packets received by the port, which were filtered by the FN10’s forward/filter decision-making (see sxifRxPackets), or because of a lack of resources to receive the packet (see sxifRxQueues).
  • Page 26 The number of packets to be transmitted out the port, but were not transmitted due to non-error reasons. The definition of non-error reasons is implementation dependent. The FN10 defines non-error reasons as packet congestion. Packet congestion occurs when too many packets are to be queued for transmission, or when packets have been awaiting transmission for too long a time period.

  • Page 27: Address Translation Group

    2.3 ADDRESS TRANSLATION GROUP The TCP/IP Address Translation Group parameters are minimally supported (i.e., for any parameter in this group, the FN10 returns a GetResponse with a noSuchName ErrorStatus). It is anticipated that the Address Translation Group will be deleted from TCP/IP MIB III, since there will be separate address translation tables for every type of network protocol (indeed, TCP/IP MIB II already defines the IP Address Translation Table).

  • Page 28: Ip Group

    Integer Read-Write Whether the FN10 is an IP router. This value is always host (2). Attempts to write a different value to this field will not change its value, and “badValue” GetResponse PDUs are returned for all such SetRequest PDUs.
  • Page 29 Counter Read-Only The number of packets received that were addressed to this FN10's IP, but were discarded because of an unknown or unsupported protocol. ipInDiscards Counter Read-Only The number of packets that were received without error, but were not processed (due to insufficient resources, for example).

  • Page 30: Ip Address Table

    (e.g. because their “Don't Fragment” flag was set). ipFragCreates Counter Read-Only The number of IP datagram fragments that have been generated by this FN10. 2.4.1 IP Address Table The TCP/IP IP Address Table contains the IP addressing information for each port.
  • Page 31 IP Address Read-Write The network/subnet mask associated with the IP address. For SetRequests, a mask of zero may be specified, in which case, the FN10 will create the correct network mask for a non-subnetted network. For GetRequests, the FN10 will always convert a value of zero into the correct network mask.

  • Page 32: Ip Routing Table

    Chapter 2: TCP/IP MIB-II 2.4.2 IP Routing Table The TCP/IP IP routing table contains the routing information for each route currently known by the FN10. When adding a row, the entire row must be specified, except for the following defaults: •...
  • Page 33 ipRouteIfIndex Integer Read-Write The port number of the next hop. ipRouteMetric1 Integer Read-Write The primary routing metric for this route. This is the zero-based hop count to ipRouteDest. That is, a hop count of zero indicates that ipRouteDest is on a directly connected network.

  • Page 34: Ip Address Translation Table

    Object Identifier Read-Write A reference to additional MIB definitions, specific to the routing protocol which is responsible for this route. This information is not present in the FN10, so ipRouteInfo should be set to the object identifier {0 0}. 2.4.3 IP Address Translation Table The TCP/IP IP address translation table contains mappings of Internet addresses to MAC addresses, except for the Internet addresses of the FN10 itself.

  • Page 35: Ip Additional Objects

    ipNetToMediaEntry Not Accessible A set of objects for an ipNetToMediaTable entry. The individual components are described below. ipNetToMediaIfIndex Integer Read-Write The port number for which this entry is effective. ipNetToMediaPhysAddress Physical Address Read-Write The MAC address (for the PPP port, this should be a zero length octet string; for Ethernet ports, this should be a little-endian six byte address).

  • Page 36: Icmp Group

    The TCP/IP ICMP Group parameters are described below. icmpInMsgs Counter Read-Only The total number of ICMP messages which were received by this FN10. This includes all messages represented by icmpInErrors. icmpInErrors Counter Read-Only The number of ICMP messages which were received with errors (bad checksums, bad length, etc.).
  • Page 37 The total number of ICMP messages which were sent by this FN10. This includes all messages counted by icmpOutErrors. icmpOutErrors Counter Read-Only The number of ICMP messages which this FN10 did not send due to problems discovered entirely within the ICMP subsystem (such as lack of buffers). icmpOutDestUnreachs Counter Read-Only The number of ICMP “Destination Unreachable”...
  • Page 38 Chapter 2: TCP/IP MIB-II icmpOutParmProbs Counter Read-Only The number of ICMP “Parameter Problem” messages sent. icmpOutSrcQuenchs Counter Read-Only The number of ICMP “Source Quench” messages sent. icmpOutRedirects Counter Read-Only The number of ICMP “Redirect” messages sent. icmpOutEchos Counter Read-Only The number of ICMP “Echo (request)” messages sent. icmpOutEchoReps Counter Read-Only The number of ICMP “Echo Reply”...

  • Page 39: Tcp Group

    2.6 TCP GROUP The TCP Group is not supported since the FN10 does not support TCP. 2.7 UDP GROUP The TCP/IP UDP Group parameters are described below. udpInDatagrams Counter Read-Only The total number of UDP datagrams delivered to UDP users.

  • Page 40: Udp Listener Table

    IP Address Read-Only The all zeroes IP address (0.0.0.0), which indicates that the UDP listener is willing to accept UDP datagrams for any IP address associated with the FN10. udpLocalPort Integer Read-Only The UDP port number, i.e., one of 69, 161, and 520. Note that reception of SNMP Traps (UDP port number 162) is not supported by the FN10.

  • Page 41: Transmission Group

    Counter Read-Only The number of SNMP PDUs created by the FN10. snmpInBadVersions Counter Read-Only The number of SNMP PDUs received by the FN10 which had an unsupported SNMP version. snmpInBadCommunityNames Counter Read-Only The number of SNMP PDUs received by the FN10 which had an unrecognized SNMP community name.
  • Page 42 Chapter 2: TCP/IP MIB-II snmpInASNParseErrs Counter Read-Only The number of SNMP PDUs received by the FN10 which had an ASN.1 parsing error while being decoded by the FN10. snmpInBadTypes Counter Read-Only All GetResponse PDUs indicate a noSuchName ErrorStatus, since this variable is no longer used.
  • Page 43 Counter Read-Only Always zero, since the FN10 ignores all SNMP Trap PDUs. snmpOutTooBigs Counter Read-Only The total number of SNMP PDUs created by the FN10, with a value of “tooBig” in the PDU's “ErrorStatus”. snmpOutNoSuchNames Counter Read-Only The total number of SNMP PDUs created by the FN10, with a value of “noSuchName”...
  • Page 44 All GetResponse PDUs indicate a noSuchName ErrorStatus, since this variable is no longer used. snmpOutGenErrs Counter Read-Only The total number of SNMP PDUs created by the FN10, with a value of “genErr” in the PDU's “ErrorStatus”. snmpOutGetRequests Counter Read-Only Always zero, since the FN10 never creates any SNMP request PDUs.
  • Page 45 Integer Read-Write Whether authentication failures should cause the FN10 to generate authentication-failure Trap PDUs. Values include: • enabled (1) - generate traps • disabled (2) - do not generate traps Fast Network 10 MIB Reference Guide SNMP Group {snmp 30}...
  • Page 46 Chapter 2: TCP/IP MIB-II Page 2-26 Fast Network 10 MIB Reference Guide...

  • Page 47: Chapter 3 Ethernet Mib

    The FN10 supports the Ethernet MIB as defined in Definitions of Managed Objects for the Ethernet-like Interface Types, RFC 1284 (J. Cook, editor), dated December 1991. The MIB tree prefix for reaching the GenericIF group is: 1.3.6.1.2.1.12. 3.1 GENERIC ETHERNET-LIKE GROUP...

  • Page 48: Ethernet-Like Statistics Group

    Chapter 3: Ethernet MIB dot3MACSubLayerStatus Integer Read-Write Treated identically to dot3InitializeMAC. Values include: • enabled (1) • disabled (2) dot3MulticastReceiveStatus Integer Read-Write Whether the port is able to receive multicasts. This is always enabled when the port is enabled, and always disabled when the port is disabled. Values include: •...
  • Page 49 The number of frames for which the first transmission attempt was successful, but delayed because the medium was busy. These statistics are only updated if the FN10 has been configured to gather extended statistics (sxadminStatsExtended). These statistics are only updated if the FN10 has been configured to gather extended statistics (sxadminStatsExtended).
  • Page 50 Chapter 3: Ethernet MIB dot3StatsLateCollisions Counter Read-Only The number of times that a late collision was detected while the FN10 was transmitting a frame. dot3StatsExcessiveCollisions Counter Read-Only The number of times a frame transmission attempt experienced excessive collisions, since the port was last enabled.

  • Page 51: Ethernet-Like Collision Statistics Group

    The number of times a frame reception failed due to an error condition not already accounted for, since the port was last enabled. 3.3 ETHERNET-LIKE COLLISION STATISTICS GROUP dot3CollTable This group is minimally supported (i.e., the FN10 returns a GetResponse with a noSuchName ErrorStatus). 3.4 ETHERNET-LIKE TESTS GROUP dot3Tests There are no MIB variables in this group.
  • Page 52 Chapter 3: Ethernet MIB Page 3-6 Fast Network 10 MIB Reference Guide...

  • Page 53: Chapter 4 Bridge Mib

    The FN10 supports the Bridge MIB {mib-2 17} as defined in Definitions of Managed Objects for Bridges, RFC 1286 (Decker, Langille, Rijsinghani, and McCloghrie, editors). The MIB tree prefix for reaching the Bridge MIB-II is: 1.3.6.1.2.1.17 4.1 BASE GROUP dot1dBase...
  • Page 54 A table that contains generic information about every port that is associated with this bridge. Transparent, source-route, and srt ports are included. All FN10 Ethernet ports are included in this table, regardless of whether any form of bridging is currently enabled for the ports.

  • Page 55: Spanning Tree Group

    dot1dBasePortDelayExceededDiscards Counter Read-Only The number of frames discarded by this port due to excessive transit delay through the bridge. It is incremented by both transparent and source route bridges. dot1dBasePortMtuExceededDiscards Counter Read-Only The number of frames discarded by this port due to an excessive size. It is incremented by both transparent and source route bridges.
  • Page 56 Chapter 4: Bridge MIB dot1dStpTopChanges Counter Read-Only The total number of topology changes detected by this bridge since the management entity was last reset or initialized. dot1dStpDesignatedRoot Octet String Read-Only The bridge identifier of the root of the spanning tree as determined by the Spanning Tree Protocol as executed by this node.
  • Page 57 dot1dStpHoldTime Integer Read-Only This time value determines the interval length during which no more than two Configuration bridge PDUs shall be transmitted by this node, in units of hundredths of a second. dot1dStpForwardDelay Integer Read-Only This time value, measured in units of hundredths of a second, controls how fast a port changes its spanning state when moving towards the Forwarding state.
  • Page 58 Not Accessible A table that contains port-specific information for the Spanning Tree Protocol. All FN10 ports, except for the last port (port 25), are included in this table, regardless of whether the Spanning Tree Protocol is currently enabled for the ports.
  • Page 59 Integer Read-Write The enabled/disabled status of the port. The FN10 does not change the parameter’s value when processing a SetRequest - refer to the sxsprotoBridge parameter in Cabletron’s enterprise-specific MIB for the SetRequest capabilities. dot1dStpPortPathCost...

  • Page 60: Source Route Group

    Chapter 4: Bridge MIB dot1dStpPortDesignatedBridge Octet String Read-Only The Bridge Identifier of the bridge which this port considers to be the Designated Bridge for this port’s segment. dot1dStpPortDesignatedPort Octet String Read-Only The Port Identifier of the port on the Designated Bridge for this port’s segment. dot1dStpPortForwardTransitions Counter Read-Only The number of times this port has transitioned from the Learning state to the...
  • Page 61 dot1dSrPortLocalSegment Integer Read-Write The segment number that uniquely identifies the segment to which this port is connected. Current source routing protocols limit this value to the range 0 through 4095. A value of 65535 signifies that no segment number is assigned to this port.
  • Page 62 Chapter 4: Bridge MIB dot1dSrPortSTESpanMode Integer Read-Write Determines how this port behaves when presented with a Spanning Tree Explorer frame. The value disabled(2) indicates that the port will not accept or send Spanning Tree Explorer packets; any STE packets received will be silently discarded.

  • Page 63: Transparent Group

    dot1dSrPortSteOutFrames Counter Read-Only The number of spanning tree explorer frames that have been transmitted by this port on its segment. dot1dSrPortSegmentMismatchDiscards Counter Read-Only The number of explorer frames that have been discarded by this port because the routing descriptor field contained an invalid adjacent segment value. dot1dSrPortDuplicateSegmentDiscards Counter Read-Only The number of frames that have been discarded by this port because the routing...
  • Page 64 Chapter 4: Bridge MIB dot1dTpFdbTable Not Accessible A table that contains information about unicast entries for which the bridge has forwarding and/or filtering information. This information is used by the transparent bridging function in determining how to propagate a received frame. A superset of this table’s information can be found by using Cabletron’s enterprise-specific Addresses Configuration Group.
  • Page 65 dot1dTpFdbStatus Integer Read-Only The status of this entry. The meanings of the values are other(1) none of the following. This would include the case where some other MIB object (not the corresponding instance of dot1dTpFdbPort, nor an entry in the dot1dStaticTable) is being used to determine if and how frames addressed to the value of the corresponding instance of dot1dTpFdbAddress are being forwarded.

  • Page 66: Static Database Group

    Chapter 4: Bridge MIB dot1dTpPortInFrames Counter Read-Only The number of frames that have been received by this port from its segment. Note that a frame received on the interface corresponding to this port is only counted by this object if and only if it is for a protocol being processed by the local bridging function.
  • Page 67 dot1dStaticEntry Not Accessible Filtering information configured into the bridge by (local or network) management specifying the set of ports to which frames received from a specific port and containing a specific destination address are allowed to be forwarded. The index for an entry is dot1dStaticAddress and dot1dStaticReceivePort. dot1dStaticAddress Octet String Read-Write The destination MAC address in a frame to which this entry’s filtering...
  • Page 68 Chapter 4: Bridge MIB dot1dStaticStatus Integer Read-Write This object indicates the status of this entry. Static entries are always permanent (3), and can only be deleted by setting dot1dStaticStatus to invalid (2). Values inclued: • other(1) - this entry is currently in use but the conditions under which it will remain so are different from each of the following values.

  • Page 69: Chapter 5 Ppp Mib

    The FN10 supports RFC 1471 for PPP link control and RFC 1473 for PPP IP support. The MIB tree for reaching the PPP group is: 1.3.6.1.2.1.10 5.1 PPP LINK CONTROL TABLE pppLCP pppLinkStatusTable Not-Accessible A table containing PPP-Link specific variables for this PPP implementation.
  • Page 70 Chapter 5: PPP MIB pppLinkStatusBadAddresses Counter Read-only The number of packets received with an incorrect address field. This counter is a component of the ifInErrors variable that is associated with the interface that represents this PPP Link. pppLinkStatusBadControls Counter Read-only The number of packets received on this link with an incorrect control field.
  • Page 71 pppLinkStatusRemoteMRU Integer Read-only The current value of the MRU for the remote PPP Entity. This value is the MRU that the local entity is using when sending packets to the remote PPP entity. The value of this object is meaningful only when the link has reached the open state (ifOperStatus is up).
  • Page 72 Chapter 5: PPP MIB pppLinkStatusLocalToRemoteACCompression Integer Read-only Indicates whether the local PPP entity will use Address and Control Compression when transmitting packets to the remote PPP entity. The value of this object is meaningful only when the link has reached the open state (ifOperStatus is up). •...
  • Page 73 pppLinkConfigEntry Not-Accessible Configuration information about a particular PPP Link. pppLinkConfigInitialMRU Integer Read-Write The initial Maximum Receive Unit (MRU) that the local PPP entity will advertise to the remote entity. If the value of this variable is 0 then the local PPP entity will not advertise any MRU to the remote entity and the default MRU will be assumed.
  • Page 74 PPP specification. Changes to this object take effect when the link is next restarted. • true (2) - FN10 will attempt to perform magic number negotiation • false (1) - will not attempt to perform Magic Number negotiation pppLinkConfigFcsSize...
  • Page 75 The value of the InLQRs counter on the local node for the link identified by ifIndex. pppLqrConfigTable Not-Accessible Table containing the LQR configuration parameters for the local PPP entity. The FN10 always has an empty table. pppLqrConfigEntry Not-Accessible LQR configuration information for a particular PPP link. pppLqrConfigPeriod...
  • Page 76 Not-Accessible Table containing additional LQR information for the local PPP entity. The FN10 always has an empty table. pppLqrExtnsEntry Not-Accessible Extended LQR information for a particular PPP Link. Assuming that this group has been implemented, a PPP Link will have an entry in this table if and only if LQR Quality Monitoring has been successfully negotiated for the specified link.

  • Page 77: Ppp Ip Table

    (1) - no IP compression protocol supported. • vj-tcp(2) - the Van Jacobsen TCP/IP header compression protocol is supported. The FN10 does not support protocol compression. pppIpRemoteToLocalCompressionProtocol Integer Read-only The IP compression protocol that the remote PPP-IP entity uses when sending packets to the local PPP-IP entity.
  • Page 78 (1) will inject an administrative open event into the IP network protocol’s finite state machine. Setting this object to close (2) will inject an administrative close event into the IP network protocol’s finite state machine. The FN10 only supports open (1).

  • Page 79: Chapter 6 Cabletron Mib

    FN10 may use different values (3, 4, or 5). sysReset Time Ticks Read-Write The time, in centiseconds, before the FN10 should reboot. A GetResponse value of zero indicates that no reboot time has been specified. sysTrapAck Boolean Read-Write Reserved.

  • Page 80: Es-1Xe Group

    Zero, or the UDP port number to which a second copy of SNMP traps should be sent. Valid values are 0 through 65535. 6.2 ES-1XE GROUP es-1xe This subtree holds all of the information for the FN10. These attributes are sheltered within a single tree in an attempt to avoid future compatibility problems. 6.2.1 Hardware Configuration Group...
  • Page 81 Table 6-1 NAM Processor Error Codes NAM Code 0002 0001 0001 0002 0001 0002 0002 0001 0003 0002 0001 0004 0002 0001 0010 0002 0001 0011 0002 0002 0001 0002 0002 0002 0002 0002 0003 0002 0002 0004 0002 0002 0010 0002 0002 0011 0004 0003 0001 0004 0006 0001...
  • Page 82 Chapter 6: Cabletron MIB Table 6-1 NAM Processor Error Codes NAM Code 0002 0001 0001 0002 0001 0002 0010 0005 0004 0020 0004 0001 0020 000E 0002 0700 xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx...
  • Page 83 Table 6-1 NAM Processor Error Codes NAM Code 0002 0001 0001 0002 0001 0002 xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx...
  • Page 84 Chapter 6: Cabletron MIB Table 6-1 NAM Processor Error Codes NAM Code 0002 0001 0001 0002 0001 0002 xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx...
  • Page 85 sxhwPortTable Not Accessible A table that includes information for each port. sxhwPortEntry Not Accessible An entry for an individual port, keyed by sxhwPortIndex. sxhwPortIndex Integer Read-Only The port number. The value is from 1 to 25. sxhwPortType Integer Read-Only A value indicating the type of port. The values are defined as: •...

  • Page 86: Software Configuration Group

    Not Accessible A list of the software file sets stored in the FN10. The first file set refers to the file set that was used when the FN10 last booted. The second file set refers to the file set that will be used when the FN10 reboots.
  • Page 87 The types of files within the file set. The size of sxswType may be determined by sxswCount, since 1 octet is required for each file. The possible file types are: • file-nam (1) - the operational software for the FN10’s NAM processor • file-be (2) - the operational software for the Bridge Engine •...

  • Page 88: Administration Group

    Administration Group sxadmin This group contains the attributes for configuring the system level control of the entire FN10 and the overall FN10 status. sxadminFatalErr Octet String Read-Only This is a 32 byte array which contains information about the cause of the previous system reset.
  • Page 89 Integer Read-Only Whether the FN10’s storage facility for its configuration parameters has failed during the last update operation (if the FN10 reboots after such a failure, it will use the factory specified defaults for all MIB parameters). Values include: •...
  • Page 90 Chapter 6: Cabletron MIB sxadminStatsExtended Integer Read-Write Whether the FN10 should accumulate extended statistics. Extended statistics are tallies, such as byte counts, which are not essential for everyday FN10 management, and which may have a slightly detrimental effect on performance. Values include: •...
  • Page 91 Integer Read-Write The configuration file that will be used when the FN10 reboots. This parameter is normally set by the FN10 automatically; however, an NMS may explicitly set it to either no-change (1) or revert-to-defaults (3). The possible values include: •...
  • Page 92 • temperature-normal (1) • temperature-too-hot (2) sxadminDisableButton Integer Read-Write An integer that can be set to prevent the push button on the front of the FN10 from controlling the LED display. Values include: • true (1) • false (2) sxadminButtonSelection Integer Read-Write An integer that indicates which statistic has been selected.

  • Page 93: Software Distribution Group

    Software Distribution Group sxswdis This attribute group provides the means by which the NMS may monitor and/or control the TFTP requests to download a new set of software to the FN10. sxswdisDesc Octet String Read-Only The description (1 to 255 characters) of the software set currently being downloaded, or a description of the software set last downloaded since the FN10 booted.
  • Page 94 The IP address of the NMS (i.e., any IP host) that is allowed to use TFTP to send/ retrieve the configuration file of the FN10. A value of 0.0.0.0 (which is the factory specified default) prevents any NMS from obtaining access, while a value of 255.255.255.255 gives every NMS permission.

  • Page 95: Addresses Configuration Group

    Integer Read-Write The number of seconds that the FN10 will wait for an acknowledgment to a data block before it cancels a TFTP session. The factory specified default is 25 seconds. 6.2.5 Addresses Configuration Group sxaddr This attribute group allows the NMS to examine the current address table entries, as well as to remove both static and learned entry information, or to add and modify pre-defined entry information (modifying certain entry information may...
  • Page 96 Step 2. Set sxaddrFlags with either entry-static or entry-none. Either or both of entry-no-source and entry-no-multi may be set. The entry will be deleted (if there is no learned information) when the FN10 is told to set addrOperation to “update”, unless any of the following is true: entry-static is set, entry-no-source is set, entry-no-multi is set.
  • Page 97 NMS should read all of the dynamically learned addresses from all bridges, and use the spanning tree states of the bridges’ ports to determine the devices actual locations. To read all of a FN10’s dynamically learned addresses, the NMS must use the dot1d MIB or perform the following steps: Step 1.
  • Page 98 IEEE Spanning Tree static address • entry-other = 27, if set then this is a pre-defined internal address, such as the MAC address of one of the FN10’s ports, and exactly one of the special entry bits (defined below) must be set •...
  • Page 99 MAC Address Read-Write The MAC address for this address definition. sxaddrPort Integer Write-Ignore The port through which this address is connected to the FN10 (only valid for entry-dynamic-local and entry-port entries). Fast Network 10 MIB Reference Guide Es-1xe Group {sxaddr 6}...
  • Page 100 MAC Address Write-Ignore Contains the time since a packet was last transmitted to the address. These statistics are only updated if the FN10 has been configured to gather extended statistics (sxadminStatsExtended). Page 6-22 Fast Network 10 MIB Reference Guide...
  • Page 101 The number of characters in the packets transmitted to the address (can be zeroed by zero-stats). These statistics are only updated if the FN10 has been configured to gather extended statistics (sxadminStatsExtended). These statistics are only updated if the FN10 has been configured to gather extended statistics (sxadminStatsExtended).

  • Page 102: Cabletron Interfaces Group

    Chapter 6: Cabletron MIB sxaddrBlockSize Integer Write-Ignore The number of addresses contained by sxaddrBlock, defined below. This parameter is only used for dumping blocks of MAC addresses. sxaddrBlock Octet String Write-Ignore A series of 0-700 octets, which represents 0-100 addresses. Each address consists of a 6 octet MAC Address followed by a 1 byte port number.
  • Page 103 sxifRxCnt Integer Read-Only The number of data buffers for receiving packets. This value is the same for all Ethernet ports. sxifTxCnt Integer Read-Only The maximum size of the port’s transmit queue, i.e., the number of packets that can be in the port’s transmit queue, waiting to be transmitted. sxifThreshold Integer Read-Write Reserved.
  • Page 104 Time Ticks Read-Write When a port becomes congested, the FN10 will discard any packets destined to the port for this many centiseconds following the congestion alarm. Possible values are 0 through 5 minutes, except for port 25 (the out-of-band management port) which is always 0.
  • Page 105 sxifQueueTime Time Ticks Read-Write The time, in centiseconds, after which an element in a transmit queue will be flushed. sxifFunction Integer Read-Only The current functional state (protocols which have been activated and are operational) of the port. The following values or combinations thereof are supported: 0x0001 NMS - the port may be used for communicating with the NMS (see...
  • Page 106 Chapter 6: Cabletron MIB • DEST_BBRIDGE = 5, a bridge management broadcast packet (either an ARP to the FN10 or an ARP created by the FN10) • DEST_BROADCAST = 6, a received broadcast packet (other than an ARP to the FN10 itself) •...
  • Page 107 sxifLan1 Integer Read-Write A group identifier assigned to the port. The sxsifLan identifier is only used by combination filter testing, i.e., for comparisons against sxfilterSrcLan. Possible values are 0 through 255. sxifLan2 Integer Read-Write A group identifier assigned to the port. The sxsifLan identifier is only used by combination filter testing, i.e., for comparisons against sxfilterSrcLan.

  • Page 108: Cabletron Dot3 Group

    Chapter 6: Cabletron MIB sxifIpAddr IP Address Read-Write The IP address assigned to the port. If this is zero, then the port must learn its IP address via Reverse ARP or PPP’s IPCP. sxifIpGroupAddr IP Address Read-Write Zero, or an IP group address assigned to the port. sxifForwardedChars Counter Read-Only Number of characters in the forwarded received packets.
  • Page 109 sxdot3TPLinkOK Integer Read-Only An integer that indicates if the port’s 10Base-T link is okay. It also indicates if the port’s Link LED is on. Values include: • true (1) • false (2) sxdot3LedOn Integer Read-Only An integer indicating whether the port’s programmable LED is on. Values include: •...

  • Page 110: Cabletron Uart Interface Group

    This group contains the Cabletron specific characteristics for UART interfaces. These statistics are only updated if the FN10 has been configured to gather extended statistics (sxadminStatsExtended). These statistics are only updated if the FN10 has been configured to gather extended statistics (sxadminStatsExtended).
  • Page 111 A set of objects for an interface entry. The individual components are described below. sxuartIndex Integer Read-Only The FN10’s port number of the port. This is always 25. sxuartBaud Integer Read-Write This is the desired baud rate. Only 1200 baud through 19,200 baud are supported by the FN10, but the complete set of possibilities is: •...

  • Page 112: Filter Group

    This attribute group provides the mechanism by which the NMS may create, modify, or delete the FN10’s combination filters. A combination filter consists of many tests that are simultaneously applied to a packet, to determine if the packet should be filtered. Several combination filters may exist. Each combination filter (i.e., each set of tests) is used sequentially, and the packet is filtered if any of the...
  • Page 113 filters.] Step 5. Set the sxfilterAddID field to contain the next available filter ID. Once the FN10 receives this SetRequest, the FN10 renumbers all of the filters, thereby invalidating the NMS’s combination filters information.
  • Page 114 Integer Read-Write A filter identifier used for deleting filters. After the NMS sets this field, the FN10 deletes the sxfilterEntry that has a matching filter ID field, and resets this field to zero. The FN10 then updates sxfilterCurrentCount, sxfilterNextID, and the entire sxfilterTable.
  • Page 115 A set of flag bits which control the operation of the filter. Filters will not prevent packets from being accepted by the FN10 as a final destination (e.g., for NMS packets being used to control the FN10). The following bits are used: •...
  • Page 116 11 used for determining if a filter would have been applied if set, this filter should not be used for the forwarding/filtering decision mak- ing; however, the FN10 must determine if a packet would have been filtered if the filter were to have been used (and sxfilterPktCnts must be updated) •...
  • Page 117 • bits 1-0, used for sxfilterField, sxfilterOffset, and sxfilterMask bit 1, if set filter if match bit 0, if set filter if not-match sxfilterFrame Integer Read-Write Ethernet protocol type (1501-65535). Values include: • any-11c (1) – indicates any 802 frame •...
  • Page 118 Chapter 6: Cabletron MIB sxfilterSrcLan Integer Read-Write Either the port number from which the packet is received, or the value of any one of the group identifiers defined by sxsifLan1, sxsifLan2, sxsifLan3, or sxsifLan4 for that port. sxfilterOffset Integer Read-Write Zero-based offset of an arbitrary field within the packet.

  • Page 119: Debug Command Group

    The total number of packets which were discarded due to this filter. Under some circumstances when packets are not forwarded (e.g., local traffic, or packets that are addressed to the FN10 itself as the final destination), sxfilterPktsCnts is not necessarily incremented when the filtering criteria agrees with the packet’s contents.
  • Page 120 Step 4. Set sxdebugOperation with the modify (2) value. All of the above “sets” must be performed in a single SetRequest PDU, with sxdebugOperation being the last parameter. This will cause the FN10 to modify the desired memory locations, update the sxdebugLength parameter, and return the updated parameter in the GetResponse PDU.
  • Page 121 A series of 0-64 octets, which represents 0-16 words (this may change in the future, if the FN10 has processors with word sizes of other than 4 bytes per word). When this variable is read, the FN10 uses the values in sxdebugBase and sxdebugLength to return the contents of a specified memory range to the NMS.

  • Page 122: Loopback Command Group

    In remote loopback, the port is in normal operation, sending/receiving normal packets. In addition, the FN10 generates loopback packets to be sent out the port to a particular destination device on the port’s network. That destination device echoes the packet back onto the network, which the port then receives.
  • Page 123 The type of loopback being performed. Setting sxlpbkOperation to loopback-off causes loop back operation to terminate. Setting sxlpbkOperation to loopback-local or loopback-remote causes loopback operation to commence, and the FN10 automatically resets sxlpbkOperation to loopback-off when the loopback operation has completed. Possible values •...
  • Page 124 Integer Read-Write The number of bytes of data to be added to the loopback packet after each successful loopback packet transmission and reception. When the port’s maximum packet size has been reached, the FN10 automatically begins again, starting with sxlpbkPktLength. sxlpbkGoods Counter Read-Only The number of packets successfully looped back.

  • Page 125: Cabletron Protocol Group

    This table contains configuration information specifying the types of protocols used for each port. sxprotoEntry Not Accessible Each entry in this table specifies which protocols are used by a particular port in the FN10. Fast Network 10 MIB Reference Guide Es-1xe Group {sxlpbkEntry 11} {sxlpbkEntry 12}...
  • Page 126 (2) – these packets are not transmitted. This option may be useful for interoperability with non-802.1d spanning tree protocols. sxprotoRipListen Integer Read-Write Specifies whether the port should listen for RIP packets so the FN10 can build a routing table to communicate with an NMS. Values include: • enabled (1) •...

  • Page 127: Cabletron Trunking Group

    • closed (2) – this link has not yet received any PDUs • oneway (3) – incoming trunking PDUs do not indicate that the FN10’s PDUs are being successfully received by the far end • joined (4) – this link is actively participating in the trunk group •...
  • Page 128 (8) – errors are preventing stabilization, and the trunking protocol will re-start. • self-connect (9) – this port is connected to another port on the same FN10 and cannot be used until this condition clears. • port-moved (10) – a different port has been connected at the far end, and the trunking protocol will re-start.

  • Page 129: Cabletron Trap Management Group

    6.2.14 Cabletron Trap Management Group sxtrap This group presents the Cabletron MIB variables that are included as varbinds with the traps generated by the FN10. Chapter 7 of this manual describes the traps generated by the FN10. sxtrapControlTable Not Accessible This table contains information about the severity of each trap and whether the trap is currently enabled.
  • Page 130 Chapter 6: Cabletron MIB sxtrapSeverity Integer Read-Write A user-definable severity indicating the importance of the trap. The severity levels are defined as follows: • informational (1) • warning (2) • minor (3) • major (4) • critical (5) sxtrapText Display String Read-Only Provides a description of the trap.
  • Page 131 sxtrapSeverityEnable Integer Read-Write Allows you to enable or disable all traps of a given security level. The values are as follows: • enabled (1) • disabled (2) sxtrapIncludeText Integer Read-Write Indicates whether or not a formatted text string is included in the trap PDU. Values include: •...
  • Page 132 Chapter 6: Cabletron MIB sxtrapEntry Not Accessible The sequence of elements in the sxtrapControlTable 1 are shown below. sxtrapEntryIndex Integer Read-Only A number representing the order (in time) in which the trap occurred. This 32 bit number can wrap. sxtrapEntryTimeStamp Time Ticks Read-Only The time the trap occurred.

  • Page 133: Chapter 7 Traps

    The “variable-bindings” portion of the trap contains the ifIndex of the port. linkUp (3) - A port has come back to life, and the FN10's local management agent has re-enabled usage of the port. The “variable-bindings” portion of the trap contains the ifIndex of the port.

  • Page 134: Fn10 Traps

    Chapter 7: Traps 7.2 FN10 TRAPS This section lists the enterprise-specific traps that can be generated by the FN10. FN10 traps contain enterprise-specific variables that are defined in the system group of the Cabletron MIB in chapter 6 of this manual.
  • Page 135 (9) - Send whenever the unit has finished a loop back test, or a loop back error has been detected. Cabletron MIB variables include: • sxTrapSeverity • sxlpbkOperation • sxlpbkErrorNoReceives • sxlpbkErrorBadReceives Fast Network 10 MIB Reference Guide FN10 Traps Page 7-3...
  • Page 136 Chapter 7: Traps trunkStateTrap (10) - A trunking state change transition has occurred. The possible transitions are: • CLOSED-ONEWAY • ONEWAY-PERTURBED • PERTURBED-JOINED • JOINED-HELDDOWN • CLOSED-HELDDOWN • ONEWAY-HELDDOWN • PERTURBED-HELDDOWN Cabletron MIB variables include: • sxTrapSeverity • sxtrunkState trunkBridgeAddrTrap (11) - The associated trunking MAC address of the remote bridge ID has changed.
  • Page 137 PortCongestedTrap (18) - Sent whenever outbound congestion control has been invoked for the port. Cabletron MIB variables include: • sxTrapSeverity • ifOutDiscards TopChangeBegunTrap (19) - The spanning tree topology has begun to change. Cabletron MIB variables include: • sxTrapSeverity Fast Network 10 MIB Reference Guide FN10 Traps Page 7-5...
  • Page 138 Chapter 7: Traps TopChangeEndTrap (20) - The spanning tree topology has stopped changing. Cabletron MIB variables include: • sxTrapSeverity ifErrorsTrap (21) - Sent whenever the number of hardware errors in received and transmitted packets has exceeded the port’s limit. Cabletron MIB variables include: •...
  • Page 139 (31) - The port ID of the spanning tree designated port of the LAN to which the port is attached has changed. Cabletron MIB variables include: • sxTrapSeverity Fast Network 10 MIB Reference Guide FN10 Traps Page 7-7...
  • Page 140 Chapter 7: Traps stPortStateTrap (32) - The spanning tree state of the port has changed. Cabletron MIB variables include: • sxTrapSeverity • dot1dStpPortState sxhwDiagTrap (100) - Sent whenever the unit’s diagnostics have indicated an error. Cabletron MIB variables include: • sxTrapSeverity •...
  • Page 141 PACKET HEADER DIAGRAMS When you are setting up filters, if you choose to use the Offset field, it’s helpful to know the header packet formats. Diagrams of the IP, UDP, and TCP headers are provided here for your reference. header service type version length...
  • Page 142 Appendix A: Packet Header Diagrams destination port source port sequence number acknowledgment number header reserved plus window length code bits padding options (if any)... (if necessary) Figure A-3 TCP Header (After IP Header) Page A-2 Fast Network 10 MIB Reference Guide...
