Lucent Technologies DEFINITY ProLogix Solutions Overview page 178

10
1
2
8
2
1
1) DEFINITY ProLogix Solutions or
another DEFINITY ECS
2) Signaling via TCP/IP
3) Voice data
4) Signaling via ISDN-PRI
5) DEFINITY ECS gateway with DCS
using TCP/IP, BX.25, and ISDN-PRI
DEFINITY ProLogix Solutions Release 2 Overview 555-235-100
Adding DEFINITY ProLogix Solutions to Existing DCS Networks

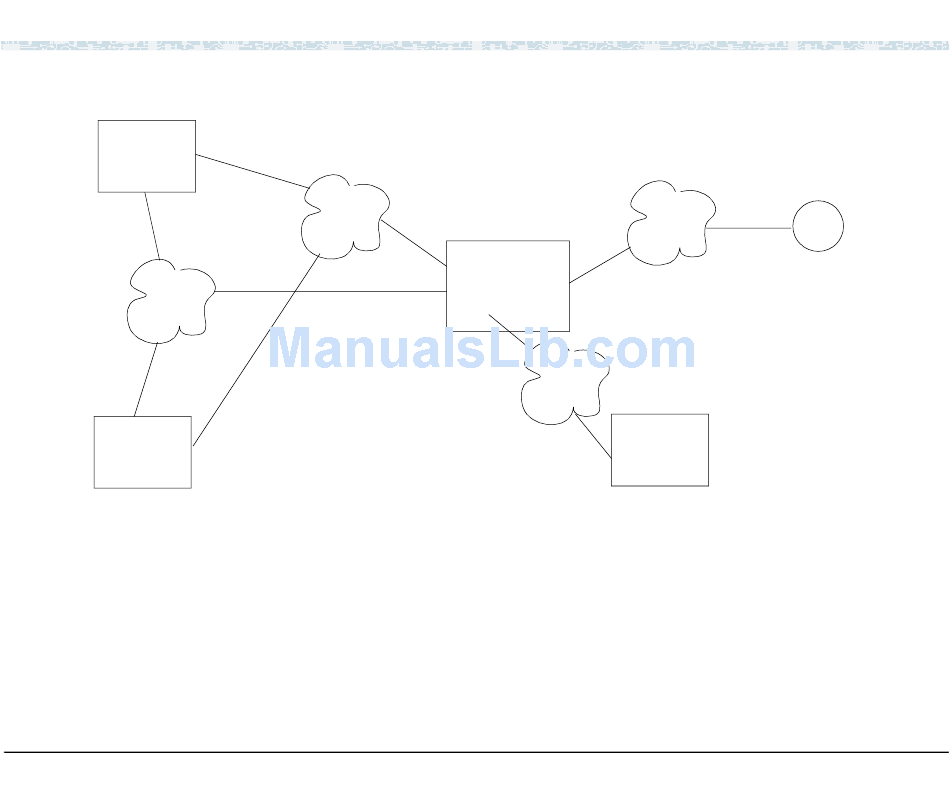

Figure 6. DCS Network with TCP/IP, ISDN-PRI, and BX.25 Signaling
3
10
2
3
10
5
9
4
1
6) Existing DCS BX.25 Network
7) Signaling via BX.25
8) LAN, WAN, Internet
9) In-house wiring, or Public (SDN) or Private
Network (point to point)
10) In-house wiring or Private Network (point to point)
7
6
Issue 2 June 1999 10-6
